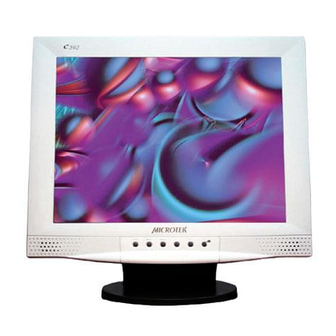

- Page 1 All manuals and user guides at all-guides.com C593 15” LCD MONITOR USER’S MANUAL...
- Page 2 All manuals and user guides at all-guides.com Installing The Monitor Follow these steps to install the monitor, Before you connect the cables,make sure that the monitor and the system unit power switches are OFF. Please follow the following drawing to remove the plastic back over in order to connect the signal cable and power cable.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Content Operating Instructions ................iv Safety Precautions ................... v Care and Maintenance ................vi Control Functions ..................1 Adjustment Procedure ................2 Auto-Adjustment ................2 RGB Adjustment ................3 Contrast Value Adjustment ............3 Color Balance ................ -
Page 4: Operating Instructions
All manuals and user guides at all-guides.com Operating Instructions Thank you for purchasing this high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Safety Precautions
All manuals and user guides at all-guides.com Safety Precautions This monitor is manufactured and tested on the ground principle that a user’s safety comes first. However, improper use or installation may not only damage the monitor but endanger the user as well. As a safety precaution, go over the following WARNINGS carefully before installation, and keep this guide handy. -
Page 6: Care And Maintenance
All manuals and user guides at all-guides.com Care and Maintenance Care • Avoid exposing your monitor directly to sunlight or other heat sources. Place your monitor away from the sun to reduce glare. • Put your monitor in a well-ventilated area. Do not place anything heavy on top of your monitor. -
Page 7: Control Functions
All manuals and user guides at all-guides.com Control Functions The Monitor control functions are located on the lower center portion of the front panel. These are shown in the figure below and described in the following paragraphs. : Power switch Use the power switch to turn power ON or OFF. -
Page 8: Adjustment Procedure
All manuals and user guides at all-guides.com Adjustment Procedure Press the Menu key to activate the OSD screen. The screen below will appear. Note: Perform the procedure above whenever you need to change a setting. For the succeeding sections, this step will not be included, and users will be presumed to have performed the procedure. -
Page 9: Rgb Adjustment
All manuals and user guides at all-guides.com RGB Adjustment Use the selection key to select the icon, then press - or +. The screen below will appear. 1024X768 75 Hz/60 KHz Auto-Balance CONTRAST GREEN BLUE BALANCE GREEN BLUE VERSION XGAD9B11-5100 Contrast Value Adjustment Use the selection key to select the CONTRAST field, then press - &... -
Page 10: Geometry Adjustment
All manuals and user guides at all-guides.com Geometry Adjustment Use the selection key to select the icon, then press - & +. The screen below will appear. 1024X768 75 Hz/60 KHz 1344 PHASE VERSION XGAD9B11-5100 If you need to go back to the previous OSD menu screen, press the MENU key. -
Page 11: Multilanguage Support
All manuals and user guides at all-guides.com Multi-language support You can select five OSD languages for your convenience. 1024X768 75 Hz/60 KHz English German French Italian Spanish VERSION XGAD9B11-5100 DOS Txt/GFX You can select display mode as 640 x 400 (graphic mode) or 720 x 400 (text mode). -
Page 12: General Specifications
All manuals and user guides at all-guides.com General Specifications 15.0 " XGA Color TFT LCD type: Input Signal: Analog (0.7Vp-p/75 ohm positive) Screen area: 304.1 mm x 228.1 mm Dot Pitch: 0.297 mm Scanning frequency: (H) 31.46 KHz-60 KHz , (V) 60 Hz-75 Hz Resolution: 1024 x 768 Refresh Rate:... -
Page 13: General Performance
All manuals and user guides at all-guides.com General Performance Preset timing is shown as follows: Resolution H/V Frequency CLK count of H period 640 x 480 60Hz/31.47KHz 640 x 480 72Hz/37.86KHz 640 x 480 75Hz/37.5KHz 800 x 600 56.3Hz/35.16KHz 1024 800 x 600 60.3Hz/37.88Khz 1056...
