Connecting AC Power

Please refer to the following instructions for connecting the AC
power to the LCD Monitor.
1. Plug the female end of the power cable into the AC-adapter.
Plug the male end of the power cord into a wall socket. The
plug on the power cable will vary according to the electrical
standard in your area. Please refer to Figure 1-4 .

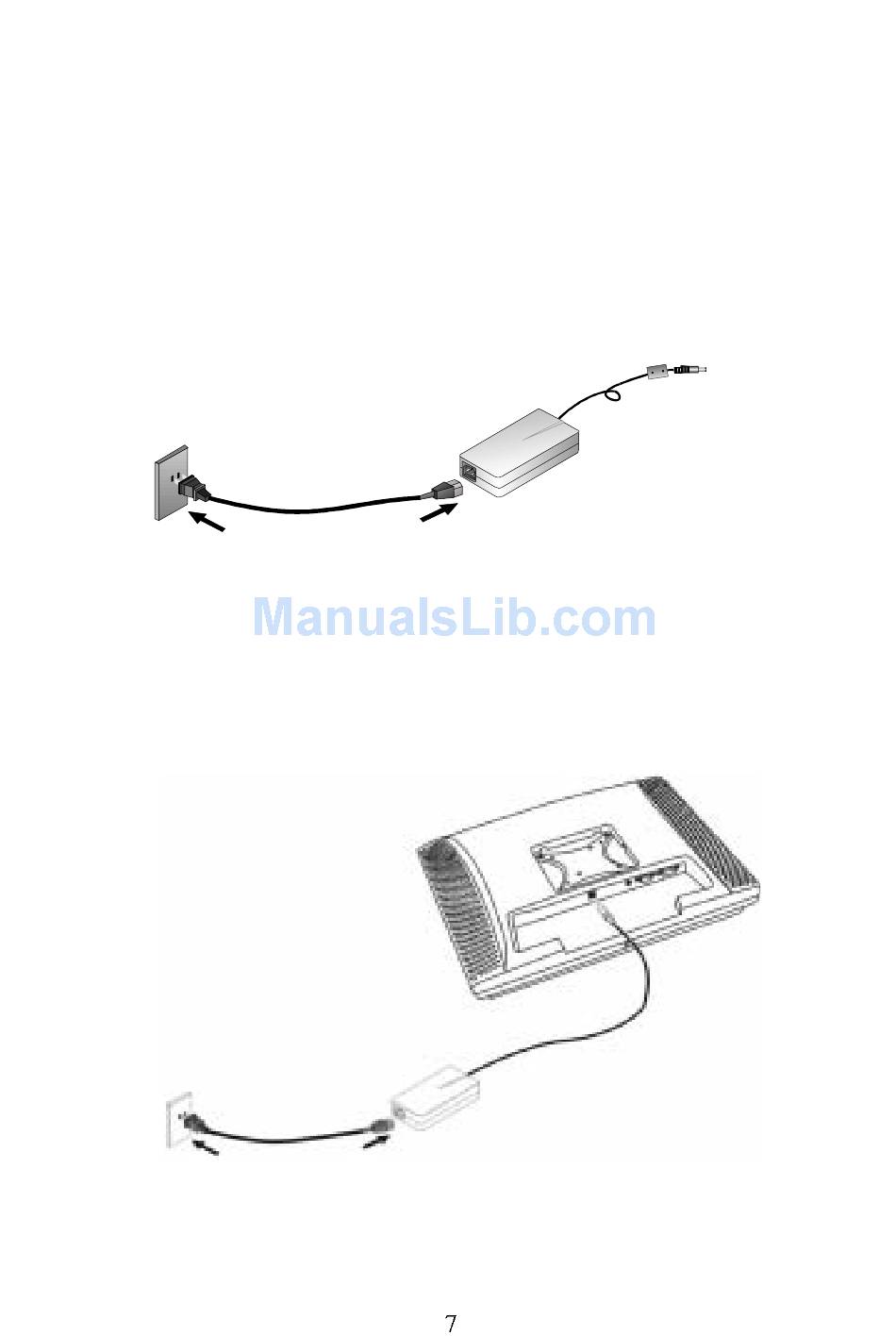

Figure 1-5: The AC Adapter
2. Connect the power connector of the adapter into the jack of
the LCD Monitor. The DC power jack is located at the rear of
the Monitor near the USB Hub connector. Please refer to
Figure 1-5 .
Figure 1-6: Connecting Power to the LCD Monitor
