Connecting Video

l
Turn off your PC and the LCD Monitor before connecting your LCD monitor
to the PC.
l
Use the built-in 1.8M-signal cables to connect your LCD Monitor with PC.
l
Connect the other end of the signal cable to the PC's VGA port.
l
Make sure the signal cable head is securely connected to the PC's VGA port.
Then tighten the connecting screws to ensure a secure connection.
l
Turn on your computer.
l
Turn on your LCD Monitor.

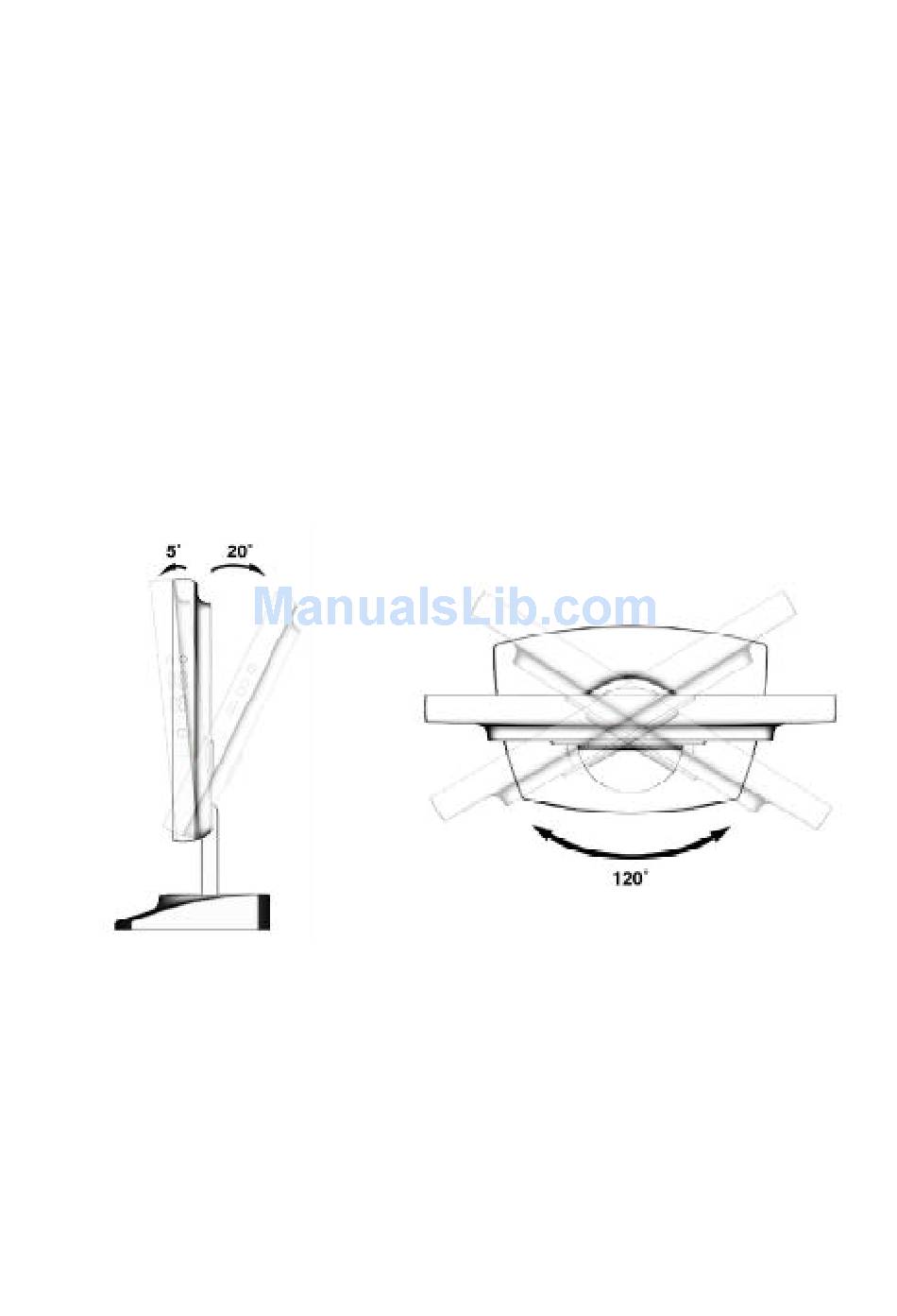

Adjusting the Viewing Angle

Your LCD Monitor was designed to allow you to adjust it to an optimal viewing angle.
You can adjust the monitor upward to 20 degrees and downward to –5 degrees.
This monitor was also designed to adjust 120 degree horizontally via swievel function.
NOTE
Do not touch the screen while changing the viewing angle, as it may damage the
screen. Pay attention not to catch your figuers while changing the viewing angle.
1 0
