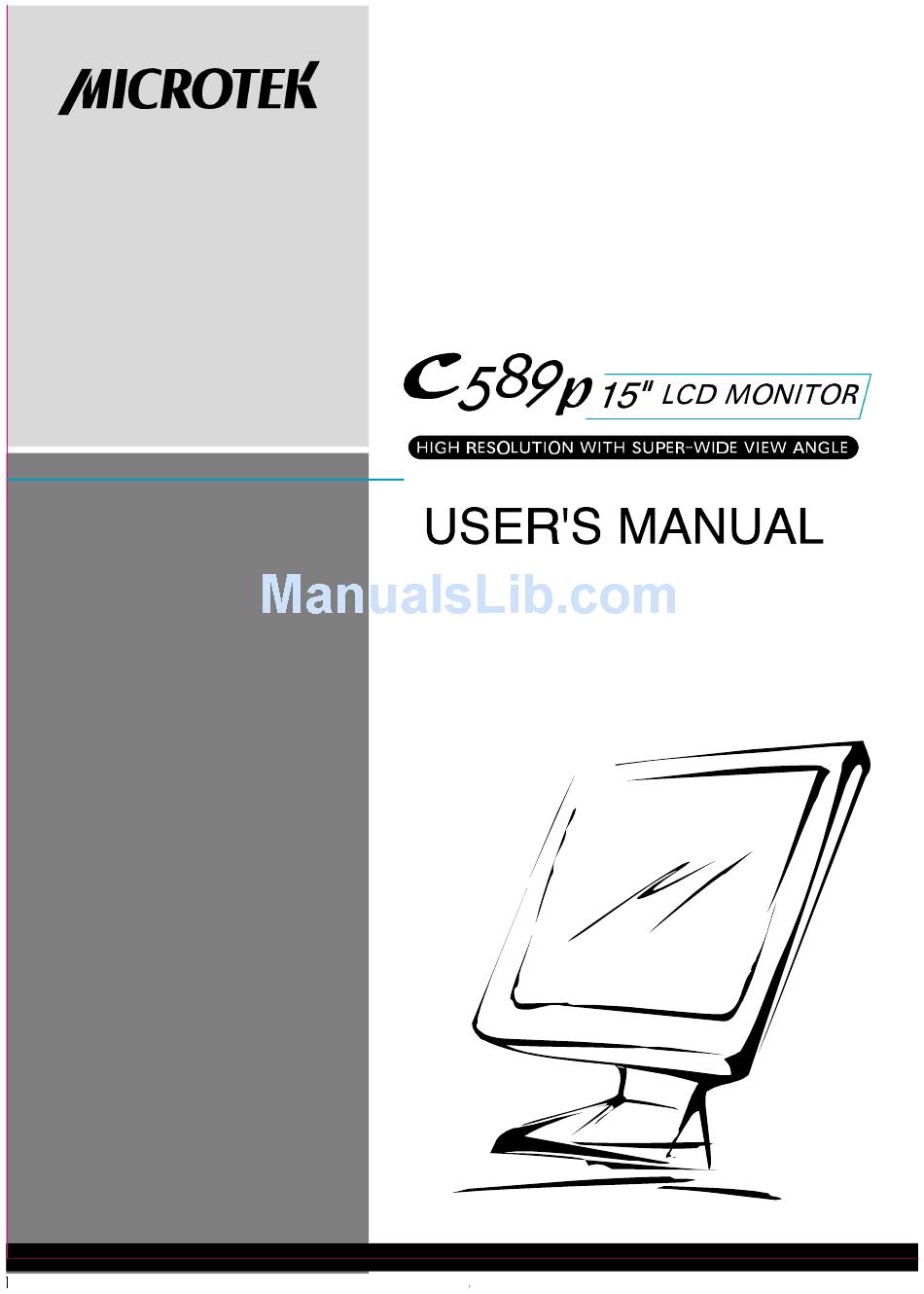

Summary of Contents for Microtek C589P
-
Page 2: Table Of Contents
CONTENT Operating Instructions................ 1 Safety Precautions................3 Care and Maintenance................. 4 Getting Start..................5 Description of Controls..............7 Connecting Your Monitor to PC............9 Operating The Monitor..............11 Specifications ..................16 Power Management................18 Troubleshooting Procedures.............. 219-20-990077... -
Page 3: Operating Instructions
Operating Instructions Thank you for purchasing this high-resolution multiscan color monitor. Please read this guide thoroughly before installation. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. -
Page 4: Energy Star
Class BITE (Following European standard EN 50082-2) Radio Frequency Interference Statement Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Canadian Doc Notice For Class B Computing Devices This digital apparatus does not exceed the Class B limits for radio noise emissions from... -
Page 5: Safety Precautions
Safety Precautions This monitor is manufactured and tested on the ground principle that a user’s safety comes first. However, improper use or installation may not only damage the monitor but endanger the user as well. As a safety precaution, go over the following WARN- INGS carefully before installation, and keep this guide handy. -
Page 6: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat sources. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place anything heavy on top of your monitor. -
Page 7: Getting Start
Getting Start Introduction Brilliant and sharp images of text and graphics — that’s what this LCD color monitor offers. This LCD monitor features user-friendly OSD controls. This LCD monitor provides a maximum resolution of 1024 x 768 pixels with a flicker-free display at up to 75Hz refresh rates, which offers the ultimate comfort to your eyes. -
Page 8: Unpacking And Checking The Package Contents
Unpacking and Checking the Package Contents Before unpacking your LCD Monitor, prepare a suitable workspace for your LCD Moni- tor and computer. You need a stable, level and clean surface near a wall outlet. After unpacking your LCD Monitor, make sure that the accessories shown in the packing list are included in the package. -
Page 9: Description Of Controls
Description of Controls Stand the monitor up and remove the back cover from your monitor (pull from the bottom of cover outward to open it) for further installation with your PC system. - Page 10 Signal cable Connect with PC Video card DC Jack Plug into the AC power adapter. Audio in (optional) Connect with your audio device. Audio out (optional) Connect with speakers built-in monitor base. OSD OUT Button Exit the OSD(On Screen Display). Arrow key Press to bring up the On Screen Display and select main menu items.
-
Page 11: Connecting Your Monitor To Pc
Connecting Your Monitor to the PC Connecting AC Power Please refer to the following instructions for connecting AC power to the LCD Monitor. Remove the back cover from your monitor (pull from the bottom of cover outward to open it). Plug the female end of the 1.8m power cord into the AC adapter then plug the DC connector of the adapter to your monitor’s DC jack (the DC jack is lo- cated at the rear side of your monitor) -
Page 12: Connecting Video
Connecting Video Turn off your PC and the LCD Monitor before connecting your LCD monitor to the PC. Use the built-in 1.8M-signal cables to connect your LCD Monitor with PC. Connect the other end of the signal cable to the PC’s VGA port. Make sure the signal cable head is securely connected to the PC’s VGA port. -
Page 13: Operating The Monitor
Operating the Monitor The LCD monitor has been preset at the factory with the Timing to create the optimal picture. You are also able to adjust the picture as you like by following operation. Before you operate your monitor, please take a look at the definition of each function key. How to Use the OSD (On Screen Display) OSD functions enable you to easily adjust the display to reach the quality you like. -
Page 14: Menu Table
Menu Table Main Menu Function Name After pressing “+” and “-“ buttons BRIGHTNESS The brightness is adjusted. CONTRAST The contrast is adjusted. BLACK LEVEL The level of the black portion is adjusted. The screen is expanded or shrunk in the left and CLOCK right direction. - Page 15 Adjusting screen display There are two ways to adjust the monitor’s screen, i.e. auto adjustment and manual adjustment. Auto adjustment a) Power ON the LCD monitor and computer. b) Select the “AUTO SETUP” of OSD screens. c) Press “+” button while displaying “AUTO SETUP” screen. d) The auto adjustment is started.
- Page 16 Manual adjustment a) Power ON the LCD monitor and computer. b) Adjust according to the above-mentioned “Operating Procedure” and “Menu Table” to adjust the screen to a favorable screen display. OSD Adjustment Lock This function is used to prevent changing the adjusted status by mistake. All the adjustable items except “BRIGHTNESS”...
- Page 17 d)Volume control: Press “+” and “-“ button to up/down audio volume...
-
Page 18: Specifications
Specifications Active matrix TFT Driving system Diagonal: 15.0” Size LCD panel 0.297mm(H)x 0.297mm(V) Pixel pitch 1024 x 768 pixels Resolution 120 (Typ.) Viewing angle (R+L) 100 (Typ.) Viewing angle(U+D) Tr: 7 ms (Typ.) , Tf: 23 ms(Typ) Max. Response time 250 cd/m Brightness 300:1... -
Page 19: Supported Timing
Supported Timing The monitor supports 14 kinds of timing. Display Mode Horizontal Vertical Frequency Frequency 31.5 KHz 60 Hz 37.5 KHz 75 Hz VGA 640 x 480 31.5 KHz 70.1 Hz 720 x 400 35.1 KHz 56.3 Hz SVGA 800 x 600 37.9 KHz 60.3 Hz VESA... -
Page 20: Power Management
Power Management The LCD Monitor complies with the VESA DPMS (version 1.0p) power management proposal. The VESA DPMS proposal provides four phases of power-saving modes by detecting the horizontal or vertical sync signal. Display Item DPMS Power Power Recovery H-sync Y-sync Mode Consumption... -
Page 21: Troubleshooting Procedures
Troubleshooting Procedures If the LCD monitor fails to function correctly, please follow the following steps for possible troubleshooting. Perform the adjustments according to Operating the Monitor.. Refer to the following items if you cannot find a proper item listed in the Operating the Monitor or if the problem remains. - Page 22 The signal cable is properly connected. Display is not The signal timing of the computer is within the specs. synchronized. The video output level of the computer is within the specs. While the “ATTENTION” message is displayed on the screen: It can be classified into two categories, i.e, Power Management is set to OFF and Power Management is set to ON.
