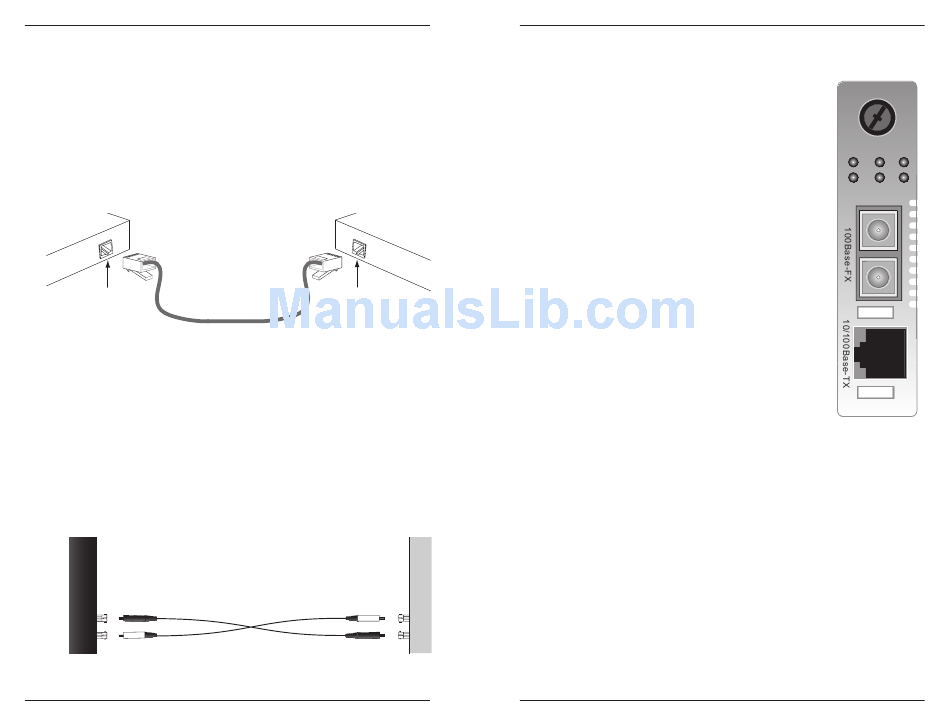

Install the Twisted-Pair Copper Cable

1. Locate or build IEEE 803.2
™
with straight-through RJ-45 cable, and with straight-through RJ-45 connectors
installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port
connector on the media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port
connector on the other device (switch, workstation, etc.).
NOTE: The MDI (straight-through) or MDI-X (crossover) cable connection is
configured automatically, according to the network conditions.
RJ-45 port
on the media
converter

Install the Fiber Cable

1. Locate or build IEEE 803.2
™
two-stranded TX to RX connectors installed at both ends.
2. Connect the fiber cables to the CBFTF10xx-15x media converter as described:
• Connect the male TX cable connector to the female TX connector.
• Connect the male RX cable connector to the female RX connector.
3. Connect the fiber cables to the other device (media converter, hub, etc.) as
described:
• Connect the male TX cable connector to the female RX connector.
• Connect the male RX cable connector to the female TX connector.
Connect the fiber cable
to the media converter
as shown.
RX
TX
4
24-hour Technical Support: 1-200-260-1312 -- International: 00-1-952-941-7600
compliant 10Base-T or 100Base-TX cables,
RJ-45 port
on the other device
(switch, work station, etc.)
compliant 100Base-FX fiber cable with male,
Connect the fiber cable
to the other device
(media converter,
hub, etc.) as shown

Operation

Status LEDs

Use the status LEDs to monitor the media converter and the
network connections.
FDPX (Fiber Duplex)
On = full duplex fiber connection.
Off = half duplex fiber connection.
FLNK (Fiber Link)
On = Fiber link connection.
Blinking = Fiber network activity.
PWR (Power)
On = Chassis power.
TSPD (Twisted-Pair Speed)
On = 100 Mb/s.
Off = 10 Mb/s.
TDPX (Twisted Pair Duplex)
On = full duplex copper connection.
Off = half duplex copper connection.
TLKN (Twisted Pair Link)
On = Copper link connection.
Blinking = Copper network activity.
RX
TX
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
FDPX FLNK PWR
TSPD TDPX TLNK
TX
RX
CBFTF155
