Transition Networks SGFEB1040-140 User Manual

Chassis card media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

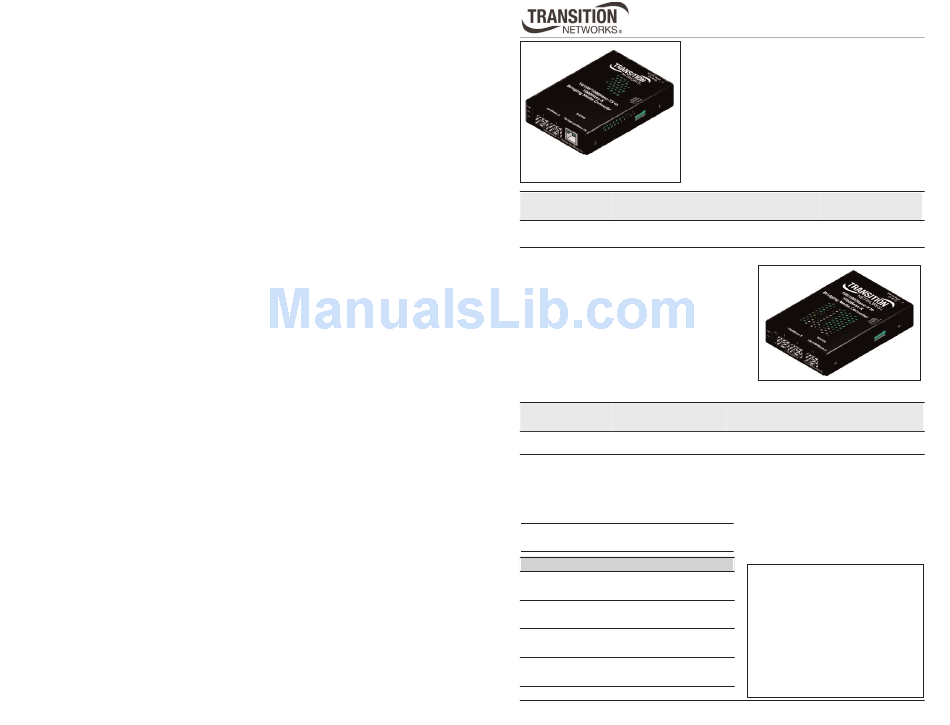

User's Guide
SGFEB1040-140 Chassis Card Media
Converter
• One Copper, Two Fiber Ports
• 10/100/1000Base-T to 1000Base-X
Transition Networks SGFEB1040-140 series media
converters are designed to connect
10/100/1000Base-T twisted-pair copper cable to SFP
1000Base-X devices. The SGFEB1040-140 has one
copper port and two SFP ports.
Part Number
Port 1 - Copper
10/100/1000-Base-T
RJ-45
SGFEB1040-140
100 m (328 ft)
SGFEB4040-180 Chassis Card

Media Converter

•
Three SFP Ports
•
100/1000Base-X SFPs to 1000Base-X SFPs
Transition Networks SGFEB1040-140 series
media converters have three SFP ports and are
designed to connect 100/1000Base-X SFP to
1000Base-X SFP devices.
Part Number
Port 1 - SFP
100/1000Base-X
Empty
SGFEB4040-180
Note: Third-party Multi-Source Agreement (MSA) compliant Small Form Factor
Pluggables (SFPs) can be used in the SGFEB1040-140 and the SGFEB4040-180
media converters.
Optional accessories
Wide Input (18 – 72VDC) Power Supplies
SPS-1872-PS or SPS-1872-SA
Mounting Options
E-MCR-04
12-Slot Media Converter Rack
WMBD
DIN Rail Mount Bracket 5.0 inches (127 mm)
WMBL
Wall Mount Bracket 4.0 inches (102 mm)
RMS19-SA4-01
4-Slot Media Converter Shelf
Port 2 - SFP
Port 3 - SFP
1000Base-X
1000Base-X
Empty
Empty
Port 2 - SFP
Port 3 - SFP
1000Base-X
1000Base-X
Empty
Empty
Installation . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . .9
Technical Specifications . . . . .10
Troubleshooting . . . . . . . . . . .11
Contact Us . . . . . . . . . . . . . . .13
Declaration of Conformity . . .14
Compliance Information . . . . .15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGFEB1040-140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SGFEB1040-140

Summary of Contents for Transition Networks SGFEB1040-140

  • Page 1: Media Converter

    Empty Empty Empty SGFEB4040-180 Note: Third-party Multi-Source Agreement (MSA) compliant Small Form Factor Pluggables (SFPs) can be used in the SGFEB1040-140 and the SGFEB4040-180 media converters. Optional accessories Wide Input (18 – 72VDC) Power Supplies SPS-1872-PS or SPS-1872-SA Mounting Options E-MCR-04 Installation .

  • Page 2: Installation

    SGFEBxx40-1xx SGFEBxx40-1xx Installation Installation—continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions Port 1 Speed: UP = 1000 Mbs, DOWN = 100 Mbs (note 2) when handling the media converter. Failure to observe this caution could result in Port 1 Duplex: UP = Full, DOWN = Half (note 3) damage to, and subsequent failure of, the media converter slide-in-module.

  • Page 3: Install Fiber Cable

    RJ-45 Port RJ-45 Port Media Converter Media Converter Note: Factory default is “A” enabled. Transition Networks recommends leaving the jumper in the “enable” position. Install fiber cable Port 2: 1000Base-X Fiber Port Locate a1000Base-X compliant fiber cable with male, two-stranded TX to RX connectors installed at both ends.

  • Page 4: Port Locations

    SGFEBxx40-1xx SGFEBxx40-1xx Port Locations Operation The SGFEBxx40-1xx models have three ports. The drawings below illustrate the Status LEDs locations of Port 1, Port 2, and Port 3. Use the status LEDs to monitor media converter operations. Fiber status LEDs Port Number The status LEDs for the SFPs fiber connection (labeled PWR amd LKx) are located next to the fiber port (Port 2).

  • Page 5: Cable Specifications

    SGFEBxx40-1xx SGFEB1xxx-1xx Operation—continued Operation -- continued Product features Product features -- continued Pause Auto-Negotiation The pause feature is used to suspend data transmission temporarily in order to The Auto-Negotiation feature allows the SGFEBxx40-1xx. media converter to relieve buffer congestion. If a media converter needs some time to clear network configure itself automatically to achieve the best possible mode of operation over a congestion, it will send a pause signal to the media converter at the other end, link.

  • Page 6: Technical Specifications

    * Manufacturer’s rated ambient temperature: Tmra range for the SGFEB1xxx-1xx initialization process. depends on the Transition Networks PointSystem™ chassis in which this slide-in- • Proceed to step 3. module will be installed.
  • Page 7 RX and TX ports, respectively, on the other device. • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600. Transition Now Chat live via the Web with Transition Networks Technical Support. • Proceed to step 5. Log onto www.transition.com and click the Transition Now link.

  • Page 8: Declaration Of Conformity

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
  • Page 9 © 2003-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks. 33396.A Printed in the U.S.A.
