SBFTF10xx-11x
Cable Specifications

Copper Cable

Category 3:
(Minimum requirement for 10 Mb/s operation)
Gauge
Attenuation
Maximum Cable Distance
Category 5:
(Minimum requirement for 100 Mb/s operation)
Gauge
Attenuation
Maximum Cable Distance
• Straight-through or crossover twisted-pair cable may be used.
• Shielded (STP) or unshielded (UTP) twisted-pair cable may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

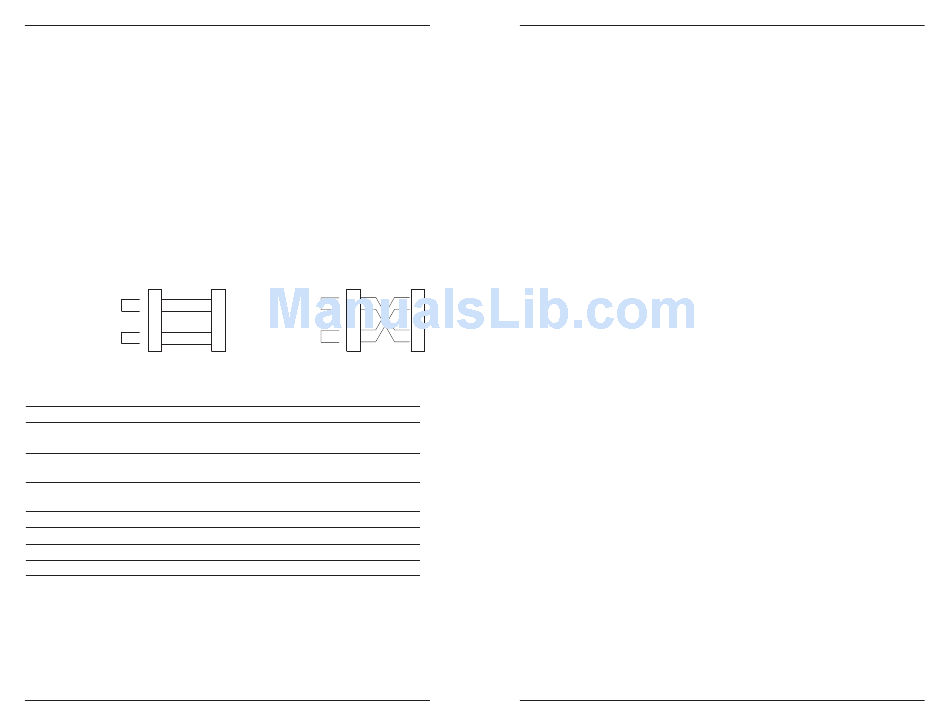

Straight-Through Cable
1
Twisted Pair #1
2
3
Twisted Pair #2
6
Optional Accessories (sold separately)
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-04 12-Slot Media Converter Rack (includes universal internal
power supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBL Optional Wall Mount Brackets; Length: 4.7in. (119mm)
WMBV Optional Vertical Mount Bracket; Length: 5.0in. (127mm)
WMBD Optional DIN Rail Mount Bracket; Length: 5.0in. (127mm)
WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84mm)
12
Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)
-- Continued
24 to 22 AWG
11.5 dB/100m @ 5-10 MHz
100 meters
24 to 22 AWG
22.0 dB /100m @ 100 MHz
100 meters
Crossover Cable
1 1
Twisted Pair #1
2 2
3 3
Twisted Pair #2
6
6

Technical Specifications

For use with Transition Networks Model SBFTF10xx-11x or equivalent.
Standards
Data Rate
Dimensions
Weight
Power Consumption
MTBF
Packet Size:
Power Supply
1
Environment
2
3
6
Warranty
*Manufacturer's rated ambient temperature.
The information in this user's guide is subject to change. For the most up-to-date
information, view the user's guide on-line at: www.transition.com.
Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,
Subchapter J applicable at the date of manufacture.
CAUTION: Visible and invisible laser radiation when open. Do not stare into
the beam or view directly with optical instruments.
CAUTION: Use of controls, adjustments or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
IEEE 802.3™
10 Mb/s, 100 Mb/s
3.25" x 1.0" x 4.7" (83 x 25 x 119 mm)
10 oz. (283 g) (approximate)
4.95 watts
48,000 hours (MIL217F2 V5.0) (MIL-HDBD-217F)
129,000 hours (Bellcore7 V5.0)
Memory: 256K bytes (2 Mbit)
Unicast MAC addresses: 4K
Maximum packet size: 1536 bytes
12VDC, 0.8 A (N. America, Europe, Japan, UK)
12VCD, 1.25A (Latin Am., Australia, N.Z., S. Africa)
(The external power supply provided with this product
is UL listed by the power supply's manufacturer.)
Tmra*: 0 to 50°C (32 to 122°F )
Storage Temp: -20 to 85°C (-4 to 185°F)
Humidity: 5 to 95%, non condensing
Altitude: 0 to 10,000 feet
Lifetime
