Page 1: User Guide
SGPAT10xx-x05 Stand-alone Gigabit Ethernet PoE+ Media Converter 10/100/1000Base-T PoE+ PSE to 1000Base-X User Guide 33719 Rev. C... -
Page 2: Table Of Contents
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Contents 1. Introduction and Product Description ......................4 SGPAT Family Portrait ..............................5 Port Locations and Layouts .............................6 Specifications ................................7 Power Consumption..............................7 Features ..................................8 Hardware Features ..............................9 Dimensions ................................10 6-Position DIP Switch ............................11 6-Position DIP Switch Model Summary ....................... - Page 3 Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide CLI Commands for Setting Advanced Features ....................27 Active Link Pass Through (ALPT) (a Command) ....................27 CLI DIP Switch Override (c Command) ......................28 Dual (2x) Converter Mode (d Command) ......................29 TP Energy Efficient Ethernet (EEE) Advertisement Mode (e Command) ............
-
Page 4: Introduction And Product Description
100/1000Base-X Open SFP Slot Power Supply Included: To order the corresponding country specific power supply, add the extension to the end of the SKU (e.g., SGPAT1013-105-NA = North America; -LA = Latin America). Page 4 of 49 33719 Rev. C... -
Page 5: Sgpat Family Portrait
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Optional Accessories (sold separately) SFP Modules See the Transition Networks SFP page for our full line of SFP transceivers. WMBL Wall Mount Bracket 4” (102mm) WMVD DIN Rail Mount Bracket 5” (127mm) CABLE-CCC-06 Console Cable - Cisco DB9 to RJ-45 Console Cable, Blue, 6 ft. -

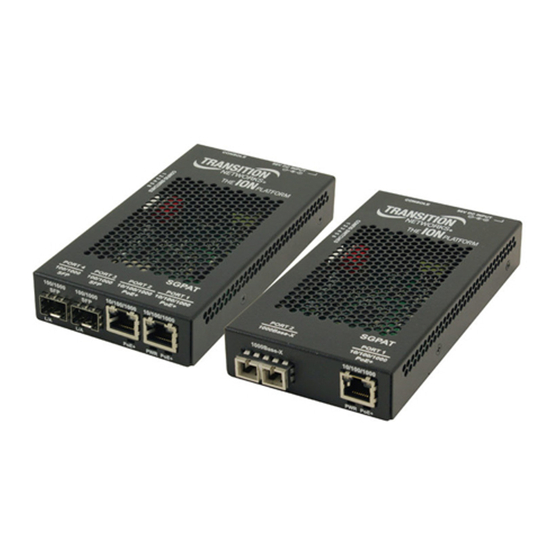

Page 6: Port Locations And Layouts
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Port Locations and Layouts Port layouts and locations vary by model number as shown below. Page 6 of 49 33719 Rev. C https://www.transition.com... -
Page 7: Specifications
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Specifications The SGPAT10xx-0x5 was designed to meet the specifications below. IEEE 802.3-2012, IEEE 802.at PSE-PoE+, IEEE 802.3U, IEEE 802.3ab, IEEE 802.3z, Standards IEEE 802.3x, IEEE 802.3az Max Packet Size 10240 bytes Max MAC Addresses... -
Page 8: Features
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Features Wall mount, DIN Rail, or table top installation External AC/DC power supply included with country-specific power cord 2-port 10/100/1000 copper to fiber media conversion with 802.3at PoE+ on the copper port ... -
Page 9: Hardware Features
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Hardware Features Full bandwidth 1000Mbps switching, non-blocking 4-Port version (SGPAT1040-305) allows enabling 2-Converter mode (two media converter mode) Ports 1 and 3 are one converter Ports 2 and 4 are another converter ... -
Page 10: Dimensions
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Dimensions SGPAT dimensions are provided below in inches. Page 10 of 49 33719 Rev. C https://www.transition.com... -
Page 11: 6-Position Dip Switch
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 6-Position DIP Switch A 6-Position DIP Switch is provided for basic SGPAT configuration. The DIP switch default is all in the UP position. The DIP switch default setting is valid until CLI DIP Switch Override is Enabled (which is disabled by default). -
Page 12: 6-Position Dip Switch Model Summary
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 6-Position DIP Switch Model Summary The DIP switch default is all in the UP position. The DIP switch default setting is valid until CLI DIP Switch Override is Enabled (it is disabled by default). The DIP Switch functions are summarized by model number below. -
Page 13: Status Leds
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Status LEDs The SGPAT front panel Status LEDs are shown and described below. PWR: On = Power being applied to converter PoE+: Off = No PD detected On (green) = Power Applied On (yellow) = Detected Fault On (yellow Blink) = PoE Classification Fault TP –... -
Page 14: Installation
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 2. Installation Safety Warnings and Cautions WARNING: Visible and invisible laser radiation when open. Do not stare into the beam or view the beam directly with optical instruments. Failure to observe this warning could result in an eye injury or blindness. -
Page 15: Unpacking
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Unpacking Verify that you have received the following items. Contact your sales representative if any item is missing. Please save the packaging for possible future use. □ One SGPAT10xx-x05 PoE+ Converter □ One Cisco blue cable □... -
Page 16: Cabling
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Cabling Perform all configuration and cabling before powering the SGPAT. Installing Copper Cable 1. Locate an Ethernet 10/100/1000Base-TX compliant copper cable with male RJ-45 connectors installed at both ends. 2. Connect the RJ-45 connector at one end of the cable to the SGPAT’s Ethernet 10/100/1000Base-RJ-45 port. -
Page 17: Powering
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Powering You must either a) use the provided external AC-DC adapter or b) ensure that the alternate power source meets the IEEE 802.3at isolation requirements. Perform all configuration and cabling before powering the SGPAT. -
Page 18: Product Features
(BT) of a particular collision domain. If the result is less than or equal to 512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at: https://www.transition.com. AutoCross™... -
Page 19: Remote Fault Detect (Rfd)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Remote Fault Detect (RFD) The RFD feature applies to 1000Mbps operation only. Remote Fault Detect (RFD) is a troubleshooting feature found on Gig Ethernet copper-to-fiber media converters. By enabling RFD on the remotely located media converter, the status of the fiber link will be monitored and any link failures will be reported back to the local converter. -
Page 20: Energy Efficient Ethernet (Eee)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide After that condition is met, ALPT enters the Active state. It remains in the Active state until the converter is either powered down, or its SFP module is removed. In the Active state, Active LPT works as shown below (the same as when regular LPT is enabled). -
Page 21: 3-Port And 4-Port Operation (Redundant Fiber Mode, Revertive Mode, Port Isolation)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide period is needed for the PHY to return to full operation. The default wake times are set to 17 microseconds for 1000Base and 30 microseconds for 100Base. During this wakeup time the packet will continue to buffer in the egress queue until the wake up timer has completed at this point port traffic will begin to flow as normal. -
Page 22: 4-Port Model (Sgpat1040-305)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide On the 3-port SGPAT1040-205, Redundancy must be disabled for Port Isolation to work. Port isolation can only be enabled via the CLI; see section 4. CLI Commands on page 29. Traffic ingress on Port 1 will pass data on Port 2 or Port 3. - Page 23 Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide The figure below shows a 4-port SGPAT1040-305 configured in Redundant Fiber mode, where only 3 of the 4 ports can be active at a time. 4-Port Redundant Fiber Mode 4-port SGPAT1040-305 configured as a 2-port...
-
Page 24: 4-Port Dual-Converter Mode
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 4-Port Dual-Converter Mode Dual Converter mode on the 4-port model (SGPAT1040-305) is like having two independent converters. In Dual Converter mode, SGPAT1040-305 Ports 4 and 2 make one converter, while Ports 3 and 1 make the other converter. -
Page 25: Cli Commands
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 4. CLI Commands The SGPAT provides Command Line Interface (CLI) commands via the CONSOLE (RJ-45) port. Setting advanced features via the CLI requires CABLE-CCC-06 (Cisco DB9 to RJ-45 Console Cable, Blue, 6 ft.) connected to a PC running Terminal Emulation software (e.g., Tera Term or HyperTerminal). - Page 26 – Reset to Factory Defaults (see page 42) To display all of the available SGPAT commands, press the Enter key twice. Transition Networks SGPAT Commands: a – Active Link Pass Through {Disable:0 | Enable:1} example: a0 – ALPT Disable, a1 – ALPT Enable c –...
-
Page 27: Cli Commands For Setting Advanced Features
Type a1 and press the Enter key to enable active link pass through.* Model Descriptions SGPAT1013-105: Once both the RJ-45 and the Fiber 1000Base-SX MM SC have established link, the ALPT function is engaged. Then if either link goes down, the link status will propagate to the other port. -
Page 28: Cli Dip Switch Override (C Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide CLI DIP Switch Override (c Command) This command lets you view and enable or disable the current CLI DIP Switch mode setting. The DIP switch default setting is valid until CLI DIP Switch Override is enabled (it is disabled by default). -
Page 29: Dual (2X) Converter Mode (D Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Dual (2x) Converter Mode (d Command) This command lets you view and enable or disable the current Dual Converter (DC) Mode setting. Note: This CLI command is only accepted when CLI DIP Switch Override is enabled; otherwise the setting is controlled by DIP switch 6. -
Page 30: Tp Energy Efficient Ethernet (Eee) Advertisement Mode (E Command)
The default is EEE Advertisement Mode enabled for all ports. Model Descriptions SGPAT1013-105, SGPAT1039-105, SGPAT1040-105, SGPAT1040-205: Only Copper Port 1 of these models supports EEE. When EEE is enabled the port will Advertise and Support IEEE 802.3az Energy Efficient Ethernet. -
Page 31: Flow Control (F Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Flow Control (f Command) This command lets you view and enable or disable SGPAT Flow Control for the port specified in the command. f – Flow Control {PORT 1-4} {Disable: 0 | Enable: 1} Type f and press the Enter key on the keyboard to display the current stored flow control setting. -
Page 32: Get Pse Status Report (G Command)
Enter key to show the PD detection, classification, voltage, current and power. Model Descriptions SGPAT1013-105, SGPAT1039-105, SGPAT1040-105, SGPAT1040-205: Only Copper Port 1 of these models will display the status of the PD as seen by the PSE controller. -
Page 33: Port Isolation Mode (I Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Port Isolation Mode (I Command) This command lets you view and configure the current Isolation Port mode. I – Isolated Port Mode {Disable: 0 | Enable: 1} Type I and press the Enter key to display the current stored Port Isolation mode. -
Page 34: Pse Port Legacy Detect Mode (L Command)
Type l21 and press the Enter key to enable legacy detection mode only on Port 2. Model Descriptions SGPAT1013-105, SGPAT1039-105, SGPAT1040-105, SGPAT1040-205: Copper Port 1 of these models will enable and disable the support for legacy type PD devices. SGPAT1040-305 : Both Copper Ports 1and 2 of this model will enable and disable the support for legacy type PD devices. -
Page 35: Complete Configuration Status Report (M Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Complete Configuration Status Report (m Command) This command displays the current SGPAT configuration settings. m – Complete Status Report Type m and press the Enter key to display the current converter configuration settings. (This works the same as pressing a, c, d, e, f, I, l, n, p, r, s). -
Page 36: Auto Negotiation (An) Enable For Tp Ports Or An Disable With Port Forced Mode (N Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Auto Negotiation (AN) enable for TP ports or AN disable with port forced mode (n Command) This command lets you view and configure SGPAT Auto Negotiation, Speed, and Duplex settings. n – Auto Negotiation (AN) {PORT 1-2} {Forced: 0 | Enable: 1} {Forced Mode 1-4} Type n and press the Enter key to display the current stored Auto Negotiation setting. -
Page 37: Alpt Pd Power Reset (P Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide ALPT PD Power Reset (p Command) This command will cycle power to the PD device when ALPT is enabled and the link is lost on the SFP or fixed optic port. The converter then sets a 2-3 minute time out period internally. During the time out period the converter will not initiate another power cycle of the PD power reset if the fiber link status is changing. -
Page 38: Sfp Port Redundancy Mode (R Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide SFP Port Redundancy Mode (r Command) Note: This command is only accepted when CLI DIP Switch Override is enabled; otherwise the setting is controlled by DIP switches 4 and 5. r – Redundancy Mode {Disable: 0 | Enable Revert: 1 | Enable Non-Revert: 2} Type r and press the Enter key to display the current stored Redundancy Mode. - Page 39 Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide %r ? Redundant Mode: Unavailable Redundant Mode Stored Redundant Mode: Unavailable Redundant Mode Stored Redundant Mode: Unavailable Redundant Mode Stored Redundant Mode: Unavailable Page 39 of 49 33719 Rev. C https://www.transition.com...
-
Page 40: Sfp Port Mode (S Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide SFP Port Mode (s Command) Note: This CLI command is only accepted when CLI DIP Switch override is enabled; otherwise the setting is controlled by DIP switch 1 or 2. s – SFP Port Mode {Port} {SGMII: 0 | 100Base-FX/1000BaseX: 1} Type s and press the Enter key to display the current stored SFP port mode. - Page 41 Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide %s30 SFP Mode Stored SFP Port 3:SGMII SFP Port 4:100/1000 Page 41 of 49 33719 Rev. C https://www.transition.com...
-
Page 42: Temperature Of Converter (T Command)
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Temperature of Converter (t Command) This command displays SGPAT and SFP temperature information in Degrees Celsius. t –Internal Temperature of Converter and SFP Type t and press the Enter key to display the current temperature of the SGPAT and SFP devices (if available). -
Page 43: Troubleshooting
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 5. Troubleshooting Is the PWR (power) LED lit? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? • Is the power adapter properly installed in the SGPAT and in the outlet? •... -
Page 44: Record System And Device Information
9. Describe action(s) already taken to resolve the problem (e.g., change mode, reset, etc.): _____________________ ______________________________________________________________________________________________ ______________________________________________________________________________________________ ______________________________________________________________________________________________ 10. The model # and serial # of other Transition Networks products in the network: __________________________ ______________________________________________________________________________________________ ______________________________________________________________________________________________ 11. Describe your network environment (layout, cable type, cable distance, etc.): ____________________________... -
Page 45: Power Supply Features And Specifications
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 6. Power Supply Features and Specifications The 25155Power Supply is an external (desktop) power adapter with a 2-Pin barrel connector. Warning: You must either use the provided external AC-DC adapter or you must ensure that the alternate power source meets the IEEE 802.3at isolation requirements. -
Page 46: Power Supply Dimensions
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide Power Supply Dimensions The Power Supply dimensions are given below (in mm). Page 46 of 49 33719 Rev. C https://www.transition.com... -
Page 47: Service, Warranty, And Compliance Information
Transition Networks SGPAT10xx-x05 PoE+ Converter User Guide 7. Service, Warranty, and Compliance Information Declaration of Conformity CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. -
Page 48: Contact Us
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’ portion of this document. -
Page 49: 33719 Rev. C Https://Www.transition.com
+1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com © Copyright 2017 Transition Networks. All rights reserved. Printed in the U.S.A. SGPAT10xx-x05 PoE+ Converter User Guide, 33719 Rev. C Page 49 of 49 33719 Rev. C https://www.transition.com...
