Transition Networks SGFEB1013-120 User Manual

Sgfeb10xx-12x slide-in-module media converter
Hide thumbs Also See for SGFEB1013-120:
Table of Contents

Advertisement

Quick Links

Enlarged version

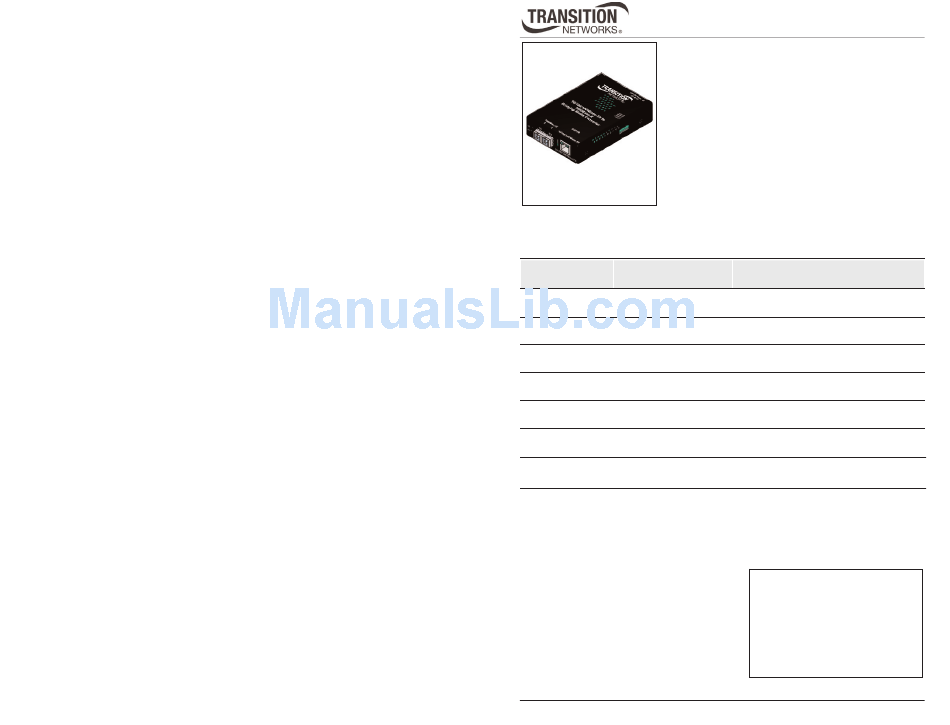

User's Guide
SGFEB10xx-12x
SGFEB10xx-12x
Converter
• Copper to Fiber
• 10/100/1000Base-TX to 1000Base-SX/LX

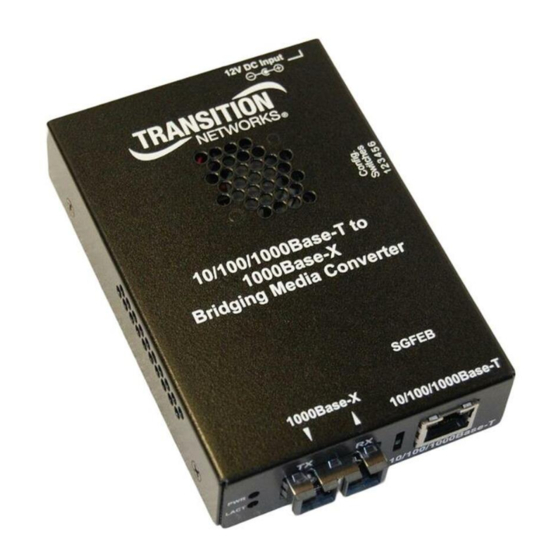

Transition Networks SGFEB10xx-12x series media
converters connect 10Base-TX, 100Base-T, or 1000Base-
T twisted-pair copper cable to 1000Base-SX or
1000Base-LX fiber cable.
The SGFEB10xx-12x has one copper port and one fiber-
optic port. The distances listed are the typical maximum
cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
Part Number
Port 1 - Copper
10/100/1000-Base-TX
RJ-45
SGFEB1013-120
100 m (328 ft)
RJ-45
SGFEB1014-120
100 m (328 ft)
RJ-45
SGFEB1015-120
100 m (328 ft)
RJ-45
SGFEB1017-120
100 m (328 ft)
SGFEB1024-120* RJ-45
100 m (328 ft)
RJ-45
SGFEB1035-120
100 m (328 ft)
RJ-45
SGFEB1040-120
100 m (328 ft)
*The SGFEB1024 extends 1000Base-LX beyond 220 meters. Transition Networks
cannot guarantee a full 2-km distance on every installation since the distance is largely
dependent on the quality of the fiber, cable installation and splicing.
Slide-in-Module Media
Port 2 - Duplex Fiber-Optic
SC, 1000Base-SX, 850 nm multimode
220/550m (720/1,805 ft)
SC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)
SC, 1000Base-LX, 1310 nm single mode
25 km (15.5 miles)
SC, 1000Base-LX, 1550 nm single mode
65 km (40.4 miles)
SC, 1000Base-LX, 1300 nm extended
multimode, 2 km (1.2 miles)
SC, 1000Base-LX, 1550 nm single mode
120 km (77.5 miles)
1000Base-X SFP slot (empty)
Installation . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . .11
Technical Specifications . . . . .13
Troubleshooting . . . . . . . . . . .14
Contact Us . . . . . . . . . . . . . . .15
Compliance Information . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGFEB1013-120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SGFEB1013-120

Summary of Contents for Transition Networks SGFEB1013-120

  • Page 1 1000Base-X SFP slot (empty) SGFEB1040-120 100 m (328 ft) *The SGFEB1024 extends 1000Base-LX beyond 220 meters. Transition Networks cannot guarantee a full 2-km distance on every installation since the distance is largely dependent on the quality of the fiber, cable installation and splicing.

  • Page 2: Installation

    SGFEB10xx-12x SGFEB10xx-12x Installation Part Number Port 1 - Copper Port 2 - Duplex Fiber-Optic 10/100/1000Base-TX 1000Base LX CAUTION: Wear a grounding device and observe electrostatic discharge precautions RJ-45 SC, 1310nm TX/1550 nm RX single mode SGFEB1029-120 when setting or installing the media converter. Failure to observe this caution could 100 m (328 ft) 20 km (12.4 miles) result in damage to, and subsequent failure of, the media converter slide-in-module.

  • Page 3: Connection Power

    Straight-through or crossover twisted-pair cable, depending on installed site devices, MUST be installed at EACH twisted-pair copper link. Note: Factory default is “A” enabled. Transition Networks recommends leaving the device in the “enabled” mode. Power Connector Port Locations The drawings below illustrate the locations of Port 1 and Port 2 The SGFEB10xx-12x models have two ports.

  • Page 4: Installing The Fiber Cable

    SGFEB10xx-12x SGFEB10xx-12x Installation—continued Installation -- continued Installing the RJ-45 copper cable Installing the fiber cable Port 1: 10/100/1000Base-TX Copper Port Port 2: 1000Base-X Fiber Port Locate a 10/100/1000Base-TX compliant copper cables with male, RJ-45 Locate a 1000Base-X compliant fiber cable with male, two-stranded TX to RX connectors installed at both ends.

  • Page 5: Operation

    SGFEB10xx-12x SGFEB10xx-12x Operation Operation—continued Product features Status LEDs Auto-Negotiation Use the status LEDs to monitor the media converter operation in the network. The Auto-Negotiation feature allows the SGFEB10xx-12x. media converter to Fiber status LEDs automatically configure itself to achieve the best possible mode of operation over a The status LEDs for the 1000Base-SX/LX fiber connection (labeled LACT and link.

  • Page 6: Automatic Link Restoration

    0.0 dBm For more information on the 512-Bit Rule, see the white paper titled “Collision Link Budget: 7.0 dB Domains” on the Transition Networks website at: www.transition.com. SGFEB1014-120 1310 nm single mode Fiber Optic Transmitter Power: min: -13.0 dBm max: -3.0 dBm...

  • Page 7: Copper Cable

    * Manufacturer’s rated ambient temperature: Tmra range for the SGFEB10xx-12x Maximum Cable Distance: 100 meters depends on the Transition Networks PointSystem™ chassis in which this slide-in- • Straight-through OR crossover twisted-pair cable may be used. module will be installed. • Shielded (STP) OR unshielded (UTP) twisted-pair cable may be used.

  • Page 8: Troubleshooting

    Is the power cord properly installed in the chassis and in the grounded AC outlet? Transition Now • Does the grounded AC outlet provide power? Chat live via the Web with Transition Networks Technical Support. • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600. Log onto www.transition.com and click the Transition Now link. •...

  • Page 9: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.

This manual is also suitable for:

Sgfeb1014-120Sgfeb1015-120Sgfeb1017-120Sgfeb1024-120Sgfeb1035-120Sgfeb1040-120
