Introduction; Description - Transition Networks PointSystem CPSMC1900-100 User Manual

1

Introduction

1.1

Description

The Transition Networks CPSMC19xx-100 19-Slot PointSystem™ chassis is a 19-
inch, rack-mountable chassis for selected Transition Networks media converter
slide-in-modules. The CPSMC19xx-100 allows the network administrator to con-
nect various copper and fiber-optic network media over protocols that include
Ethernet, Fast Ethernet, DS3/E3, and OC-12 and many others.
100 provides installation space for up to 19 single-slot media converter slide-in-
modules in the front of the unit.
Management Module
With an installed PointSystem™ management module (P/N CPSMM-120 or -200),
the CPSMC19xx-100 can be managed and monitored via:
•
•
•
•
The management modules also make it possible to control up to eight (8) cascaded
CPSMC19xx-100 chassis fully populated with media converter slide-in-modules.
The CPSMC19xx-100 is equipped with an AC or DC Power Supply installed in the
back of the chassis. An extra installation space is available for an optional redun-
dant power supply (AC or DC) or an optional fan module.
Finally, the CPSMC19xx-100 also comes equipped with a pair of grounding lugs for
providing proper grounding of the chassis.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installed Slide-in-Module
PWR PWR
TX PWR
PWR LKS LKS LA
LKF
RXF LKM LKM RXF
RX LNK RXC LKC RXC
TX TX
TX E
RESET
RX
RX
RX
TX TX
0
RX RX
CETTF100 CFMFF100 CECF100
CFMFF100
An SNMP application such as Transition Networks FocalPoint™ manage-
ment software installed at a remote Network Management Station (NMS).
A remote Web browser.
A command-line interface (CLI) at an attached terminal.
A command-line-interface (CLI) at a remote Telnet connection.
Power Supply Module
(AC module is pictured)
I
0
Grounding Lugs

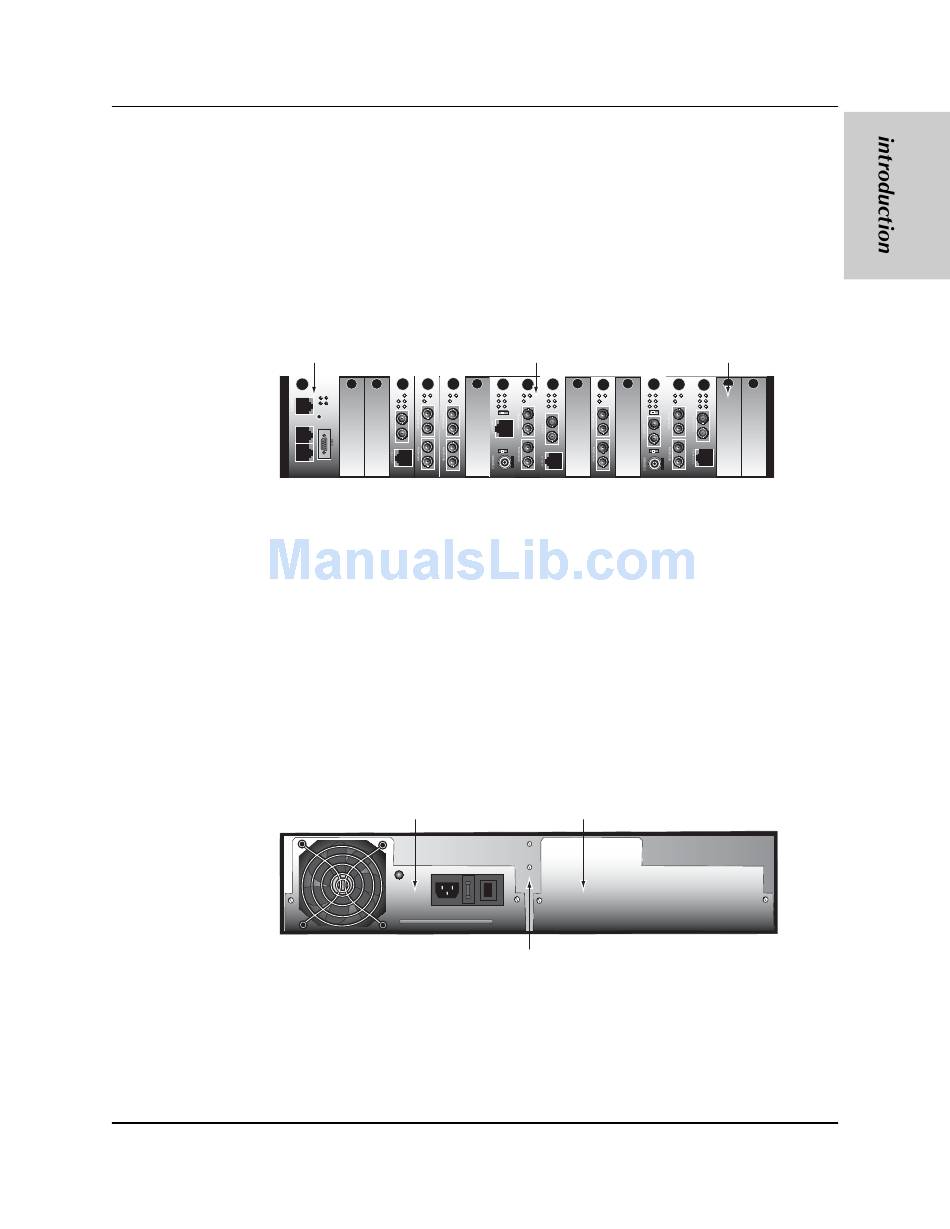

CPSMC19xx-100 PointSystem™ Chassis
PWR PWR
PWR PWR
LKS SPD PWR LKS LA LKS
LNK LNK
LKM FRX FLNK LKM RXF LKM
COL CRX CLNK RXC COL
TX TX TX
Link Alert
Link Alert
E D
D
TX
RX RX RX
TX TX TX
RX
50½ 0 50½
RX
RX RX
CFMFF100 CFETF110 CFMFF100 CETCF100 CFMFF100
Extra Installation
Space
The CPSMC19xx-
Open Slot
PWR
SPD PWR
FLNK
FRX
CRX CLNK
TX
RX
CFETF100
5
