2.2

Management Modules

Optional network management is provided by SNMP software embedded in
Transition Networks PointSystem
the CPSMC19xx-100 chassis.
Transition Networks provides two such modules:
•
•
Along with an additional expansion module:
•
2.2.1

Three Types of Management Modules

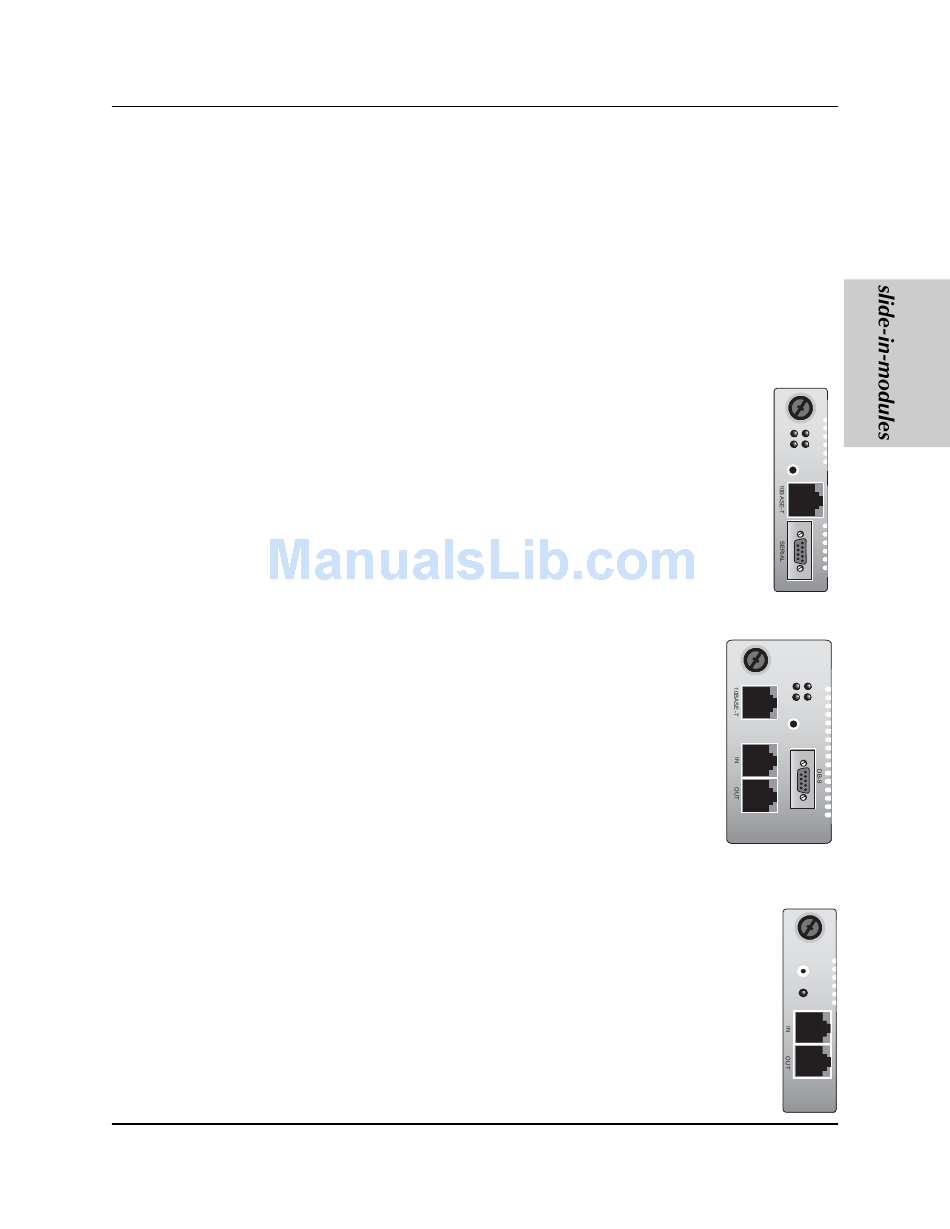

CPSMM-120 Single-Slot Master Management Module
The optional CPSMM-120 Single-Slot Master Management Module can
be installed to enable network management of a single CPSMC19xx-
100 chassis.
Refer to the CPSMM-120 user's guide for more information on the
CPSMM-120 Single-Slot Master Management Module.
CPSMM-200 Dual-Slot Master Management Module
The optional CPSMM-200 Dual-Slot Master Management
Module can also be installed in the CPSMC19xx-100 chassis to
enable network management.
This module has all of the features of the CPSMM-120 plus a pair
of cascade ports, which allow multiple PointSystem™ chassis to
be connected.
Note also that this module requires two adjacent slots in the
CPSMC19xx-100 chassis for installation.
Refer to the CPSMM-200/-210 user's guide for more information
on the CPSMM-200 Dual-Slot Master Management Module.
CPSMM-210 Single-Slot Expansion Management Module
The CPSMM-210 is used with the CPSMM-200 to connect up to eight (8)
PointSystem™ chassis into one manageable stack.
Refer to the CPSMM-200/-210 user's guide for more information on the
CPSMM-210 Single-Slot Expansion Management Module.
NOTE: See section 4.3 Cascade Option for details on connecting multi-
ple CPSMC19xx-100 chassis.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
CPSMM-120 Single-Slot Master Management Module.
CPSMM-200 Dual-Slot Master Management Module.
CPSMM-210 Single Slot Expansion Management Module.
CPSMC19xx-100 PointSystem ™ Chassis
™
management module(s) that can be installed in
TX PWR
RX LNK
RESET
CPSMM120
TX PWR
RX LNK
RESET
CPSMM200
RESET
Power
CPSMM210
10
