3

Powering the CPSMC19xx-100

3.1

AC Power Supply Module

The CPSMC1900-100 PointSystem™ chassis is equipped with an AC power supply
module (P/N CPSMP-200) installed in the back of the chassis. The power supply
module supplies power to the chassis, installed media converter slide-in-modules,
management modules, and the optional fan module.

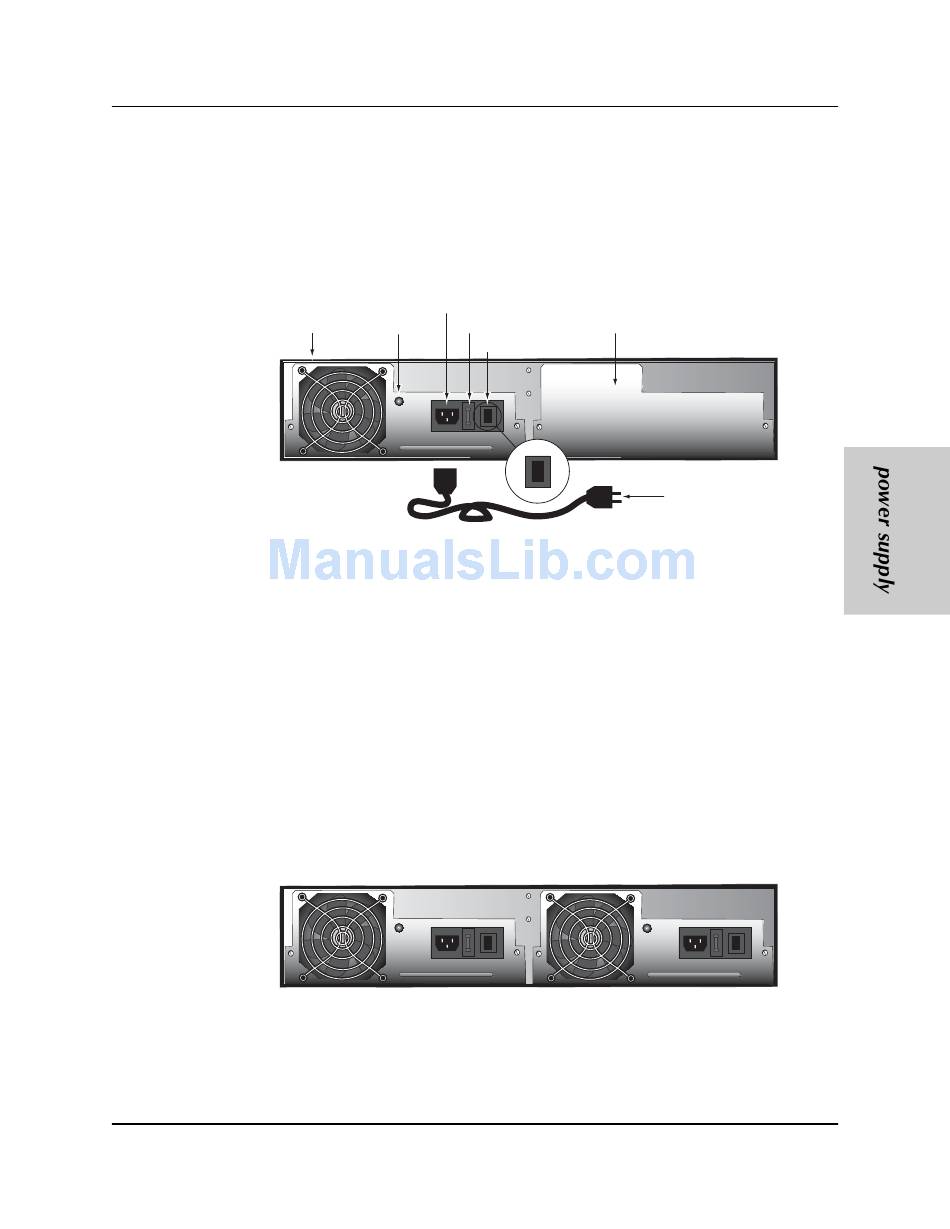

The components of the AC power supply module include:
•
•
•
•
•
Optional Redundant AC Power Supply Module
An extra installation space is available in the back of the chassis for installing an
optional redundant AC power supply module (P/N CPSMP-200).
See section 3.4 Power Supply Module Maintenance for instructions on installation.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
AC Power Connector
Fan Power LED Fuse Holder
On/Off Switch
An AC power cord that distributes power from an external outlet to an AC
power connector on the power supply module.
An On/Off switch that, when set to "I", allows the module to supply power to
the chassis and any installed modules.
A power LED indicator.
A fan to prevent the power supply module from overheating.
An fuse installed in a fuse holder.
CPSMC19xx-100 PointSystem ™ Chassis
Extra Installation
Space
I
0
I
0
I
0
AC Power Cord
I
0
14
