Installing the Management Modules

CAUTION: Wear a grounding device and observe electrostatic discharge precau-
tions when installing the management module into the CPSMC19xx-100 chassis.
Failure to observe this caution could result in damage to, and subsequent failure of,
the management module.
NOTE: Transition Networks recommends installing the management module into
the left-most installation slot to keep the management module cables separate from
the media converter cables.
To install a management module into the CPSMC19xx-100 chassis:

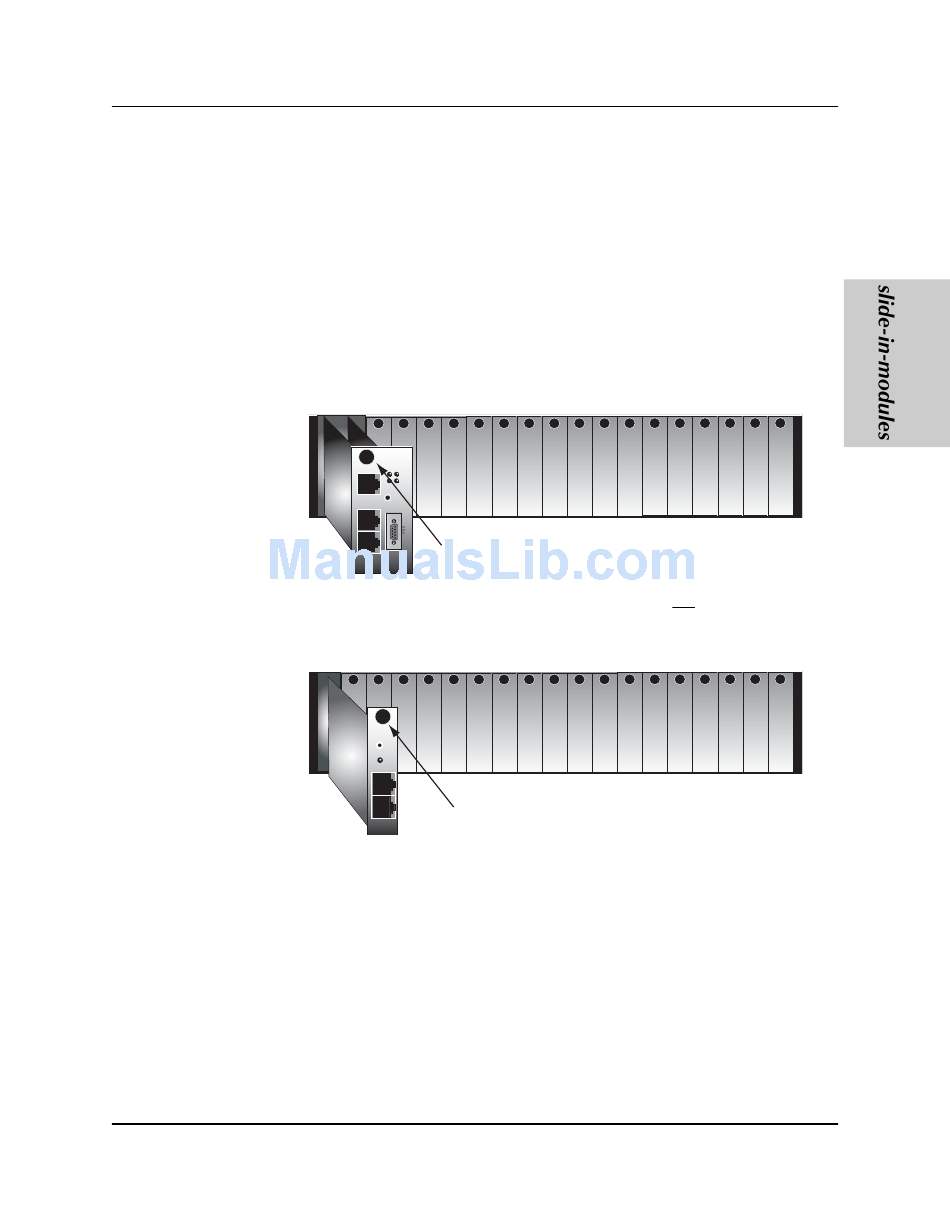

1a. CPSMM-200 Dual-Slot Master Management Module:
1b. CPSMM-120 Single-Slot Master Management Module OR
2. Align the management module with the chassis installation slot so that the
3. Carefully slide the management module into the installation slot, while aligning
4. Push in and rotate the attached panel fastener screw clockwise to secure the
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
chassis face plates are covering the installation slots, remove the face plates
from the two (2) installation slots at the far-left position of the chassis.
TX PWR
RX LNK
RESET
Panel Fastener Screw
CPSMM-210 Single-Slot Expansion Management Module:
If chassis face plates are covering the installation slots, remove the face plate
from the one (1) installation slot at the far-left position of the chassis.
RESET
Pwr
INIT
TERM
Panel Fastener Screw
panel fastener screw is at the top of the module.
the module's circuit board with the installation guides.
NOTE: Ensure that management module is firmly seated inside the chassis.
management module to the chassis.
