CPSMC0200-200 / CPSMC0200-210

Installation

Installing a Slide-in-Module
CAUTION: Do NOT install Two (2) PointSystem™ media converter slide-in-
modules whose total power requirements exceed 12 W (with a maximum of
6 W per slot). Failure to observe this caution could cause data transfer to fail
and also could result in damage to, and subsequent failure of, the media
converter slide-in-module.
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the media converter slide-in-module in to the
dual-slot chassis. Failure to observe this caution could result in damage to,
and subsequent failure of, the media converter slide-in-module.
NOTE: If only one slide-in-module is to be installed into the dual-slot chassis,
ensure network standards compliance by obtaining a custom faceplate (P/N
CPSFP-200) from Transition Networks for installation into the second, unused
slot.

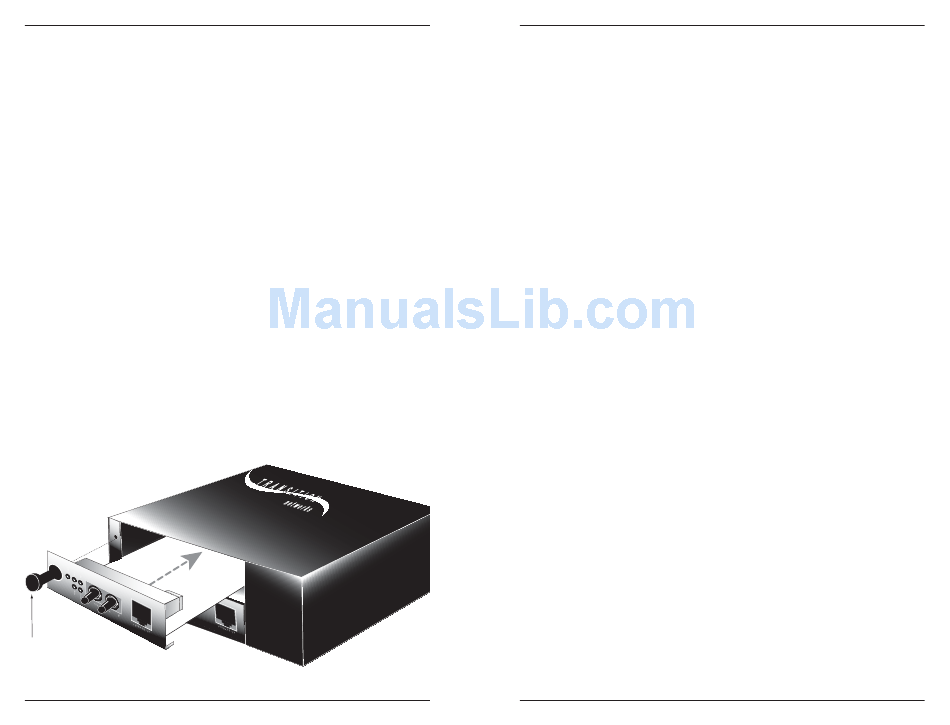

To install a slide-in-module into the dual-slot chassis:
1. Refer to the user's guide that comes with the slide-in-module to ensure
that any switches or jumpers on the slide-in-module circuit board are set
correctly for the site installation.
2. Carefully align the slide-in-module with the chassis installation guides
and slide the module into the installation slot.
3. Ensure that the slide-in-module is firmly seated inside the chassis.
4. Push in and rotate the attached panel faster screw clockwise to secure the
slide-in-module to the chassis front.
5. Repeat steps 1-4 for the second slide-in-module.
Panel Fastener Screw
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
2
Installation
-- Continued
Power the Chassis
To supply AC power to the dual-slot chassis:
1. Locate an appropriate 12 volt power adapter for the installed media
converter slide-in-module(s).
2. Connect the barrel connector on the power adapter to the dual-slot
chassis power port (located on the back of the chassis).
3. Connect the power adapter plug to AC power.
4. Verify that the dual-slot chassis is powered by observing the illuminated
LED(s) on the installed slide-in-module(s).
To supply DC power to the dual-slot chassis:
Consult the user's guide for the Transition Networks SPS1872-xx DC external
power supply for powering the dual-slot chassis.
Last Gasp Option
(CPSMC0200-210 model only)
The CPSMC0200-210 model features the Last Gasp option, which enables the
device to send out an SNMP trap to the device in the event of a power failure;
alerting the management console that the device has failed.
