CPSMC0200-200 / CPSMC0200-210

Installation

Installing a slide-in module
CAUTION: Do NOT install Two (2) PointSystem™ media converter slide-in
modules whose total power requirements exceed 12 W (with a maximum of 6 W per
slot). Failure to observe this caution could cause data transfer to fail and also could
result in damage to, and subsequent failure of, the media converter slide-in module.
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the media converter slide-in module in to the dual-slot
chassis. Failure to observe this caution could result in damage to, and subsequent
failure of, the media converter slide-in module.
NOTE: If only one slide-in module is to be installed into the dual-slot chassis,
ensure network standards compliance by obtaining a custom faceplate
(P/N CPSFP-200) from Transition Networks for installation into the
second, unused slot.
To install a slide-in module into the dual-slot chassis:
1. Refer to the user's guide that comes with the slide-in module to ensure that any
switches or jumpers on the slide-in module circuit board are set correctly for
the site installation.

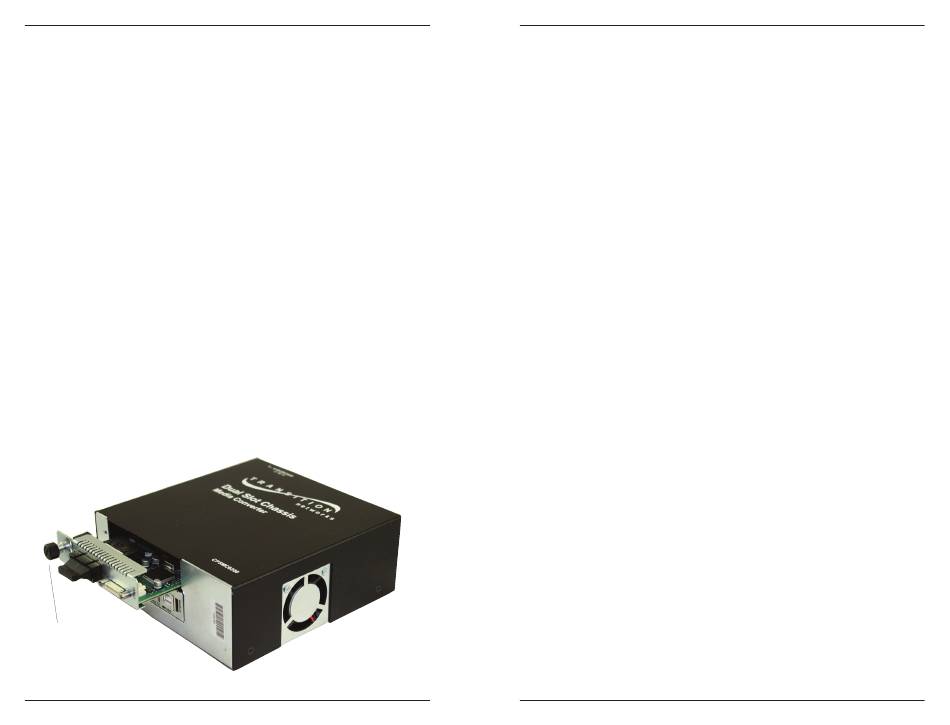

2. Carefully align the slide-in module with the chassis installation guides and
slide the module into the installation slot.
3. Ensure that the slide-in module is firmly seated inside the chassis.
4. Push in and rotate the attached panel faster screw clockwise to secure the slide-
in module to the chassis front.
5. Repeat steps 1-4 for the second slide-in module.
Panel Fastener
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
2
Installation
-- Continued
Power the Chassis
To supply AC power to the dual-slot chassis:
1. Locate an appropriate 12 volt power adapter for the installed media converter
slide-in module(s).
2. Connect the barrel connector on the power adapter to the dual-slot chassis
power port (located on the back of the chassis).
3. Connect the power adapter plug to AC power.
4. Verify that the dual-slot chassis is powered by observing the illuminated
LED(s) on the installed slide-in module(s).
To supply DC power to the dual-slot chassis:
Consult the user's guide for the Transition Networks SPS1872-xx DC external
power supply for powering the dual-slot chassis.
Last Gasp Option
(CPSMC0200-210 model only)
The CPSMC0200-210 model features the Last Gasp option, which enables the
device to send out an SNMP trap to the device in the event of a power failure;
alerting the management console that the device has failed.
