CPSMC0200-200 / CPSMC0200-210
Installation
-- Continued
Grounding the Media Converter
The dual-slot chassis comes equipped with grounding lugs located on the
back panel. They require a grounding conductor wire terminated with a two-
hole, compression-type, grounding connector. The grounding wire -- which
must be a copper conductor -- is not included with the chassis and must be
provided by the customer/installer.
The electrical conducting path from the single-slot chassis must:
• Flow via the grounding lugs to the common bonding network (CBN) for
telecom installations, or to an alternative approved grounding system (if
required) for non-telecom installations.
• Be of sufficiently low impedance to conduct fault currents likely to be
imposed on the media converter, and
• Enable proper operation of any over-current protection devices.

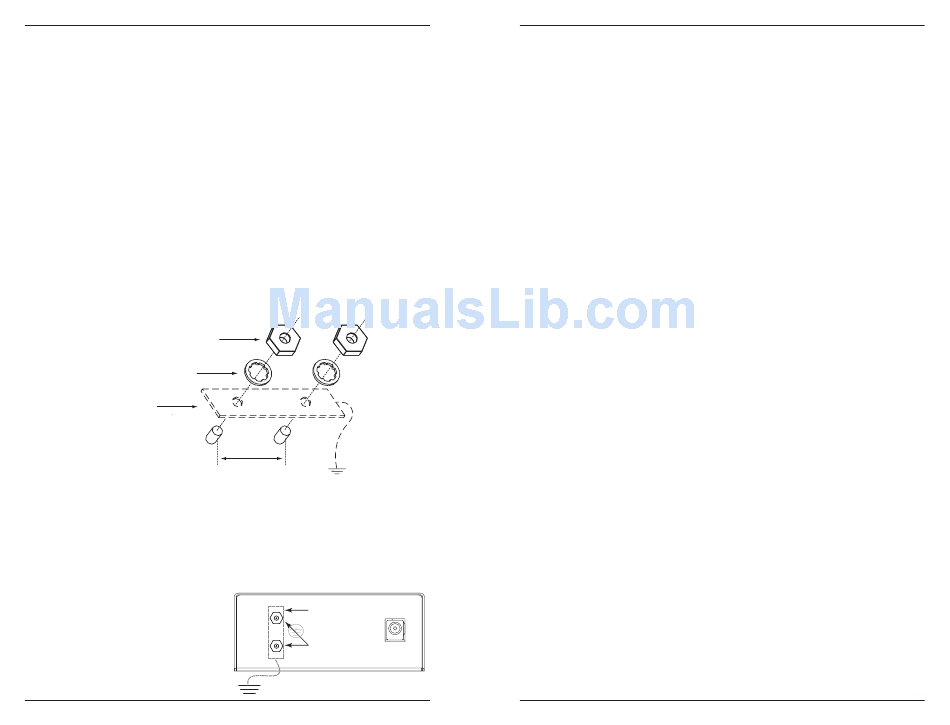

The conductor must be fastened to the grounding lugs with the enclosed anti-
rotation star-washers and lug-nut fasteners. The applied torque required to the
connector lug-nut fasteners is specified by the connector's manufacturer.
Lug nuts (included)
Star washer (included)
Two-hole, compression-type
grounding connector
(not included)
Grounding lugs
(6-32, 1/8" diam.)
To properly ground the dual-slot chassis:
1. Obtain one (1) grounding conductor (12 AWG copper wire gauge or
larger) with a two-hole, compression-type, grounding connector.
2. Attach the grounding conductor to the converter by placing the two-hole
connector onto the grounding lugs and fasten with the enclosed lock-
washers / lug-nuts at the proper torque (per the manufacturer's
specification).
3. Attach the opposite end of the
grounding conductor to the
common bonding network
(CBN) for telecom, or to earth
ground (if required) for non-
telecom installations.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
4
12 AWG copper wire
(not included)
3/4-inch
spacing
grounding
connector
and wire
grounding
lugs
earth ground

Technical Specifications

For use with Transition Networks Model CPSMC0200-2x0 or equivalent.
NOTE: The CPSMC0200-2x0 dual-slot chassis is Class B compliant ONLY if
Class B-compliant media converters are installed. Installation of a Class A-
compliant media converter reduces the chassis to Class A compliance.
The maximum power delivery capacity for each chassis slot is 12 Watts with an
aggregate chassis maximum of 6 Watts per slot. Example: A 9-Watt media
converter would require the power of both slots. In this example, the second slot
must remain unused.
Compliance EN55022; Class A&B; CE Mark
Dimensions 5.4 x 5.6 x 2.2 in (137 x 142 x 56 mm)
Weight 1.4 lb. (0.6 kg.) (approximate)
MTBF 48,501 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
(CPSMC0200-200)
128,553 hours (Bellcore7 V5.0)
MTBF 1,618,162 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
(CPSMC0200-210)
3,259,373 hours (Bellcore7 V5.0)
Power Supply 12VDC, 1.25 A; 100-240 VAC
Environment Tmra*:
Storage Temp:
Humidity:
Altitude:
Warranty Lifetime
*Manufacturer's rated ambient temperature for the dual-slot chassis. Refer to the
user's guide of the installed media converter for its operating temperature range.
The information in this user's guide is subject to change. For the most up-to-date
information on the CPSMC0100-20x dual-slot chassis, view the user's guide on-
line at: www.transition.com.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
0 to 60°C (32 to 140° F )
-20 to 85°C
10 to 90%, non condensing
0 to 10,000 feet
