Installation
Installing a Slide-in-Module
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the media converter slide-in-module in to the
single-slot chassis. Failure to observe this caution could result in damage to,
and subsequent failure of, the media converter slide-in-module.
The maximum power delivery capacity for the CPSMC0100-200 is 6 Watts.
To install a slide-in-module into the single-slot chassis:
1.
Refer to the user's guide that comes with the slide-in-module to ensure
that any switches or jumpers on the module's circuit board are set
correctly for the site installation.
2.

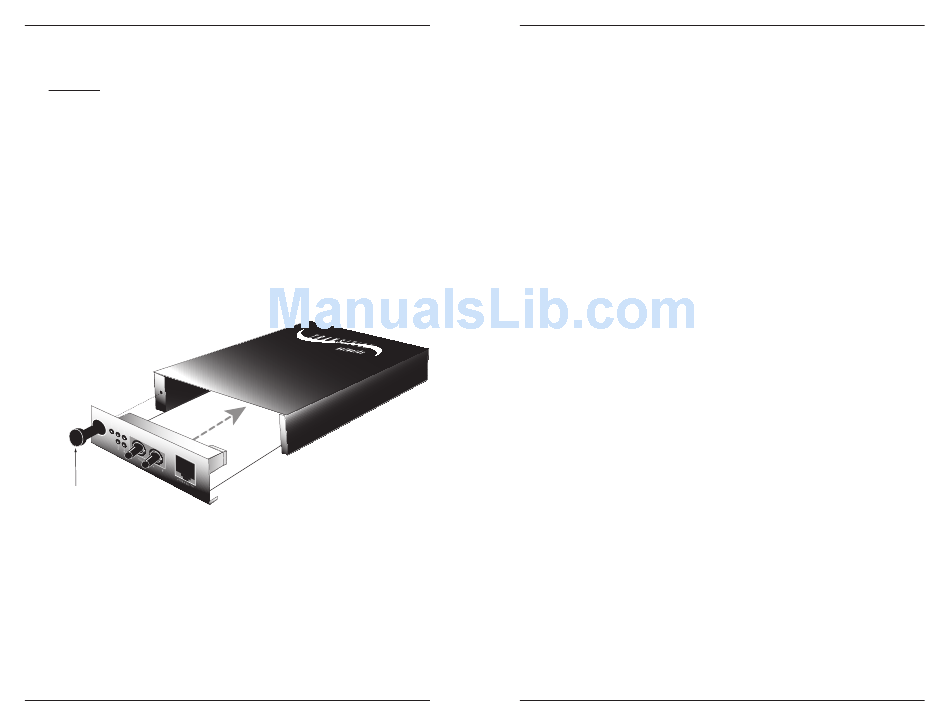

Carefully align the slide-in-module with the chassis installation guides
and slide the module into the installation slot.
3.
Ensure that the slide-in-module is firmly seated inside the chassis.
4.
Push in and rotate the attached panel fastener screw to secure the slide-
in-module to the chassis.
Panel Fastener Screw
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
2
Power the Chassis
To supply AC power to the single-slot chassis:
1.
Connect the barrel connector on the power adapter to the single-slot
chassis' power port (located on the back of the chassis).
2.
Connect the power adapter plug to AC power.
3.
Verify that the single-slot chassis is powered by observing the illuminated
LED(s) on the installed slide-in-module.
To supply DC power to the single-slot chassis:
Consult the user's guide for the Transition Networks SPS1872-xx DC external
power supply for powering the single-slot chassis.
