CFETF10xx IN THE NETWORK
The CFETF10xx receives and transmits network signals in either full-
duplex or half-duplex mode, depending upon the network devices to
which the media converter is attached and upon the Auto-negotiation
switch setting. (See page 4 for switch setting description.)
Fast Ethernet ™ in full-duplex mode allows the maximum cable distances
shown in the cable specifications on page 10. Fast Ethernet
duplex mode requires attention to the 512-bit Rule. (See page 3.)

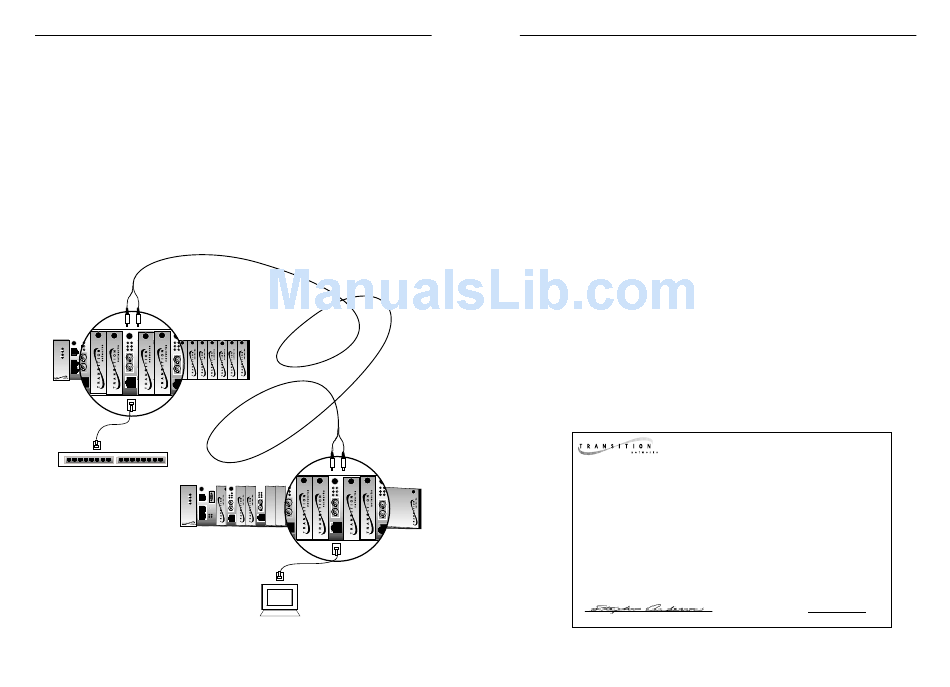

Network Configurations
Install two CFETF10xx series media converters in series to extend, over
fiber, the distance between two 100BASE-TX devices:
Media
Conversion PWR SPD PWR SPD
Center FRX FLNK FRX
SPD PWR
LKF PWR SPD PWR
Power FRX FLNK
1 LKC RXF CRX CLNK FRX FLNK CRX
In Use
RXC LKC CRX CLNK CRX CLNK
TX TX TX
Power
2 TX TX
In Use
RESET
RX RX
RX
TX PWR
RX
RX
RX
LNK
MCCM10
MGMT MASTER CFETF100
CETTF100 CFETF110
Media
Conversion
Center
Power
1
In Use
Power
2
In Use
RESET
TX PWR
RX LNK
MCCM10
MGMT MASTER
Alternatively, use one CFETF10xx media converter to connect a
100BASE-TX terminal device and a 100BASE-FX hub, switch, or router.
Or use one CFETF10xx media converter to connect a 100BASE-TX hub,
switch, or router and a 100BASE-FX terminal device.
™
in half-
PWR SPD PWR SPD
FLNK FRX
FRX
PWR SPD PWR SPD PWR
LKF
FRX FLNK LKC CRX CLNK CRX
RXF FRX FLNK
CRX CLNK
RXC LKC CRX CLNK
TX
TX TX
TX
TX
RX RX
RX
RX
RX
CETTF100 CFETF100
CFETF110

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3 1998
Data Rate 100 Mb/s
Dimensions 3.4" x 0.86" x 5.0" (86mm x 22mm x 127mm)
Weight 8 oz (approximate)
Power Consumption 3.4 watts
Environment Typical Operating Temperature*: 0-50°C (32° to 122° F )
Storage Temperature:
Humidity
Altitude
Warranty Lifetime
*Operating temperature range for this Slide-In-Module depends on the physical
characteristics and the installation configuration of the TRANSITION Networks
chassis in which this Slide-In-Module will be installed. See the User's Guide for
the chassis in which this Slide-In-Module will be installed for a discussion of
temperature-related installation constraints.
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: CFETF10xx-200 Series Media Converters
Part Number(s): CFETF1011-200, CFETF1012-200, CFETF1013-200, CFETF1014-200,
CFETF1015-200, CFETF1016-200, CFETF1017-200, CFETF1018-200
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the CFETF10xx-200 to which this declaration refers is
in conformity with the following standards.
EMC-CISPR 22: 1985 Class A&B; EN 55022: 1988 Class A&B; EN 50082-1:1992;
EN 60950 A & B4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
-20 to 85°C
10-90%, non condensing
0-10,000 feet
_March 16, 2001_____
Date
