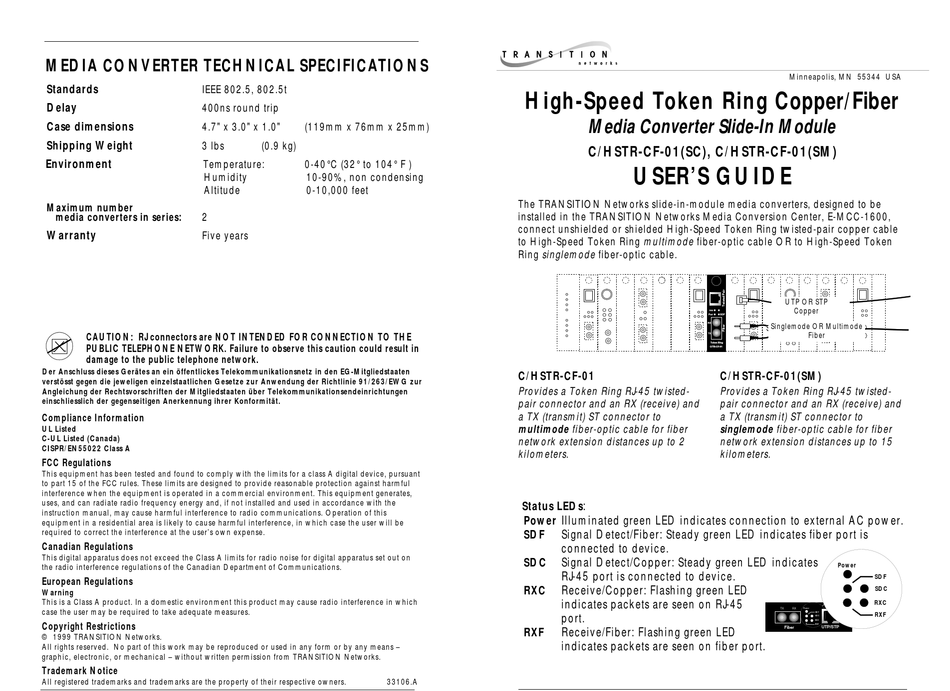

Transition Networks C/HSTR-CF-01(SC) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards IEEE 802.5, 802.5t
Delay
400ns round trip
Case dimensions
4.7" x 3.0" x 1.0"
Shipping Weight
3 lbs
Environment
Temperature:
Humidity
Altitude
Maximum number
media converters in series: 2
Warranty
Five years
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kg)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
33106.A
High-Speed Token Ring Copper/Fiber
Media Converter Slide-In Module
C/HSTR-CF-01(SC), C/HSTR-CF-01(SM)
USER'S GUIDE
The TRANSITION Networks slide-in-module media converters, designed to be
installed in the TRANSITION Networks Media Conversion Center, E-MCC-1600,
connect unshielded or shielded High-Speed Token Ring twisted-pair copper cable
to High-Speed Token Ring multimode fiber-optic cable OR to High-Speed Token
Ring singlemode fiber-optic cable.
C/HSTR-CF-01
Provides a Token Ring RJ-45 twisted-
pair connector and an RX (receive) and
a TX (transmit) ST connector to
multimode fiber-optic cable for fiber
network extension distances up to 2
kilometers.
Status LEDs:
Power Illuminated green LED indicates connection to external AC power.
SDF Signal Detect/Fiber: Steady green LED indicates fiber port is
connected to device.
SDC Signal Detect/Copper: Steady green LED indicates
RJ-45 port is connected to device.
RXC Receive/Copper: Flashing green LED
indicates packets are seen on RJ-45
port.
RXF Receive/Fiber: Flashing green LED
indicates packets are seen on fiber port.
Minneapolis, MN 55344 USA
UTP OR STP
UTP or STP
Copper
Copper
Singlemode OR Multimode
Singlemode OR Multimode
Fiber
Fiber
Token Ring
C/TR-CF-01
C/HSTR-CF-01(SM)
Provides a Token Ring RJ-45 twisted-
pair connector and an RX (receive) and
a TX (transmit) ST connector to
singlemode fiber-optic cable for fiber
network extension distances up to 15
kilometers.
Power
SDF
SDC
RXC
TX RX Power
SDF RXF
SDC
RXC
RXF
Fiber UTP/STP
