TVLogic F-7HS Operation Manual page 17

05 MENU OPERATIONS

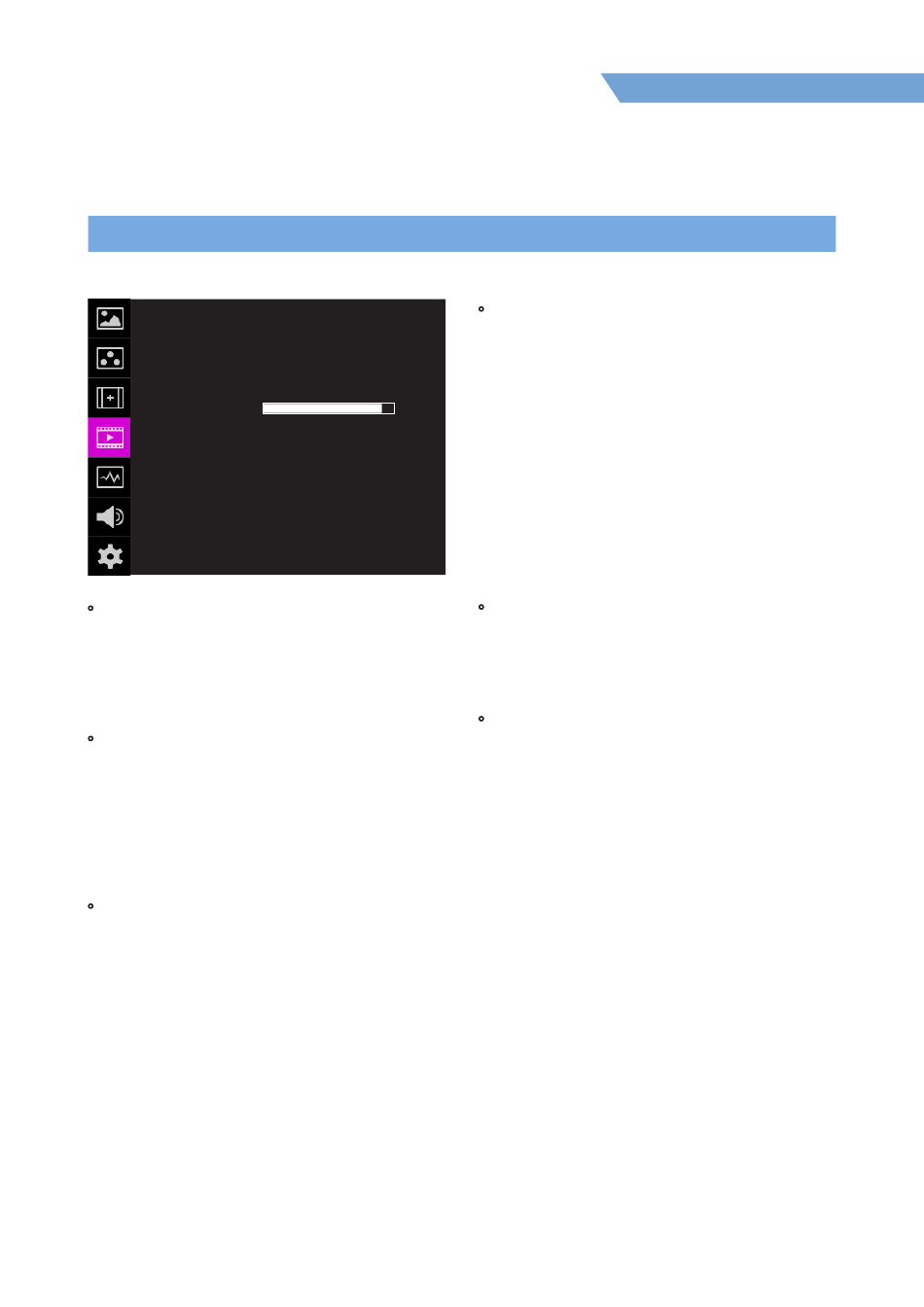

[4] DISPLAY / VIDEO
DISPLAY/VIDEO 이
DSLR SEL
DSLR SCALE
TIMECODE
FOCUS ASSIST
FOCUS AS COLOR
FOCUS AS LEVEL
SCR TALLY
SCR OP LEVEL
SCR TALLY COL
LOW BAT DIS
ARRI CAM STATUS
LDS INFO
INDEX LETTER
• DSLR SEL
- Select the DSLR camera to be used with the
monitor. Available mode is [CANON 7D].
* DSLR cameras' screen size and aspect ratio of
Live / Record / Playback modes vary depending
to their manufacturer.
• DSLR SCALE
- This is a special function for CANON/NIKON DSLR
cameras.
- Used to scale the image with different resolution
as to the operation mode (Live View/ Record/
PlayBack) of the camera to fullfill the screen.
* See section "7. Other Functions [08] DSLR SCALE"
for more information.
• TIMECODE
- Used to set the Time Code.
- Available modes are VITC (UP), VITC (DOWN),
LTC (UP), LTC (DOWN).
F-7HS
CANON 7D
LIVE VIEW
OFF
OFF
RED
+ 90
OFF
LOW
RED
OFF
OFF
OFF
OFF
PAGE (2/2)
• FOCUS ASSIST
- Focus Assist helps the shooters to easily find
out the exact area in the picture with good focus,
simply by adding colors on the shape or
boundaries of the object in the picture.
- Activates in order of [Mono On]-[Color On]-[Off].
* [Color On] : Only the boudary of the area with
good focus is displayed with the designated
color.
* [Mono On] : The boundary of the area with good
focus is colored with the designated color, while
the rest of the areas(pixels) have only Y'(Luma)
signals to be black & white image.
* See section "7. Other Functions [6] Focus Assist"
for more information.
• FOCUS AS COLOR (Focus Assist Color)
- Used to select a color for Focus Assist among
RED, GREEN, BLUE, WHITE.
- This feature is available only when the Focus
Assist mode is activated.
• FOCUS AS LEVEL (Focus Assist Level)
- Used to set the edge difference value between
the edges in an image.
- Available values are from 0 to 100. Larger
the value the more sophisticated the detail
detection.
- Designated color is displayed when the
difference of the edges exceeds the
previously set value.
- This feature is available only when the FOCUS
ASSIST mode is activated.
FHD Hight Bright Field Monitor
17
