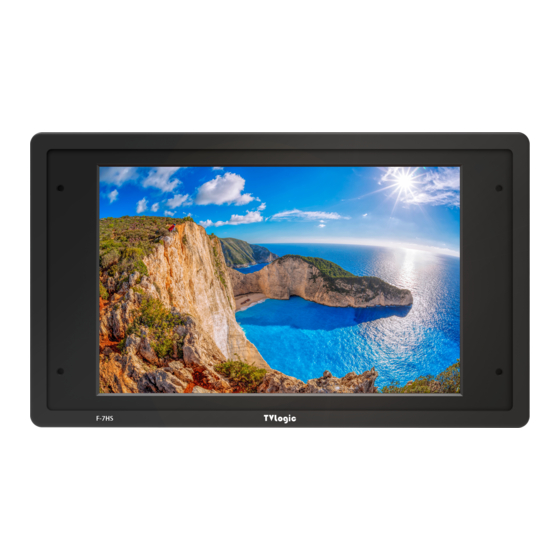

7" full hd high brightness field monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F-7HS
7" Full HD
High Brightness Field Monitor
Operation manual_V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-7HS and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic F-7HS

Summary of Contents for TVLogic F-7HS

  • Page 1 F-7HS 7" Full HD High Brightness Field Monitor Operation manual_V1.1...

  • Page 3: Table Of Contents

    CONTENTS CAUTION MAIN FEATURES CONTROLS & FUNCTIONS MENU TREE & ADJUSTMENT MENU OPERATIONS [1] PICTURE [2] COLOR [3] MARKER [4] DISPLAY / VIDEO [5] WAVEFORM [6] AUDIO [7] SYSTEM BUTTON FUNCTIONS OTHER FUNCTIONS AVAILABLE SIGNAL FORMATS VIDEO SUPPORT RESOLUTION PRODUCT SPECIFICATIONS OPTIONAL ACCESSORIES...

  • Page 4: Caution

    01 CAUTION FHD Hight Bright Field Monitor • Always use set voltage. (DC 12V 1.8A / 34V 0.6A) • Do not attempt to service the product yourself. Removing covers can expose you to high voltage • When using a DC Adapter other than the one and other dangerous conditions.
  • Page 5 01 CAUTION FHD Hight Bright Field Monitor • Do not use the product near water, such as bathtub, • Unplug the power cord from the AC outlet when washbasin, kitchen sink and laundry tub, happening any problem in the product. swimming pool and in a wet basement.

  • Page 6: Main Features

    FHD Hight Bright Field Monitor 02 MAIN FEATURES F-7HS Monitor contains the following features : • Compatible with various SDI signals formats • Audio Level Meter: 16 Channel, Direction - This product is compatible with various SDI adjustable, Pair or Group selectable, Size...

  • Page 7: Controls & Functions

    FHD Hight Bright Field Monitor 03 CONTROLS & FUNCTIONS F-7HS ALL PART MENU<EXIT> SOURCE FUNCTION/ KNOB FUNCTION SELECT PHONEJACK HDMI OUT HDMI IN REAR TALLY SDI OUT SDI IN DC POWER /TALLY POWER BUTTON...
  • Page 8 FHD Hight Bright Field Monitor 03 CONTROLS & FUNCTIONS TOP / FRONT • [MENU/EXIT/SOURCE] Button - Used to activate the OSD menu. - When the OSD menu is activated, press this button to exit from the menu. - Press the button for more than 2 seconds to activate Input Select menu.
  • Page 9 • [USB] - Signal input terminal for HD/SD/3G SDI signal. - This terminal is used to upgrade the firmware or color calibration made by TVLogic. • [POWER] Switch - Used to turn the power on and off. • [DC POWER / TALLY] (XLR 4P) - Tally Signal In Level DC 5V ±2V...

  • Page 10: Menu Tree & Adjustment

    1. Press MENU button to activate the OSD menu. • This Picture is the menu structure for F-7HS. 2. Move to a desired menu using the Knob. 3. Press the Knob to select a menu and move to select a sub-menu by scrolling the Knob.

  • Page 11: Menu Operations

    FHD Hight Bright Field Monitor 05 MENU OPERATIONS [1] PICTURE • KNOB LOCK PICTURE 같이 F-7HS - Locks the Knob control. BRIGHT - If [KNOB LOCK] is set to [LOCK], the Knob is CONTRAST activated only when the OSD pops up.
  • Page 12 • PEAK LUMINANCE - This mode is supported by the local dimming - Used to select the Peak Luminance of the backlight model and does not support F-7HS. monitor. - Selectable levels are [100] ~ [1000] with 100 increment, [1000] ~ [10000] with 1000 increment.
  • Page 13 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [2] COLOR • SG (System Gamma) COLOR같이 F-7HS - The System Gamma of HLG is automatically STANDARD calculated and displayed according to the set VIDEO RANGE LIMITED109 [PEAK LUMINANCE]. PEAK LUMINANCE - Activates only when the EOTF is set to HLG and BLACK LEVEL 0.001...
  • Page 14 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [2] COLOR • COLOR COPY COLOR같이 F-7HS - Used to copy the R/G/B Gain value of pre-stored COLOR TEMP 6500K color temperature settings. GAIN RED - In User mode, find and select the color...
  • Page 15 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [3] MARKER MARKER같이 F-7HS ENABLE MARKER CENTER MARKER SAFETY AREA FIT MARKER MARKER MAT MARKER : 4:3 MARKER : 4:3 MARKER COLOR WHITE SAFETY AREA : 90% SAFETY AREA : 90% THICKNESS...

  • Page 16: Display / Video 16P

    FHD Hight Bright Field Monitor 05 MENU OPERATIONS [4] DISPLAY / VIDEO • USER ASPECT HORIZONTAL/USER ASPECT DISPLAY/VIDEO이 F-7HS VERTICAL SCAN ZERO SCAN - Activated only when the [SCAN] mode is set to ASPECT AUTO [User Aspect] . H/V DELAY...
  • Page 17 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [4] DISPLAY / VIDEO • FOCUS ASSIST DISPLAY/VIDEO 이 F-7HS - Focus Assist helps the shooters to easily find DSLR SEL CANON 7D out the exact area in the picture with good focus, DSLR SCALE...
  • Page 18 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [4] DISPLAY / VIDEO • LDS INFO (Lens Data System Information) DISPLAY/VIDEO이 F-7HS - Used to se set the information display of the Lens DSLR SEL CANON 7D Data System. DSLR SCALE...
  • Page 19 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [5] WAVEFORM • SIZE WAVEFORM F-7HS - Adjust the size of the Waveform or Vectorscope. ENABLE - Available options are [SMALL] and [LARGE]. TYPE * See section “7. Other Function [2] Waveform/ INTENSITY Vectorscope“...
  • Page 20 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [5] WAVEFORM • Y MAX WAVEFORM F-7HS - Used to set the maximum Luma(Y’) level from 0 ENABLE to 255. TYPE - Pixels with values exceeding the maximum INTENSITY luma(Y’) level blink on the screen, and are...
  • Page 21 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [6] AUDIO • LEVEL METER AUDIO F-7HS - Used to set the Level Meter for the embedded VOLUME audio. Em. AUD LEFT CH 01 - Available options are : Em. AUD RIGHT CH 02 SDI Input : [Off]-[16CH(Hor.)]-[16CH(Ver.)]...
  • Page 22 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [7] SYSTEM • DISPLAY ENABLE SYSTEM F-7HS - Used to set the LUMINANCE to the minimum DEFAULT value when the time set in the still image output LUMINANCE is exceeded. INTERNAL PAT...
  • Page 23 FHD Hight Bright Field Monitor 05 MENU OPERATIONS [7] SYSTEM • POWER LED SYSTEM F-7HS - Used to turn on or off the Power LED on the back DEFAULT of the monitor. LUMINANCE - [ON]: When the monitor power is on, the Power INTERNAL PAT LED on the back turns green.

  • Page 24: Button Functions

    SDI A VOLUME HDMI + 15 1920 x 1080 50p • F-7HS unit is capable of processing SDI/ BRIGHTNESS HDMI Input Signal. 1. Press the [MENU<EXIT>] button on the top of the monitor for more than 2 seconds and activate the input selection menu as shown CONTRAST above.
  • Page 25 FHD Hight Bright Field Monitor 06 BUTTON FUNCTIONS FUNCTION BUTTON [3] FUNCTION BUTTON • Used to make a quick setting of the Function Key. F1 FUNC.SEL 1. Press the function button(F1~F3) on the top of SCAN the monitor for more than 2 seconds and ASPECT activate the OSD menu as follows.

  • Page 26: Other Functions

    FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [1] USER ASPECT • Used to adjust the Width /Height display ratio. 1. There are two ways activate [USER ASPECT] mode. - Go to MENU → DISPLAY/VIDEO → SCAN and select the [USER ASPECT] mode. - Assign [ASPECT] mode to one of the Function button, press the Function button and select the [USER ASPECT] mode.
  • Page 27 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [2] WAVEFORM / VECTORSCOPE • WAVEFORM Y - Displays the Luma(Y’) component of the input signal into waveform. • The Waveform/ Vectorscope function can be used only when the input signal is YUV. •...
  • Page 28 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [3] LINE SELECT (WAVEFORM / VECTORSCOPE) • Used to select specific Vertical Line for WaveForm / VectorScope. - This is available when LINE WaveForm is activated. - To activate this feature, set [WAVEFORM] - [LINE WAVEFORM] - [ON], and select the desired horizontal line using the KNOB in [SEL LINE POS].
  • Page 29 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [4] ZOOM • Used to magnify the input signal from 0% to 90%. • Supports Zoom Width Scroll / Zoom Height Scroll function. • Zooms IN/OUT focused on the scrolled area. ZOOM WIDTH HEIGHT <ZOOM OFF>...
  • Page 30 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [5] LUMA (Y') ZONE CHECK • COLOR PATTERN TYPE • ZEBRA PATTERN TYPE - Displays the pixels with the designated - Displays the pixels with the designated Luma(Y’) levels of the input image in colors. Luma(Y’) levels of the input image in zebra Pixels whose Y’...
  • Page 31 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [6] FOCUS ASSIST • Focus Assist function assigns a color on the pixels of the shape or boundary of the image, which helps the user easily see which part of the image is in focus or out of focus. - With this function, the user can easily differentiate the focused area from the out-focused area especially when shooting with a shallow depth of field.
  • Page 32 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [7] RANGE ERROR • Pixels with Y’ or C’ levels exceeding the designated levels of Y MAX, Y MIN, C MAX and C MIN shall blink. - Analyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink.
  • Page 33 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [8] DSLR SCALE • This function is designed for some DSLR cameras of Canon(7D) that output different resolution from the operation mode (StandBy, Record, Play Back) • Select the Camera model in the [Display/Vide]- [DSLR Camera Sel.] menu. •...
  • Page 34 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [9] HDMI To SDI CONVERSION-OUT / SDI To HDMI CONVERSION-OUT HDMI TO SDI CONVERSION-OUT SDI TO HDMI CONVERSION-OUT • Video source from ‘HDMI input’ terminal can be • 3G/HD/SD SDI signals from ‘SDI input’ terminal output through ‘SDI throughout’...
  • Page 35 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [10] SCREEN TALLY / REAR TALLY • Activates with the Rear Tally on the rear of the monitor at the same time. • Screen TALLY On/Off - Used to set Tally operation according to the input level of TALLY IN terminal which is among the terminals of XLR 4P connector in the rear.
  • Page 36 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [11] INTERNAL PATTERN • Displays internally generated test patterns. - The pattern consists of Color Bar + Pluge pattern and Grayscale patterns. Full screen colors of various gray levels (0~100%) are also embedded. <Color Bar + Pluge Pattern>...
  • Page 37 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [12] ARRI CAM STATUS • Used to display the camera status information provided by ARRI ALEXA camera on the OSD. - Displays the information in the order: [Project FPS]-[Exposure Time]-[White Balance]-[White Balance CC]- [Camera Index Letter] / [Lens Name]-[Focal Length]-[Iris]-[Focus Distance] / [Lens Squeeze Factor]-[Scene] - When the Arri Cam Status is activated, the screen will be scaled to 1742 x 980.
  • Page 38 FHD Hight Bright Field Monitor 07 OTHER FUNCTIONS [13] MAX BRIGHTNESS • This function sets the brightness of the panel. • Available values are below : - INDOOR : 100 nits - OUTDOOR : 1500 nits - MAXIMUM : 1800 nits [14] FIRMWARE UPGRADE •...

  • Page 39: Available Signal Formats

    FHD Hight Bright Field Monitor 08 AVAILABLE SIGNAL FORMATS INPUT SIGNAL DISPLAY CHARACTER EXAMPLE HDMI 480 / 59.94i (NTSC) 720x480 60i ● ● 480 / 60p 720x480 60p ● 576 / 50i (PAL) 720x576 50i ● ● 576 / 50p 720x576 50p ●...

  • Page 40: Video Support Resolution

    FHD Hight Bright Field Monitor 09 VIDEO SUPPORT RESOLUTION INPUT SIGNAL INTERFACES SIGNAL FORMAT (SD SDI) SD SDI 720x487 (59.94i) YCbCr 4:2:2 10bit single link 720x576 (50i) INPUT SIGNAL INTERFACES SIGNAL FORMAT (HD SDI) 1920x1080 (23.98/24/25/29.97/30p) HD SDI (50/59.94/60I) YCbCr 4:2:2 10bit single link (24/25/29.97/30psf) 1280x720...

  • Page 41: Product Specifications

    FHD Hight Bright Field Monitor 10 PRODUCT SPECIFICATIONS Specifications F-7HS Size 7” Resolution 1920×1200 (16:10) Pixel Pitch 0.07875(H) X 0.07875(V) mm Color Depth 1.073B Colors (10 bit) Viewing Angle 160°(H) / 160°(V) 1800 nits(Max) Luminance of white Contrast Ratio 1200 : 1 Display Area 151.2(H) X 94.5(V) mm...

  • Page 42: Optional Accessories

    HDMI Bracket for F-7H / F-7H mk2 / F-7HS Camera Mount for F-7H / F-7H mk2 / F-7HS TH-Mount-F7H (Screw head length 20mm) Battery Adapter for F-7H / F-7H mk2 / F-7HS/ F-10A V-Mount-F7H-C (Cost effective) Battery Adapter for F-7H / F-7H mk2 / F-7HS/ F-10A...
  • Page 43 D-Tap-L cable / F-7H / F-7H mk2 / F-7HS / F-10A (Long - 29" length) Battery Bracket for F-7H / F-7H mk2 / F-7HS / F-10A BB-F7H-S (Sony NP-F770/F970) Battery Bracket for F-7H / F-7H mk2 / F-7HS / F-10A...
  • Page 44 FHD Hight Bright Field Monitor 11 OPTIONAL ACCESSORIES Model Product Description Battery Bracket for F-7H / F-7H mk2 / F-7HS / F-10A BB-F7H-P (Panasonic CGA/VB Series) Battery Bracket for F-7H / F-7H mk2 / F-7HS / F-10A BB-F7H-U (Sony BP-U30/U60)
