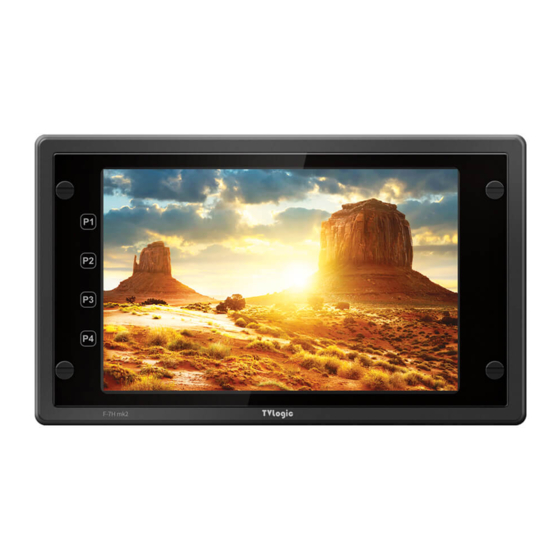

TVLogic F-7H Operation Manual

7" fhd high bright field monitor, multi, always on air
Hide thumbs
Table of Contents

Advertisement

Quick Links

7" FHD High Bright
Field Monitor
F-7H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-7H and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic F-7H

Summary of Contents for TVLogic F-7H

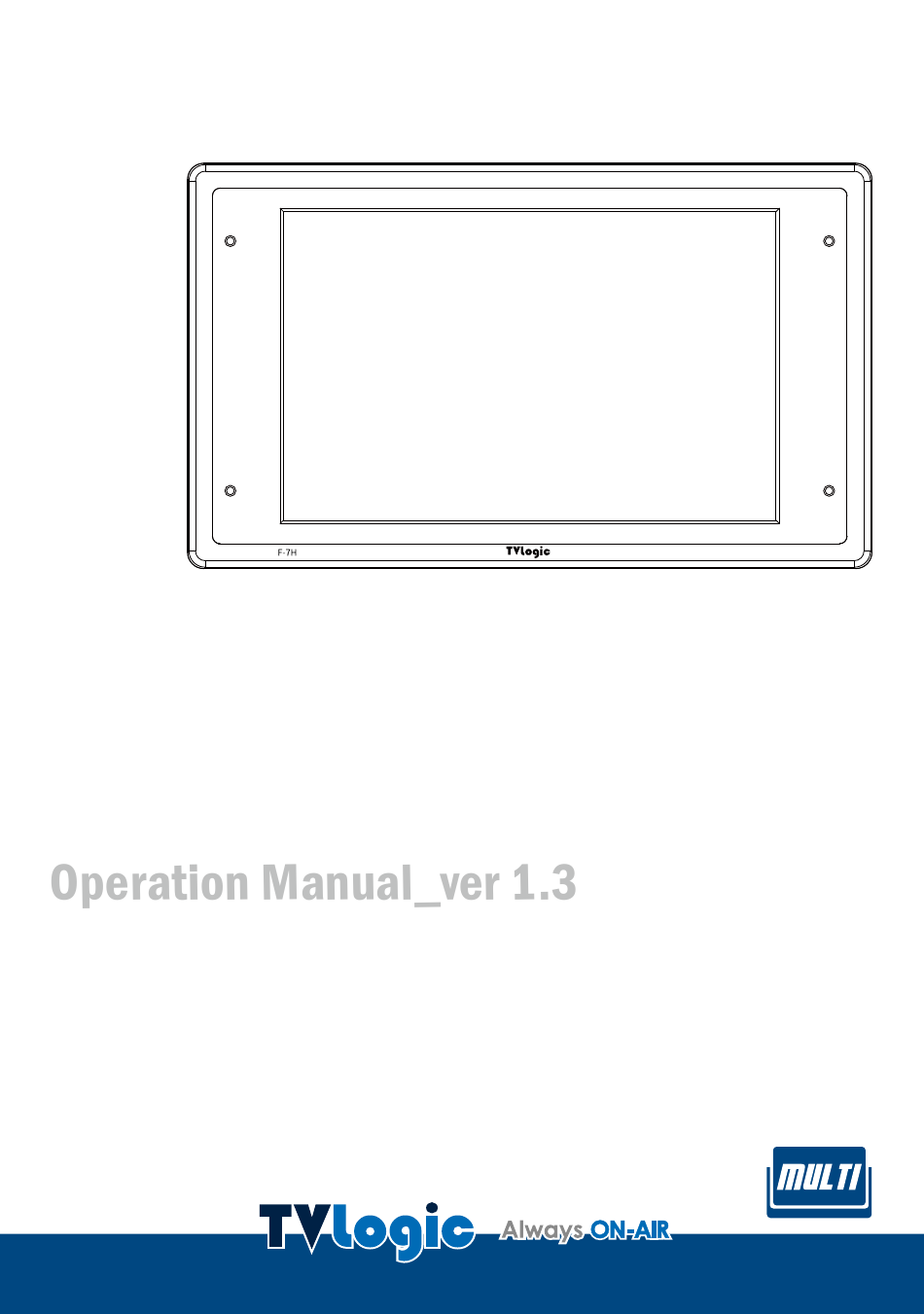

  • Page 1 7” FHD High Bright Field Monitor F-7H...

  • Page 3: Table Of Contents

    Contents ..................1. Caution ................2. Main Features ..............3. Controls & Functions ............. 4. Menu Tree & Adjustment ................ 5. Menu Operations .................. [1] Picture ..................[2] Color .................. [3] Marker ..................[4] Video ................[5] Waveform ..................[6] Audio .................

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 6.8~12V) • • Never insert an object into the product through vents or openings. High voltage in the When using a DC Adapter other than the product, and inserting an object can cause •...
  • Page 5 1. Caution • When mounting the product on a wall or ceiling, • Unplug the power cord from the AC outlet be sure to install the product according to the when happening any problem in the product. method recommended by the manufacturer. •...

  • Page 6: Main Features

    2. Main Features F-7H Monitor contains the following features : • Compatible with various SDI signals • Knob Control formats (SD/HD/3G) - Easy to adjust user configuration using the - This product is compatible with various control knob on the top of the monitor.

  • Page 7: Controls & Functions

    3. Controls & Functions FRONT/SIDE/REAR/TOP MENU<EXIT> SOURCE FUNCTION/ KNOB FUNCTION SELECT PHONEJACK HDMI OUT HDMI IN REAR TALLY SDI OUT SDI IN DC POWER /TALLY POWER BUTTON...
  • Page 8 - When the OSD menu is activated, press this firmware or color calibration made by button to exit from the menu. TVLogic. - Press the button for more than 2 seconds to activate Input Select menu. (SDI, HDMI) - Use the [ENCODER] Knob to change the Input Signal.
  • Page 9 3. Controls & Functions SIDE REAR • [HDMI IN] • [REAR TALLY] - Signal input terminal for HDMI signal. - Activates same as [SCREEN TALLY]. • [HDMI OUT] • [DC POWER / TALLY] (XLR 4P) - Signal output terminal for HDMI signal. - Tally Signal In Level DC5V ±2V - Video source from SDI input terminal can - Battery Power Input terminal for DC 12V...

  • Page 10: Menu Tree & Adjustment

    • Menu control sequence follows the order use varous different functions. below. • This Picture is the menu structure for 1. Press MENU button to activate the OSD F-7H. menu. 2. Move to a desired menu using the Knob. PICTURE 같이...

  • Page 11: Menu Operations

    5. Menu Operations [1] PICTURE • 3DLUT LOAD PICTURE 같이 F-7H - Used to apply the internally stored 3DLUT. BRIGHT - Maximum 3 x 3DLUT files can be stored. CONTRAST CHROMA - The file name can be set up to 20 APERTURE characters including the extension.

  • Page 12: Color

    BLACK LEVEL 0.001 environment. For example, the lowest COLOR GAMUT BT.2020 luminance that the F-7H can display is COLOR TEMP 6500K EOTF 0.002, but it is necessary to adjust the offset LOCAL DIMMING level to about 0.2nit when using under...
  • Page 13 5. Menu Operations [2] COLOR • SG (System Gamma) COLOR같이 F-7H - The System Gamma of HLG is automatically STANDARD calculated and displayed according to the VIDEO RANGE NARROW set peak luminance. PEAK LUMINANCE - Activates only when the EOTF is set to HLG BLACK LEVEL 0.001...
  • Page 14 5. Menu Operations [2] COLOR • COLOR SPACE COLOR같이 F-7H - Used to select the standard color space. TEMP COLOR 6500K_60P - Available options are BT.709, DCI-P3, BT.2020 GAIN RED GAIN GREEN and Native. GAIN BLUE BIAS RED BIAS GREEN...

  • Page 15: Marker

    5. Menu Operations [3] MARKER • FIT MARKER MARKER같이 F-7H - Used to activate or inactivate the Fit Marker ENABLE function. MARKER CENTER MARKER - When the Marker type is selected in the SAFETY AREA Marker menu, a border line of the Safety FIT MARKER Area will be displayed inside the Marker.
  • Page 16 5. Menu Operations [3] MARKER MARKER같이 F-7H ENABLE MARKER CENTER MARKER SAFETY AREA FIT MARKER MARKER MAT MARKER COLOR WHITE THICKNESS USER MARKER H1 USER MARKER H2 +1920 USER MARKER V1 USER MARKER V2 +1080 • USER MARKER H1 - Used to set the position of the first horizontal marker line.

  • Page 17: Video

    5. Menu Operations [4] VIDEO • BLUE ONLY VIDEO이 F-7H - Used to switch in the order of [Off ]-[Blue SCAN ZERO SCAN Only]-[Mono]-[Off ]. ASPECT 16:9 H/V DELAY - Press the button to remove red and green BLUE ONLY...
  • Page 18 5. Menu Operations [4] VIDEO VIDEO이 F-7H SCAN ZERO SCAN ASPECT 16:9 H/V DELAY BLUE ONLY USER ASPECT HOR USER ASPECT VER 3G FORMAT NORMAL H/V FLIP ZOOM ZOOM SPLIT PAGE (1/2) • H/V FLIP - Allows the displayed image to be flipped horizontally or vertically.
  • Page 19 5. Menu Operations [4] VIDEO • FOCUS ASSIST VIDEO이 F-7H - Focus Assist helps the shooters to easily find DSLR CANON 7D out the exact area in the picture with good DSLR SCALE LIVE VIEW TIMECODE focus, simply by adding colors on the shape FOCUS ASSIST or boundaries of the object in the picture.
  • Page 20 5. Menu Operations [4] VIDEO VIDEO이 F-7H DSLR CANON 7D DSLR SCALE LIVE VIEW TIMECODE FOCUS ASSIST FOCUS AS COLOR FOCUS AS LEVEL + 90 SCR TALLY SCR OP LEVEL SCR TALLY COL LOW BAT DIS PAGE (2/2) • SCR TALLY...

  • Page 21: Waveform

    5. Menu Operations [5] WAVEFORM • SIZE WAVEFORM F-7H - Adjust the size of the Waveform or ENABLE Vectorscope. TYPE INTENSITY + 90 - Can select among [NORMAL] and [LARGE]. TRANS OPAQUE * See section “7. Other Function [2] Waveform/...
  • Page 22 5. Menu Operations [5] WAVEFORM • RANGE ERROR WAVEFORM F-7H - Used to set whether or not to activate Y ENABLE MAX, Y MIN, C MAX, C MIN, Y PICTURE BLINK TYPE INTENSITY + 90 and C PICTURE BLINK functions.
  • Page 23 5. Menu Operations [5] WAVEFORM Y PICTURE BLINK • WAVEFORM F-7H - Used to set whether or not to blink pixels ENABLE with values exceeding Y MAX and Y MIN. TYPE INTENSITY + 90 TRANS OPAQUE C PICTURE BLINK •...

  • Page 24: Audio

    5. Menu Operations [6] AUDIO • LEVEL METER AUDIO F-7H - Used to set the Level Meter for the VOLUME + 90 embedded audio. AUD LEFT AUD RIGHT - Available options are : LEVEL METER SDI Input : [Off ]-[16CH(Hor.)]-[16CH(Ver.)]...

  • Page 25: System

    5. Menu Operations [7] SYSTEM • DISPLAY ENABLE SYSTEM F-7H - Used to set the LUMINANCE to the DEFAULT + 48 minimum value when the time set in the still LUMINANCE INTERNAL PAT image output is exceeded. SW UPGRADE - When video is output or the MENU button is...

  • Page 26: Button Functions

    [2] Function Key Set Button F1 FUNC.SEL HDMI SCAN NO VIDEO ASPECT MARKER • F-7H unit is capable of processing H/V DELAY SDI /HDMI Input signal. BLUE ONLY 1. Press the[MENU<EXIT]button on the front ZOOM of the monitor for more than 2 seconds...

  • Page 27: Other Functions

    7. Other Functions [1] User Aspect • Used to adjust the Width /Height display USER ASPECT ratio. WIDTH +1920 1. Select [Aspect] mode in the OSD menu by HEIGHT +1080 pressing the function button on the right top of the monitor to activate the [USER ASPECT] mode.
  • Page 28 7. Other Functions [2] Waveform / Vectorscope • Waveform Y • VectorScope - Displays the Luma(Y’) component of the - Displays the color components ‘B-Y’ and ‘R-Y’ input signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 29 7. Other Functions [3] Line Select (Waveform/VectorScope) [4] Zoom • Used to select specific Vertical Line for • Used to magnify the input signal from 0% WaveForm/VectorScope. to 90%. - This is available when LINE WaveForm is - Supports Zoom Width Scroll / Zoom Height activated.
  • Page 30 7. Other Functions [5] Luma(Y’) Zone Check • Color Pattern Type • Zebra Pattern Type - Displays the pixels with designated Luma(Y’) - Displays the Luma(Y’) level of the input levels with zebra pattern. image in colors. - Y’ ≥ 100%: Pixels with Y’ level over 100% turn - Y’...
  • Page 31 7. Other Functions [7] Range Error [6] Focus Assist • Pixels with Y’ or C’ levels exceeding the • Focus Assist function assigns a color to the pixels in the shape or the boundary of the designated levels of Y MAX, Y MIN, C MAX and C MIN shall blink.
  • Page 32 7. Other Functions [8] DSLR Scale • This function is designed for some DSLR cameras of Canon(7D) that output different resolution from the operation mode (StandBy, Record, Play Back) • Select the Camera model in the [Display/ Vide]- [DSLR Camera Sel.] menu. •...
  • Page 33 7. Other Functions [10] SDI To HDMI Conversion-Out [9] HDMI To SDI Conversion-Out • Video source from ‘HDMI input’ terminal 3G/HD/SD SDI signals from ‘SDI input’ ● can be output through ‘SDI throughout’ terminal can be output through ‘HDMI out’ terminal. terminal.
  • Page 34 7. Other Functions [11] Screen Tally/Rear Tally [12] Internal Pattern • Activates with the Rear Tally on the rear of • Displays internally generated test patterns. the monitor at the same time. - The pattern consists of ColorBar and Pluge+ Grayscale Patterns.
  • Page 35 7. Other Functions [13] Firmware Upgrade • The USB(Thumb drive) which contains the F/W file is needed for Firmware Upgrade. • Select the SW UPGRADE in the SYSTEM menu. 1. Connect the USB to the USB Slot on the front of the monitor. 2.

  • Page 36: Available Signal Formats

    8. Available Signal Formats This unit is applicable to the following signal formats : "Display Character Input Signal HDMI Example" 480 / 59.94i (NTSC) 720x480 60i ● ● 480 / 60p 720x480 60p ● 576 / 50i (PAL) 720x576 50i ●...

  • Page 37: Video Support Resolution

    9. Video Support Resolution VIDEO Support Resolution Input Signal Signal Foramt (SD SDI) Interfaces 720x487 SD SDI (59.94i) YCbCr 4:2:2 10bit single link 720x576 (50i) Input Signal Signal Format (3G SDI) Interfaces 1920x1080 (60p/59.94p/50p) YCbCr 4:2:2 10bit 3G-SDI (A/B) single link 1920x1080 (30/29.97/25/24/23.98/ RGB 4:4:4 10bit / 12bit 30sF/29.97sF/25sF/24sF/23.98sF)

  • Page 38: Product Specifications

    10. Product Specifications F-7H Size 7” Resolution 1920×1080 (16:9) Pixel Pitch 0.079(H) X 0.076(W) mm Color Depth 16.7M Luminance of white 3600 cd/ m (Max.) Contrast Ratio 1200 : 1 Display Area 151.2(H)x94.5(V) mm 1 X HDMI HDMI Input 1Ch...

  • Page 39: Optional Accessories

    Product Description BH-1 Ball Head for VFM-058W, 055A / F-7H BH-2 Ball Head for VFM-058W, 055A / F-7H TH-Mount 05 Camera Mount for VFM-056WP, 058W, 055A / F-7H Battery Bracket for F-7H BB-F7H-S (Sony NP-F770/F970) Battery Bracket for F-7H BB-F7H-C...
  • Page 40 Battery Bracket for F-7H BB-F7H-E (Canon LP-E6 Series, DSLR EOS 5D/7D) Battery Bracket for F-7H BB-F7H-B (Panasonic AF-100) V-Mount-F7H-C Battery Adapter for F-7H V-Mount-F7H Battery Adapter for F-7H (IDX V-Mount Plate) AB-mount-F7H (AP) Anton-Bauer(Gold) Battery Adapter for F-7H G-Mount-F7H (EMEA)
  • Page 41 / F-7H (Coil Type) D-Tap Adapter for VFM-056WP, 058W, 055A D-Tap-S cable & LVM-074, 070C, 075A / SRM-074W(-N) / F-7H (short - 17" length) D-Tap Adapter for VFM-056WP, 058W, 055A D-Tap-L cable & LVM-074W, 070C, 075A / SRM-074W(-N) / F-7H (Long - 29" length)
  • Page 42 MEMO...
  • Page 44 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 18590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
