1. Caution Always use set voltage. • Never insert an object into the product ● AC 100 ~ 240V (1.6A/50~60Hz) through vents or openings. High voltage flows ● DC 12/24V in the product, and inserting an object can ● cause electric shock and/or short internal parts. •...
Page 5
1. Caution • Upon completion of service or repair work, • When relocating the product placed on a cart, request the service technician to perform safety it must be moved with the utmost care. checks to ensure that the product is in proper Sudden stops, excessive force and uneven floor operating condition.

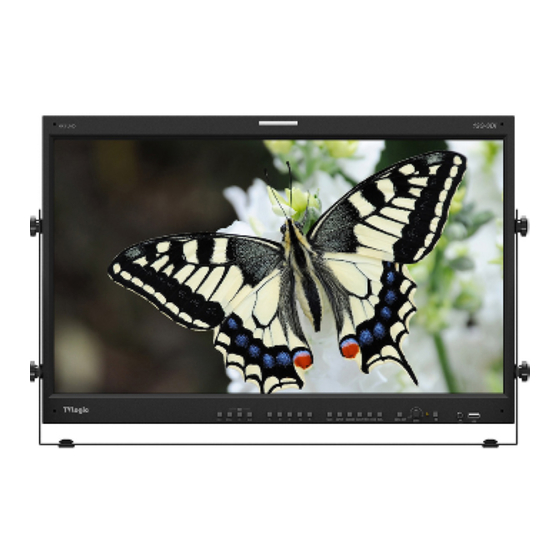

2. Main Features LUM-240G Monitor contains the following features: Compatible with various SDI signal Additional features ● ● formats - Wide Viewing Angle, Active Loop - This product is compatible with various SDI Through(SDI), VESA Mounting Standard and signals - 720P, 1080p.
B.LIGHT SDI SINGLE VIDEO RANGE QUAD MARKER 2 SDI B.LIGHT ASPECT QUAD MARKER SCAN ASPECT LUM-240G : REAR SCAN DC OUT RS-422 IN DC OUT RS-422 OUT RS-422 IN RS-422 OUT SDI-IN (A~D) SDI-OUT (A~D) SDI-IN (A~D) DC IN SDI-OUT (A~D)
Page 8
3. Controls & Functions FRONT [HDMI] Button/Lamp [F1 ~ F5] Button/Lamp ● ● - Used to select HDMI input. - Shortcut key for KEY MAPPING feature in the OSD MENU. [SINGLE-SDI] Button/Lamp - Selectable options are as follows : ● - Used to select SDI input for one channel.
Page 9
3. Controls & Functions FRONT [SCAN] Button [MENU/EXIT] Button ● ● - Used to activate various scan mode (Zero - Used to activate/deactivate the OSD menu. Scan, 2:1 Scan, 1:1 Scan, Fit Width, Over Scan) - Press the MENU button again to deactivate the OSD menu.
Page 10
3. Controls & Functions LUM-240G : REAR [REMOTE] (RJ-45) [Audio in] ● ● - Provides connection to control equipment - Used to connect the audio input signal. for external monitor control. [LAN] - Features can be changed in the GPI section of ●...
4. Menu Organization & Adjustment [1] Menu Organization [3] Menu Adjustment Procedure The product may be controlled and set Menu control sequence follows the order ● ● system-wise through OSD displayed on below: the screen. 1. Press MENU button to bring the OSD menu on the screen.
Page 12
4. Menu Organization & Adjustment [4] Menu Tree Brightness Marker Contrast Center Marker Chroma Safety Area PICTURE Aperture Fit Marker Aspect Marker Mat MARKER 3G format Marker Color Video Range Select Marker Thickness Color Temp. User Marker H1 Gain Red User Marker H2 Gain Green User Marker V1...
5. Menu Operations [1] PICTURE & VIDEO 3G Format ● - Automatically detects when Payload signal appears in Normal Mode. - Selects input format for SDI 3G A/B support (NORMAL MODE, A 444 10BIT_YCbCr, A 444 10BIT_RGB, A 444 12BIT_YCbCr, A 444 12BIT_ RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_ YCbCr, B 444 10/12BIT_RGB, B 422 12BIT_ YCbCr, B 422 10BIT_YCbCr, 60P).
5. Menu Operations [2] COLOR Bias Red ● - Used to set Red Bias from -100 to 100. - Adjusts the red color of dark section. - Only available in CUSTOM 1/2/3 mode. Bias Green ● - Used to set Green Bias from -100 to 100. - Adjusts the red color of dark section.
Page 15
5. Menu Operations [2] COLOR Back Light ● - Used to control the backlight level of the LCD panel. - Available values are between MIN(0) and MAX(100). Higher value means brighter screen. Color Space ● - Used to select color space and the mode will be changed as the sequence below.
5. Menu Operations [3] GPI Menu Classifi- Settable Values cation NONE SINGLE-SDI 2SI-SDI QUAD-SDI HDMI UNDER SCAN 1:1 SCAN ASPECT H/V DELAY This item activates/ deactivates the ● BLUE ONLY REMOTE function. MONO The user may designate a function for ●...
Page 17
- Use to apply changed value of IP Address, Subnet mask, Gateway and Port no. Monitor ID ● - This item sets the ID of each monitor for the TVLogic control protocol using RS-422/485 communication. - Available values are 0~127. DHCP ●...
5. Menu Operations [4] MARKER Fit Marker ● - The item activates the FIT MARKER function. - With FIT MARKER On the safety area is displayed relative to the marker in use. With FIT MARKER Off the safety area is displayed relative to the incoming source.
Page 19
5. Menu Operations [4] MARKER USER Marker H1 ● - The item controls the position of the first user defined horizontal marker line. - Marker option USER needs to be selected. USER Marker H2 ● - The item controls the position of the second user defined horizontal marker line.
5. Menu Operations [5] LUMA(Y") & FOCUS Focus Assist Level ● - Used to set the edge difference value between the edges in an image. - Available values are from 0 to 100. Larger value means more sophisticated detail detection. - Designated color is displayed when the difference of the edges exceeds the previously set value.
5. Menu Operations [6] AUDIO Level Meter Size ● - Used to control the size of the Audio Level Meters. - Available modes are Small, Small Translucent, Normal, Normal Translucent, Large and Large Translucent. - In Small, Normal and Large Modes, the level meter appears semitransparent.
5. Menu Operations [7] DISPLAY & SET S/W Upgrade Start ● - Select the S/W Upgrade Start menu to start the firmware upgrade. - Do not turn off the monitor while the upgrade is conducting. Time Code ● - Used to set the Time Code. - Available modes are OFF, VITC and LTC.
Page 23
5. Menu Operations [7] DISPLAY & SET Board Version ● - Displays the current Program Version of the monitor. 0001 0001 0.01 9 KEYPAD VERSION MCU VERSION FPGA VERSION CPU VERSION F1 Key Mapping ● - User can select the function for the F1 button. F2 Key Mapping ●...
5. Menu Operations [8] INFORM. Bit Depth ● - Displays the Bit Depth information of the Payload ID Byte 4. Link Assignment ● - Displays the Channel Assignment information of the Payload ID Byte 4. Input Channel ● - Indicates the channel of the input signal. - In the 2SI, QUAD MODE, use the KNOB button to change the input signal and the information of the signal will be displayed.
6. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160 (23.98/24/25/29.97/30p/Psf) HD-SDI YCbCr 4:2:2 10bit Quad link (4K) 4096x2160 (23.98/24/25/29.97/30p/Psf) Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160(50/59.94/60p) YCbCr 4:2:2 10bit YCbCr 4:4:4 10/12bit 3840x2160 (23.98/24/25/29.97/30/p/Psf) RGB 4:4:4 10/12bit...
Page 26
6. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HDMI) 720x480(60i) RGB 4:4:4 8/10/12bit 720x576(50i) YCbCr 4:4:4 8/10/12bit 720x480(60p) 720x576(50p) RGB 4:4:4 8/10/12bit 1280x720(60p) YCbCr 4:4:4 8/10/12bit 1920x1080(50/59.94/60i) YCbCr 4:2:2 12bit 1920x1080(50/59.94/60p) 800x600@60Hz HDMI 1024x768@60Hz Single link(4K) VESA 1280x1024@60Hz 1600x1200@60Hz...
7. Product Specifications LUM-240G Size 23.8” Resolution 3840 X 2160 (16:9) Pixel Pitch 0.13725(H) X 0.13725(V) mm Color Depth 1.07B Colors (A-FTC 10bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 350 cd/ m...
Page 32
FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
