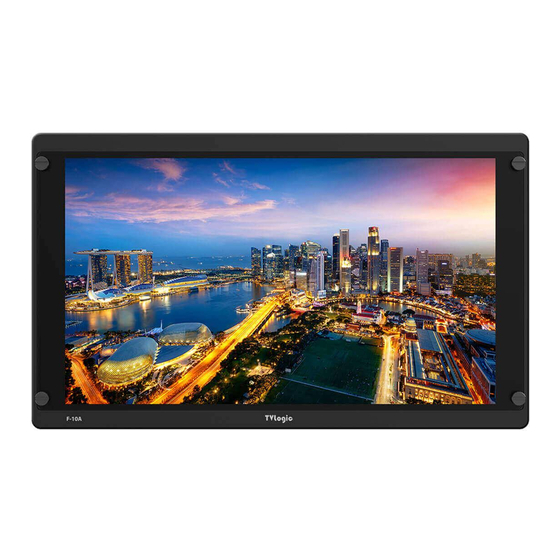

TVLogic F-10A Operation Manual

Field production monitor
Hide thumbs

Advertisement

Table of Contents

FIELD
PRODUCTION
MONITOR
F-10A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-10A and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic F-10A

Summary of Contents for TVLogic F-10A

  • Page 1 FIELD PRODUCTION MONITOR F-10A...
  • Page 3 CONTENTS CAUTIO MAIN FEATURES CONTROLS & FUNCTIONS MENU TREE & ADJUSTMENT MENU OPERATIONS [1] PICTURE [2] COLOR [3] MARKER [4] VIDEO [5] WAVEFORM [6] AUDIO [7] SYSTEM BUTTON FUNCTIONS OTHER FUNCTIONS AVAILABLE SIGNAL FORMATS VIDEO SUPPORT RESOLUTION OUTPUT SIGNAL FORMATS PRODUCT SPECIFICATIONS OPTIONAL ACCESSORIES...
  • Page 4 01 CAUTION Field Production Monitor Field Production Monitor • Always use set voltage. (DC 6V 1.8A / 34V 0.32A) • Do not attempt to service the product yourself. Removing covers can expose you to high voltage • When using a DC Adapter other than the one and other dangerous conditions.
  • Page 5 01 CAUTION Field Production Monitor • Do not use the product near water, such as bathtub, • Unplug the power cord from the AC outlet when washbasin, kitchen sink and laundry tub, happening any problem in the product. swimming pool and in a wet basement. •...

  • Page 6: Main Features

    Field Production Monitor 02 MAIN FEATURES F-10A Monitor contains the following features : • Compatible with various SDI signals formats • Knob Control (SD/HD/3G) - Easy to adjust user configuration using the - This product is compatible with various SDI control knob on the top of the monitor.

  • Page 7: Controls And Functions

    Field Production Monitor 03 CONTROLS & FUNCTIONS F-10A ALL PART MENU<EXIT> SOURCE FUNCTION F1~F6 KNOB PHONEJACK HDMI OUT HDMI IN REAR TALLY SDI OUT SDI IN/OUT (SELECT) ETHERNET SDI IN POWER BUTTON DC POWER...

  • Page 8: Top & Bottom

    - This terminal is used to upgrade the firmware or - When the OSD menu is activated, press this color calibration made by TVLogic. button to exit from the menu. - Press the button for more than 2 seconds to activate Input Select menu.
  • Page 9 Field Production Monitor 03 CONTROLS & FUNCTIONS SIDE & REAR • [HDMI IN] • [REAR TALLY] - Signal input terminal for HDMI signal. - Activates same as [SCREEN TALLY]. • [HDMI OUT] • [DC POWER / TALLY] (XLR 4P) - Signal output terminal for HDMI signal. - Rated Power Input : DC 6V 1.8A / 34V 0.32A - Video source from SDI input terminal can be * When using a DC Adapter other than the one...

  • Page 10: Menu Tree & Adjustment

    1. Press MENU button to activate the OSD menu. • This Picture is the menu structure for F-10A 2. Move to a desired menu using the Knob. 3. Press the Knob to select a menu and move to PICTURE 같이...

  • Page 11: Menu Operations

    Field Production Monitor Field Production Monitor 05 MENU OPERATIONS [1] PICTURE • KNOB LOCK PICTURE 같이 F-10A - Locks the Knob control. BRIGHT CONTRAST • 3DLUT LOAD CHROMA SHARPNESS - Used to apply the internally stored 3DLUT. PEAKING BOOST - Maximum 3 x 3DLUT files can be stored.
  • Page 12 For example, the lowest luminance BLACK LEVEL 0.001 COLOR GAMUT BT.2020 that the F-10A can display is 0.002, but it is COLOR TEMP 6500K necessary to adjust the offset level to about EOTF 0.2nit when using under bright light.
  • Page 13 Field Production Monitor 05 MENU OPERATIONS [2] COLOR • SG (System Gamma) COLOR같이 F-10A - The System Gamma of HLG is automatically STANDARD calculated and displayed according to the set VIDEO RANGE LIMITED 109 peak luminance. PEAK LUMINANCE - Activates only when the EOTF is set to HLG and BLACK LEVEL 0.001...
  • Page 14 Field Production Monitor 05 MENU OPERATIONS [2] COLOR • COLOR SPACE COLOR같이 F-10A - Used to select the standard color space. TEMP COLOR 6500K_60P - Available options are BT.709, DCI-P3, BT.2020 and GAIN RED Native. GAIN GREEN GAIN BLUE BIAS RED...
  • Page 15 Field Production Monitor 05 MENU OPERATIONS [3] MARKER MARKER같이 F-10A ENABLE MARKER CENTER MARKER SAFETY AREA FIT MARKER MARKER : 4:3 MARKER : 4:3 MARKER MAT SAFETY AREA : 90% SAFETY AREA : 90% MARKER COLOR WHITE FIT MARKER : OFF...
  • Page 16 Field Production Monitor 05 MENU OPERATIONS [4] VIDEO • USER ASPECT HORIZONTAL/USER ASPECT VIDEO이 F-10A VERTICAL SCAN ZERO SCAN - Activated only when the [SCAN] mode is set to ASPECT 16:9 [User Aspect] . H/V DELAY - User can adjust the Horizontal and Vertical size...
  • Page 17 Field Production Monitor 05 MENU OPERATIONS [4] VIDEO • FOCUS AS LEVEL (Focus Assist Level) VIDEO이 F-10A - Used to set the edge difference value between TIMECODE the edges in an image. FOCUS ASSIST - Available values are from 0 to 100. Larger the...
  • Page 18 Field Production Monitor 05 MENU OPERATIONS [5] WAVEFORM • SIZE WAVEFORM F-10A - Adjust the size of the Waveform or Vectorscope. ENABLE - Can select among [NORMAL] and [LARGE]. TYPE INTENSITY • LINE WAVEFORM TRANS OPAQUE SIZE SAMLL - This item is utilized to display the entire data or LINE WAVEOFORM one line data on the Waveform.
  • Page 19 Field Production Monitor 05 MENU OPERATIONS [5] WAVEFORM • Y MAX WAVEFORM F-10A - Used to set the maximum Luma(Y’) level from 0 ENABLE to 255. TYPE - Pixels with values exceeding the max Y’ level will INTENSITY blink on the screen, and be displayed in red on...
  • Page 20 Field Production Monitor 05 MENU OPERATIONS [6] AUDIO • LVM DISPLAY (Level Meter Display) AUDIO F-10A - Used to set the display method for audio level VOLUME meter. AUD LEFT - Available modes are Group and Pair. AUD RIGHT * In the HDMI mode, the mode is set to Pair.
  • Page 21 Field Production Monitor 05 MENU OPERATIONS [7] SYSTEM • ECO SAVING SYSTEM F-10A - Used to save power consumption automatically DEFAULT when there is no monitor signal. LUMINANCE - When the signal is supplied, the brightness of INTERNAL PAT the monitor will be changed to the set value.
  • Page 22 Field Production Monitor 05 MENU OPERATIONS [7] SYSTEM PIN1~PIN8 ● SYSTEM F-10A - This item activates/ inactivates the REMOTE POWER LED function. EXTERNAL FAN - The user may designate a function for each pin and each pin’s default setting is as follows.

  • Page 23: Button Functions

    ASPECT HDMI NO VIDEO MARKER NO VIDEO H/V DELAY BLUE ONLY • F-10A unit is capable of processing SDI/HDMI ZOOM Input signal. ZOOM SPLIT FREEZE 1. Press the[MENU<EXIT]button on the front of AUDIO LVM the monitor for more than 2 seconds and TIME CODE activate the OSD menu as shown on the below.

  • Page 24: Other Functions

    Field Production Monitor 07 OTHER FUNCTIONS [1] USER ASPECT • Used to adjust the Width /Height display ratio. 1. Select [Aspect] mode in the OSD menu by pressing the function button on the right top of the monitor to activate the [USER ASPECT] mode. 2.

  • Page 25: Waveform / Vectorscope

    Field Production Monitor 07 OTHER FUNCTIONS [2] WAVEFORM / VECTORSCOPE WAVEFORM Y ● - Displays the Luma(Y’) component of the input signal into waveform. • The Waveform/ Vectorscope function can be used only when the input signal is YUV. • In the case of RGB input, Waveform RGB is supported. •...
  • Page 26 Field Production Monitor 07 OTHER FUNCTIONS [3] LINE SELECT (WAVEFORM/VECTORSCOPE) • Used to select specific Vertical Line for WaveForm/VectorScope. - This is available when LINE WaveForm is activated. - To activate this feature, go to [Waveform]-[Waveform/Vector]-[Line Waveform]-[Select Line Position] and use the Knob to select a vertical line.
  • Page 27 Field Production Monitor 07 OTHER FUNCTIONS [4] ZOOM • Used to magnify the input signal from 0% to 90%. - Supports Zoom Width Scroll / Zoom Height Scroll function. - Zooms IN/OUT focused on the scrolled area. <ZOOM OFF> <ZOOM 75%> <ZOOM 50%>...
  • Page 28 Field Production Monitor 07 OTHER FUNCTIONS [5] LUMA (Y') ZONE CHECK • COLOR PATTERN TYPE - Displays the Luma(Y’) level of the input image in colors. - Y’ ≥ 100% : Pixels with higher Y’ level than 100 turn to red. - Y’...

  • Page 29: Focus Assist

    Field Production Monitor 07 OTHER FUNCTIONS [6] FOCUS ASSIST • Focus Assist function assigns a color to the pixels in the shape or the boundary of the image to inform the user to achive the best focus. - With this function, user can easily differenciate the focused area from the out-focused area especially when shooting with a shallow depth of field.
  • Page 30 Field Production Monitor 07 OTHER FUNCTIONS [7] RANGE ERROR • Pixels with Y’ or C’ levels exceeding the designated levels of Y MAX, Y MIN, C MAX and C MIN shall blink. - Analyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink.
  • Page 31 Field Production Monitor 07 OTHER FUNCTIONS [8] HDMI To SDI SDI To HDMI CONVERSION-OUT / SDI To HDMI CONVERSION-OUT HDMI TO SDI CONVERSION-OUT SDI TO HDMI CONVERSION-OUT • Video source from ‘HDMI input’ terminal can be 3G/HD/SD SDI signals from‘SDI input’ terminal ●...

  • Page 32: Internal Pattern

    Field Production Monitor 07 OTHER FUNCTIONS [9] INTERNAL PATTERN • Displays internally generated test patterns. - The pattern consists of ColorBar and Pluge+ Grayscale Patterns. Full screen colors of various gray levels (0~100%) are also embedded. <Color Bar + Pluge Pattern> <Gray Pattern>...

  • Page 33: Firmware Upgrade

    Field Production Monitor 07 OTHER FUNCTIONS [10] FIRMWARE UPGRADE • The USB(Thumb drive) which contains the F/W file is needed for Firmware Upgrade. • Select the SW UPGRADE in the SYSTEM menu. 1. Connect the USB to the USB Slot on the front of the monitor. 2.

  • Page 34: Available Signal Formats

    Field Production Monitor 08 AVAILABLE SIGNAL FORMATS INPUT SIGNAL DISPLAY CHARACTER EXAMPLE HDMI 480 / 59.94i (NTSC) 720x480 60i ● ● 480 / 60p 720x480 60p ● 576 / 50i (PAL) 720x576 50iW ● ● 576 / 50p 720x576 50p ●...

  • Page 35: Video Support Resolution

    Field Production Monitor 09 VIDEO SUPPORT RESOLUTION INPUT SIGNAL INTERFACES SIGNAL FORMAT (SD SDI) SD SDI 720x487 (59.94i) YCbCr 4:2:2 10bit single link 720x576 (50i) INPUT SIGNAL INTERFACES SIGNAL FORMAT (HD SDI) 1280x720 (50/59.94/60P) HD SDI 1920x1080 (23.98/24/25/29.97/30p) (50/59.94/60I) YCbCr 4:2:2 10bit single link (24/25/29.97/30psf) INPUT SIGNAL INTERFACES...

  • Page 36: Output Video Formats

    Field Production Monitor 10 OUTPUT VIDEO FORMATS * Active Through : same as input format F-10A OUTPUT VIDEO FORMAT SDI OUT HDMI OUT Frame rate SDI-IN/OUT SDI-IN/OUT Input Video Format HDMI SDI-OUT PORT (CAM LUT OFF) (CAM LUT ON) 720 x 480i 59.94...

  • Page 37: Product Specifications

    Field Production Monitor 11 PRODUCT SPECIFICATIONS F-10A Size 10” Resolution 1920×1080 (16:9) Pixel Pitch 0.11475(H) X 0.11475(W) mm Color Depth 16.7M Viewing Angle (Typ.) 160º(H)/160º(V) Luminance of white 300 cd/ m (Max.) Contrast Ratio 1000 : 1 Display Area 220.3(H)x123.9(V) mm 1 X HDMI HDMI 2.0 Input...

  • Page 38: Optional Accessories

    Sun Hood for F-10A CC-F10 Aluminum Carrying Case for F-10A Camera Mount for F-7H / F-7H mk2 TH-Mount-F7H (Screw head length 20mm) HDMI BKT-F10 HDMI Bracket for F-10A AB-mount-F7H (AP) Anton-Bauer(Gold) Battery Adapter for G-Mount-F7H (EMEA) F-7H / F-7H mk2 / F-10A...
  • Page 39 / F-7H (Coil Type) / F-7H mk2 / F-10A D-Tap Adapter for VFM-056WP, 058W, 055A D-Tap-S cable & LVM-074, 070C, 075A / SRM-074W(-N) / F-7H (short - 17" length) / F-7H mk2 / F-10A D-Tap Adapter for VFM-056WP, 058W, 055A D-Tap-L cable & LVM-074W, 070C, 075A / SRM-074W(-N) / F-7H (Long - 29"...
  • Page 40 Field Production Monitor 12 OPTIONAL ACCESSORIES Model Product Description Battery Bracket for F-7H / F-7H mk2 / F-10A BB-F7H-U (Sony BP-U30/U60) Battery Bracket for F-7H / F-7H mk2 / F-10A BB-F7H-E (Canon LP-E6 Series, DSLR EOS 5D/7D) Battery Bracket for F-7H / F-7H mk2 / F-10A...
  • Page 41 Field Production Monitor MEMO...
  • Page 42 Field Production Monitor MEMO...
  • Page 44 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 08590, KOREA 부사장 조 성 일 153-802 서울특별시 금천구 가산동 345-4 TEL: +82-70-8668-6611, FAX: 82-2-6123-3201, E-mail: sales@tvlogic.co.kr 에이스하이엔드 8차 12층 Mobile. 010-2520-6837 전화. 070-8668-6611 (대표) sicho@tvlogic.co.kr 070-8667-8079 (직통)
