Summary of Contents for TVLogic TSM-232W

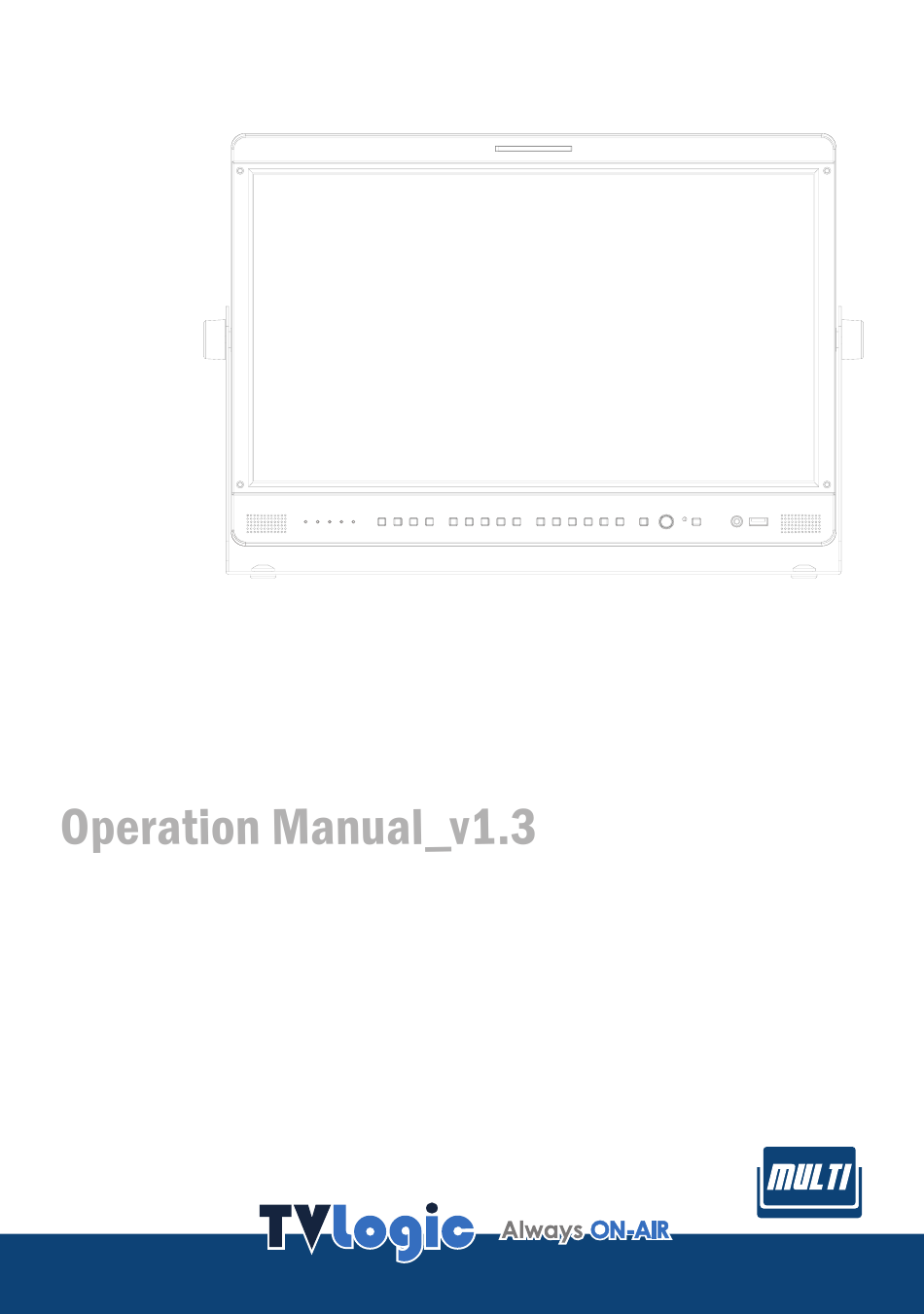

  • Page 1 TVLogic Security Monitor TSM-182W TSM-232W...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Organization & Adjustment 5. Menu Operations [1] PICTURE [2] COLOR [3] PIP [4] CONTROL [5] AUDIO [6] DISPLAY & SET 6. Firmware Upgrage 7. Button Functions 8. Other Functions 9.

  • Page 4: Caution

    • Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. 4 TVLogic Security Monitor...
  • Page 5 When other heat generating products (including mounting the product on a wall, be sure to amplifiers). follow the manufacturer’s instruction. Use only the mounting hardware recommended by the manufacturer. TVLogic Security Monitor 5...

  • Page 6: Main Features

    - built-in internal speaker (Embedded audio & External audio in) - Stereo audio out using phone jack & external audio in Knob Control ● - Easy to adjust user configuration using the control knobs. Internal pattern generator(0~100% Gray/ ● Colorbar+Pluge) 6 TVLogic Security Monitor...

  • Page 7: Controls & Functions

    HDMI CVBS HDMI CVBS DVI-I SDI IN DVI-I SDI IN SDI OUT SDI OUT AUDIO IN AUDIO IN POWER S/W REMOTE AC IN RS-422 OUT RS-422 IN POWER S/W REMOTE AC IN RS-422 OUT TVLogic Security Monitor 7 RS-422 IN...
  • Page 8 - Used to change color temperature in order of - Used to select MAIN signal. 3200K -> 5600K -> 6500K -> 9300K -> User 1 -> User 2 -> User 3 [SDI] Button/Lamp ● - Used to select MAIN signal. 8 TVLogic Security Monitor...
  • Page 9 [USB] ● - Used to firmware-update with USB memory stick(Thumb drive) or color-calibrate the monitor connecting PC. [SPEAKER] ● - Used to output Embedded Audio or external audio. TVLogic Security Monitor 9...
  • Page 10 - Provides connection to control equipment for external monitor control. - Features can be changed in the [REMOTE] section of OSD menu. [RS422 IN/OUT] (RJ-45) ● - Controls the monitor by a protocol provided by TVLogic or supports TSL protocol. 10 TVLogic Security Monitor...

  • Page 11: Menu Organization & Adjustment

    (Verified by highlighted field returning to default black color) 6. Press MENU to remove OSD menu from the screen. [2] Menu Adjustment You may control various functions ● using MENU, UP/DOWN and ENTER buttons on the bottom front of the monitor. TVLogic Security Monitor 11...

  • Page 12: Menu Operations

    Aperture ● - Controls the picture sharpness of the screen. Control range is from 0 to 24. # Sharpness can be adjusted by using a control knob on the front of the monitor. 12 TVLogic Security Monitor...
  • Page 13 - The item adjusts the input signal automatically. Phase, Clocks/Line, and Image Position are also adjusted. #If the image does not display correctly after the Auto Adjustment, select it again for correct adjustment. Auto Adjustment activates automatically when input signal resolution changes. TVLogic Security Monitor 13...

  • Page 14: Color

    - The item is used to copy pre-stored color temperature settings into a USER1/2/3 mode. - In USER mode, find and select the color temperature to be used as a starting point of custom color temperature. #Only in USER1/2/3, it is activated. 14 TVLogic Security Monitor...

  • Page 15: Control

    RS- output through [AUDIO OUT] in front of the 422/485 communication or network through monitor. a protocol TVLogic provides. - The available range is 0~30. - Each PIN functions are fixed. Em. Audio left/right ●...

  • Page 16: Display & Set

    - firmware-updates with USB memory stick(Thumb drive). Serial Number ● - Shows serial number. S/W upgrade start ● - When S/W upgrade is [On], the monitor detects USB memory stick, and update is available, it is activated. 16 TVLogic Security Monitor...

  • Page 17: Firmware Upgrage

    * During the update, the monitor screen is off, and nothing functions. * After the update, TVLogic logo shows up on the screen, and the monitor initializes. * Update can take 10~20min. depending on firmware kind.

  • Page 18: Button Functions

    #None of HDMI and DVI-Digital can be co- selected as each main input and PIP/PBP at the same time. 18 TVLogic Security Monitor...
  • Page 19 #None of HDMI and DVI-Digital can be co- selected as each main input and PIP/PBP at the same time. TVLogic Security Monitor 19...

  • Page 20: Other Functions

    #If no image displays after selecting the desired input mode, check and make sure that your connection is not lose or disconnected. None of HDMI and DVI-Digital can be co- selected as each main input and PIP/PBP at the same time. 20 TVLogic Security Monitor...
  • Page 21 - Zero Scan : Magnifies or reduces the original image and displays it without loss of the ratio of the image. DOWN DOWN <CENTER> <TOP LEFT > <TOP RIGHT > DOWN DOWN <BOTTOM RIGHT > <BOTTOM LEFT > <Position Change in 1:1 SCAN > TVLogic Security Monitor 21...
  • Page 22 - Control range for width : width and height as TSM-182W : 1366X582 TSM-182W : Min[100] ~ Max[1366] TSM-232W : 1920X817. TSM-232W : Min[100] ~ Max[1920] - Control range for height : TSM-182W : Min[100] ~ Max[768] TSM-232W : Min[100] ~ Max[1080] - The size-adjusted picture always stay in the center of the screen.
  • Page 23 1. It provides a stopped image from displaying Supports Zoom Width Scroll / Zoom ● picture on the screen. Height Scroll function. Zooms IN/OUT focused on the scrolled ● area. <ZOOM OFF> <ZOOM 50%> <ZOOM 75%> TVLogic Security Monitor 23...
  • Page 24 USER3. FULL. 2. You can use PBP function for all input signal TSM model supports. * You cannot use HDMI and DVI-Digital together in PBP function at the same time. <PBP-Aspect> <PBP-Full> <PBP Picure Size> 24 TVLogic Security Monitor...
  • Page 25 BOTTOM-RIGHT, TOP-LEFT and TOP-RIGHT. 1. PIP picture sizes are PIP SMALL and PIP LARGE. * You cannot use HDMI and DVI-Digital together in PIP function at the same time. <Bottom-Left> <Bottom-Right> <PIP MODE> <Top-Left> <Top-Right> <PIP picture position> TVLogic Security Monitor 25...
  • Page 26 3. [Color Temp.] : Current color temperature <SWAP in PIP mode> 4. [Scan] : Current scan setting status 5. [Aspect] : Current aspect ratio setting status 6. [User config.] 7. [Key LED] <SWAP in PBP mode> 26 TVLogic Security Monitor...

  • Page 27: Dvi / Hdmi Support Resolution

    DVI DIGITAL mode is separated into Graphic mode and Video mode. ● In DVI ANALOG/DIGITAL mode, ZERO scan must be selected for normal function. ● If the input image is in non-wide mode, press ASPECT button to change to wide display. ● TVLogic Security Monitor 27...
  • Page 28 9. DVI / HDMI Support Resolution DVI ANALOG / DIGITAL /HDMI SUPPORT RESOLUTION (TSM-232W) DVI-ANALOG mode supports the following modes : ● Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768...

  • Page 29: Product Specifications

    550 X 450 X 280 (21.65 X 17.72 X 11.02) Weight 5.1kg / 11.24lbs Basic Accessories AC Power Cord / Stand / Manual Optional Accessories Rack Mountable Kit, Acrylic Filter * The specification above may be changed without notice. TVLogic Security Monitor 29...
  • Page 30 675 X 535 X 280 (26.57 X 21.06 X 11.02) Weight 6.9kg / 14.11lbs Basic Accessories AC Power Cord / Stand / Manual Optional Accessories Rack Mountable Kit, Acrylic Filter * The specification above may be changed without notice. 30 TVLogic Security Monitor...

  • Page 31: Optional Accessories

    11. Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch TVLogic Security Monitor 31...
  • Page 32 MEMO 32 TVLogic Security Monitor...
  • Page 33 MEMO TVLogic Security Monitor 33...
  • Page 34 MEMO 34 TVLogic Security Monitor...
  • Page 36 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...

This manual is also suitable for:

Tsm-182w
