Perlesmith PSLTK1 Instruction Manual page 9

3A-1
3A-2
02
3A-3
OR
01
(NOT lncluded)

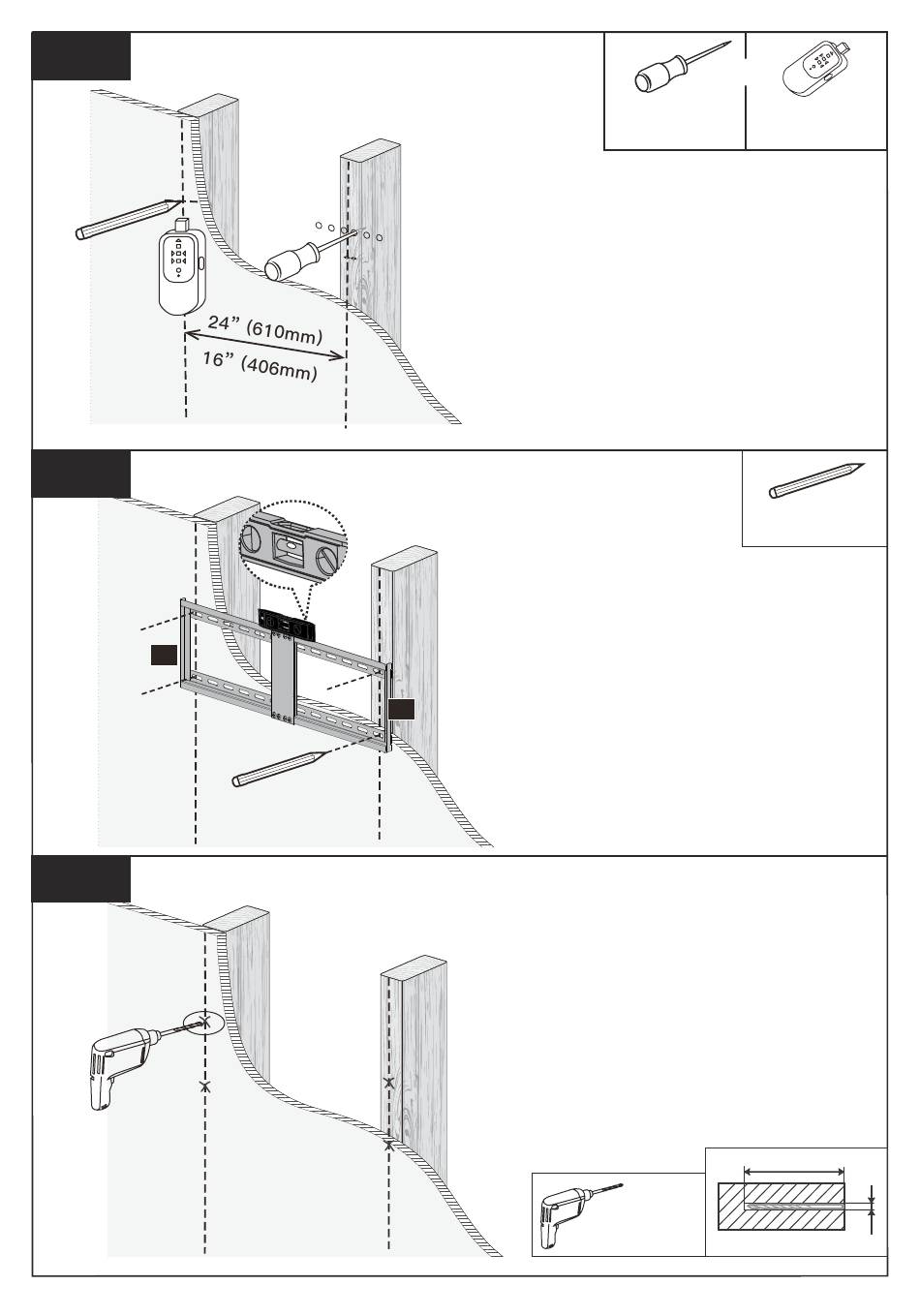

Use a stud finder (NOT included) to
locate wood studs or use an awl
(NOT included) to verify the edges.
Mark the edge and center locations.
Position the wall plate [01] and [02]
at your desired height and line up
the holes with your stud center line.
Level the wall plate [01] and [02]
and mark the holes.
Drill 4 pilot holes using a 7/32"
(5.5mm) diameter drill bit. Make
sure the depth is NOT less than 2
3/4" (70mm).
(NOT lncluded)
08
OR
Awl
Stud Finder
(NOT lncluded)
Pencil
(NOT lncluded)
2 3/4" (70mm)
Drill
ø7/32" (5.5mm)
