NOTE:
Lag Screw
x 4
A1
ST5/16 x 2-3/4"
Wall
A2 x 4
Anchor
φ10mm

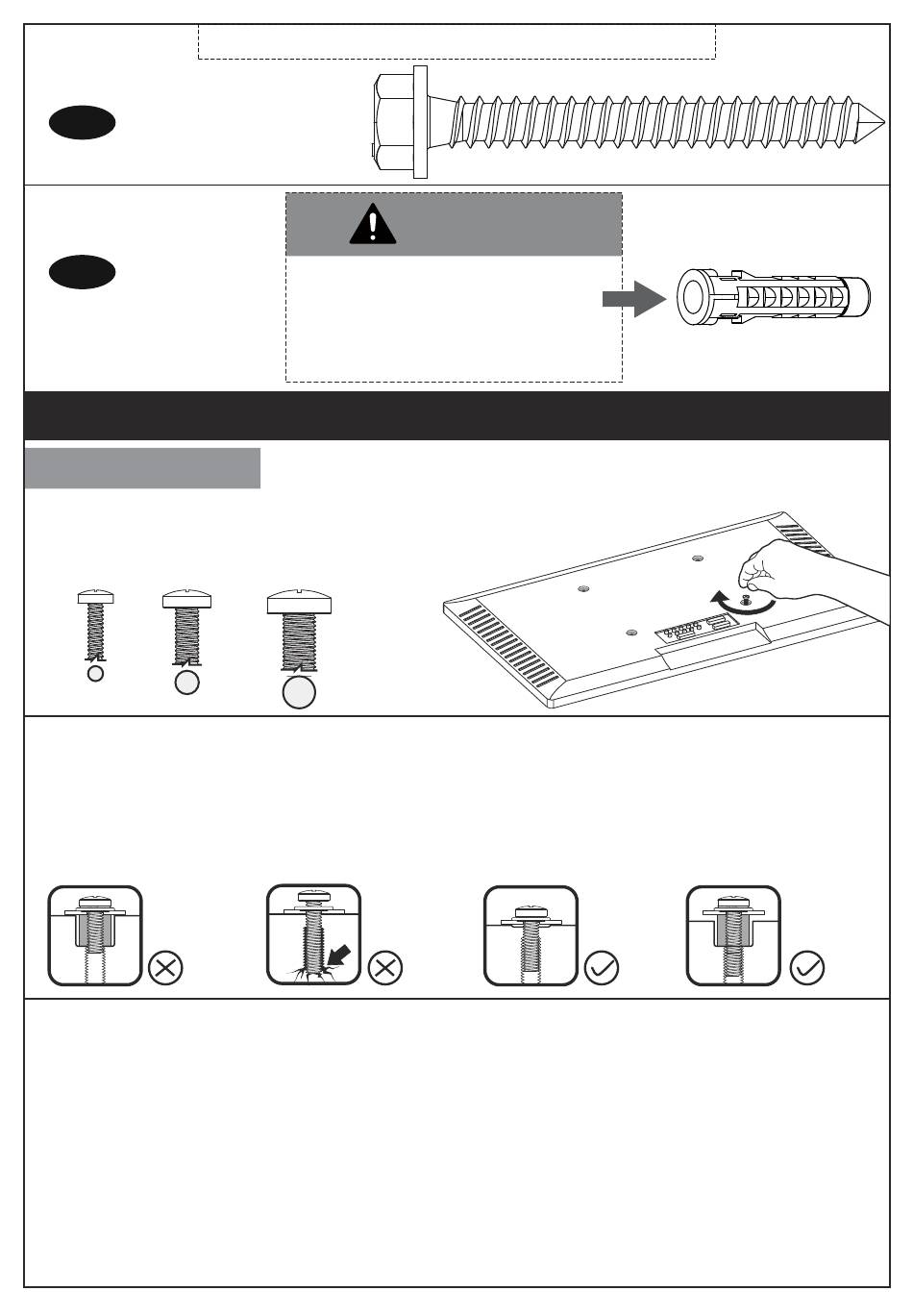

Step 1 Secure the TV Brackets [03] and [04] to TV
Select TV Bolts
Only one size of the fits your TV.
M4 M6
BOLT LENGTH: Verify adequate thread engagement with bolts or bolts /
spacers combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
PLEASE NOTE: The provided TV bolts meet most of today's TVs design.
However, some TVs require special bolts which may NOT be in the hardware
bag. In this case, we offer our "PSUHP" Universal Hardware Kit which
provides a large selection of bolts that can meet the demand of older and
unique applications.
IMPORTANT: When using the spacers, it is important to note that they can be
used in multi-layers (meaning stacked). If you have any difficulty undestand-
ing how to install the TV bolts or spacers, please contact customer service at
supportus@perlesmith.com.
The lag screw shown is actual size.
CAUTION!
This anchor is
crete or brick walls
ONLY. DO NOT use them in
drywall or wood studs.
M8
Too Long
04
for con-
Correct Correct
