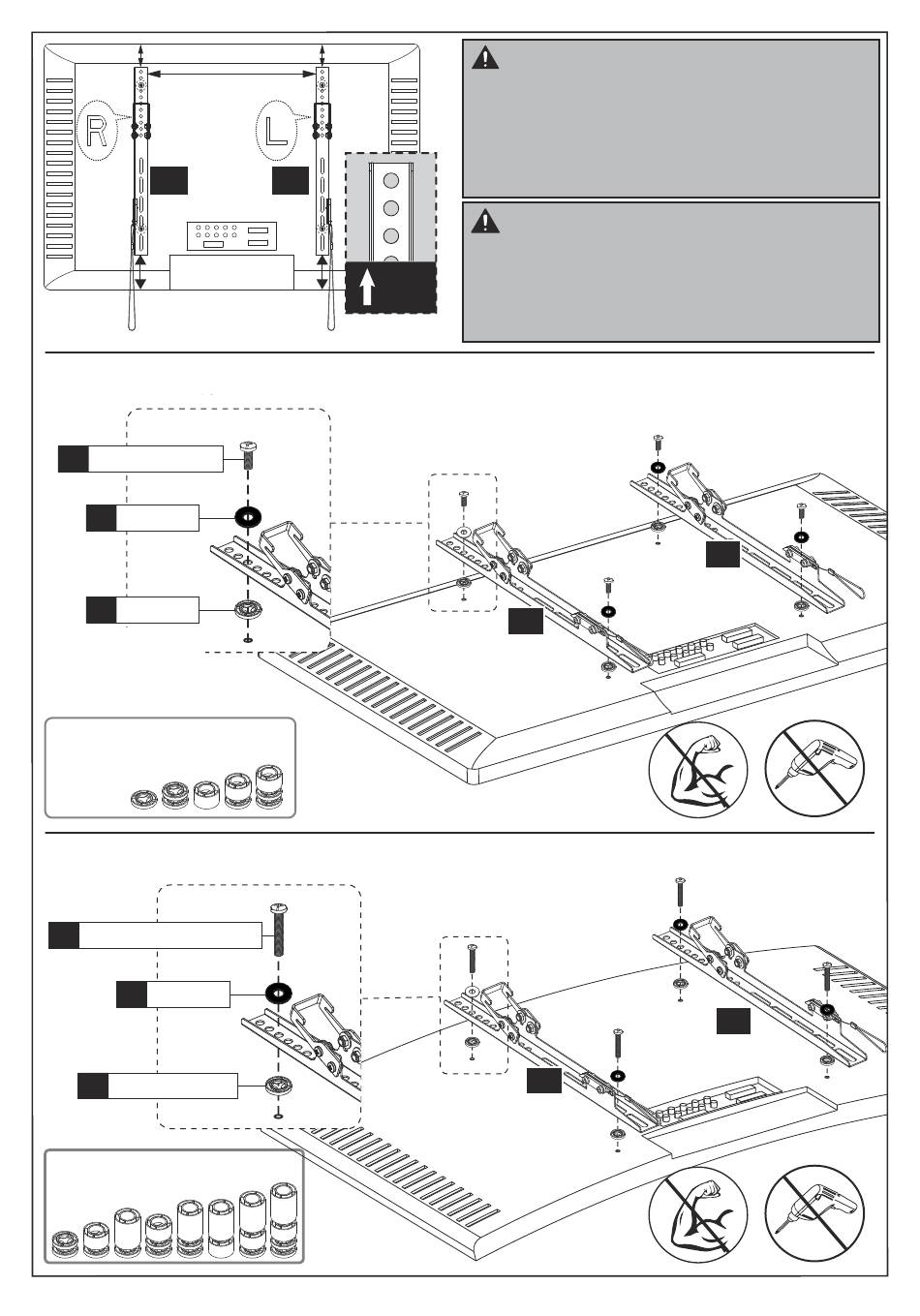

Perlesmith PSLTK1 Instruction Manual page 6

04
Option A (For Flat Back TV)
07
C1 / D1 / E1
05
B1 / B2
06
F1 / F2
(If Needed)
Alternate
Spacer
Setups
Option B (For Round Back TV)
07
C2 / D2 / E2 / E3
05
B1 / B2
06
F1 / F2 / F3
Alternate Spacer
Setups
03
UP
05
CAUTION: When attaching the TV
brackets [03] and [04] to the back of the
TV, ensure the ends with round holes on
the TV brackets are pointing to the top of
the TV and are equally centered on the
back of the TV.
PLEASE NOTE: The bolt hole
locations on your TV may vary in
accordance of the manufacturer's
design of the TV. We are only illustrating
possible locations of the bolt holes.
04
04
03
03
