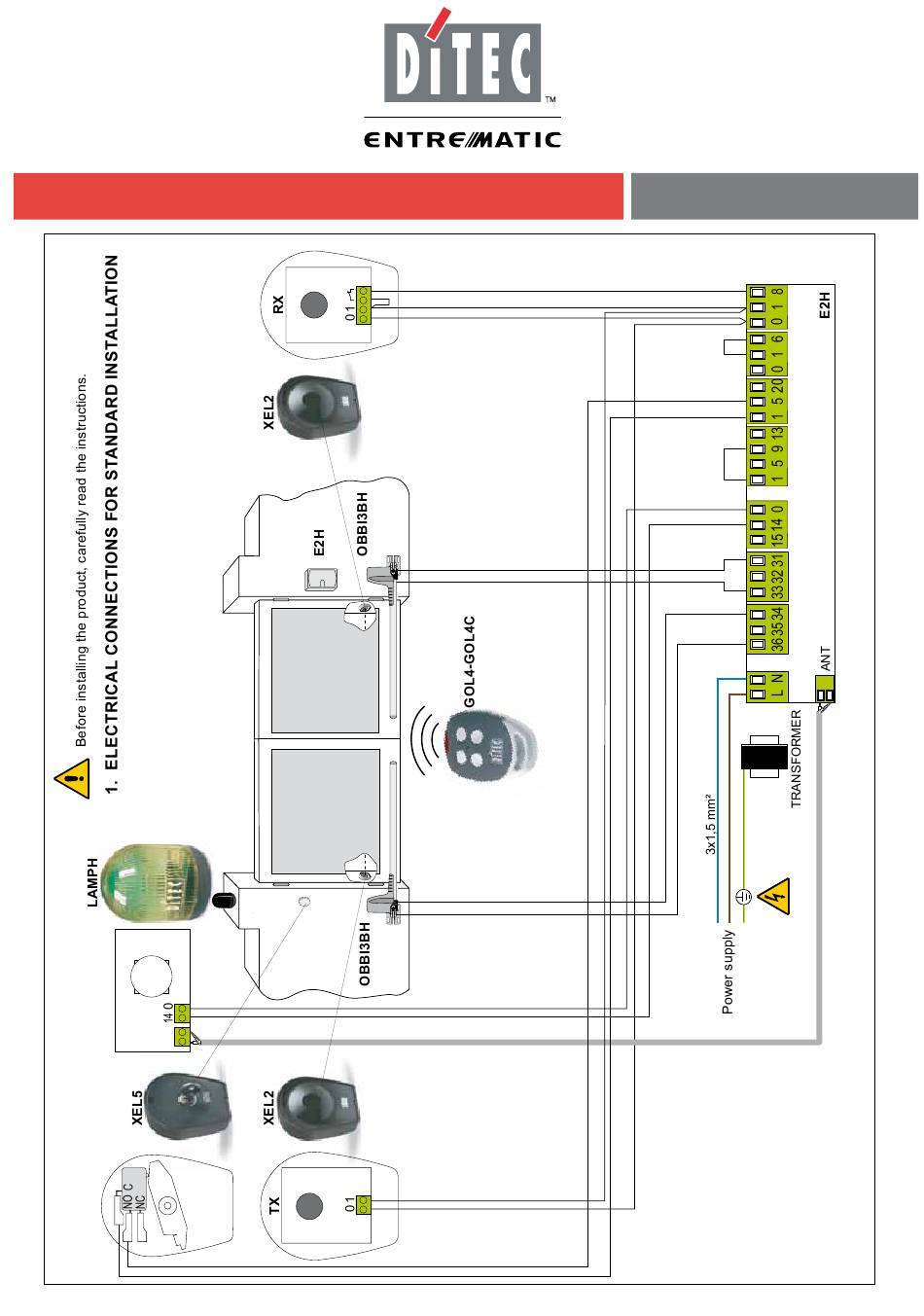

- Page 1 IP2084 OBBI3BH - E2H QUICK REFERENCE rev. 2012-09-27 4x0,5 mm² 2x1,5 mm² (max 10 m) 2x1,5 mm² (max 10 m) 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
- Page 2 2. OBBI3BH MOTORS CONNECTION 36 35 33 32 MOTOR 2 MOTOR 1 MOTOR 2 MOTOR 1 24V= 24V= 33 32 36 35 MOTOR 1 MOTOR 2 MOTOR 1 MOTOR 2 24V= 24V= 3. USAGE WITHOUT LIMIT SWITCHES CLOSING MECHANICAL STOP OPENING CYCLE MOTOR 2 MOTOR 1...
- Page 3 4. OBBI3BH SETTING OBBI MEMORY CARD M1OB ENTER DOWN 36 35 34 33 32 31 15 14 0 1 5 9 13 1 5 20 0 1 6 0 1 8 FIRST TIME ONLY WHEN POWER ON 5. RADIO ENABLING 6.1 STEP BY STEP MODE WITHOUT AUTOMATIC CLOSING SETTING 6.2 STEP BY STEP MODE WITH AUTOMATIC CLOSING SETTING 6.3 OPENING MODE WITH AUTOMATIC CLOSING SETTING...
- Page 4 For different setting and further information consult the automation instruction manual, the control panel instruction manual and radio instruction manual. DITEC S.p.A. Via Mons. Banfi, 3 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com IP2084 • 2012-09-27...
