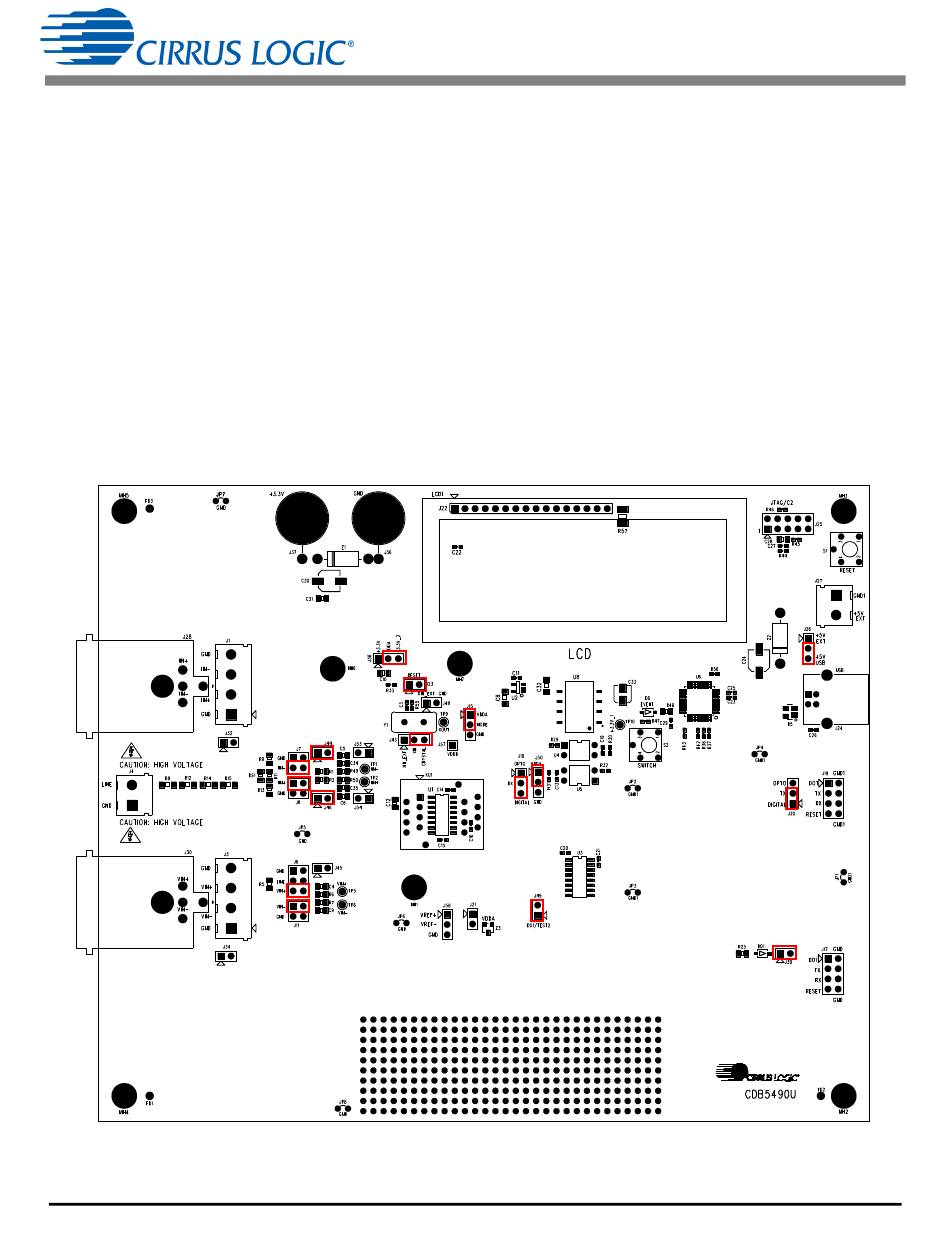

Hardware; Introduction; Evaluation Board Overview; Figure 1. Cdb5490U Assembly Drawing And Default Configuration - Cirrus Logic CDB5490U Manual

Engineering board and gui software

Table of Contents

1. HARDWARE

1.1

The CDB5490U evaluation board provides a convenient means of evaluating the CS5490 energy mea-

surement IC. The CDB5490U evaluation board operates from a single USB or 5V power supply. An op-

tional 3.3V power supply input is available for powering the CS5490 directly. The evaluation board

interfaces the CS5490 to a PC via a USB cable. To accomplish this, the board comes equipped with a

C8051F342 microcontroller and a USB interface. Additionally, the CDB5490U GUI software provides

easy access to the internal registers of the CS5490. The software provides a means to display the on-chip

ADC performance in the time domain or frequency domain.

1.2

The board is partitioned into two main sections: analog and digital. The analog section consists of the

CS5490, passive anti-aliasing filters, and a high-voltage section with an attenuation resistor network. The

digital section consists of the C8051F342 microcontroller, LCD, test switches, reset circuitry, and USB in-

terface. The board also has a user-friendly power supply connection. The assembly information and de-

fault configurations for jumpers are shown below.
