Data Collection to File Window

The Data Collection to File window allows the user to collect instantaneous voltage and current register

data over an extended period of time to a data file (see Figure 29). The Data Collection to File option re-

quires the CS5490 device to be configured at the maximum baud rate set from the within the Setup Win-

dow (see Figure 18). The following steps are necessary for data collection to a file:

1. Provide the Time to Collect in seconds.

2. If a delay before data collection is needed, enter the time in seconds for the Delay.

3. Select the voltage and current channel (V and I).

4. Browse to a directory and enter the file name of the desired file to save.

5. Start the data collection by pressing the START button.

6. The data collection status will be provided in Samples Collected and Time Remaining.

7. The collection will complete without any further interaction by the user or the user may stop the

data collection at any time by pressing the STOP button.

DS923DB5

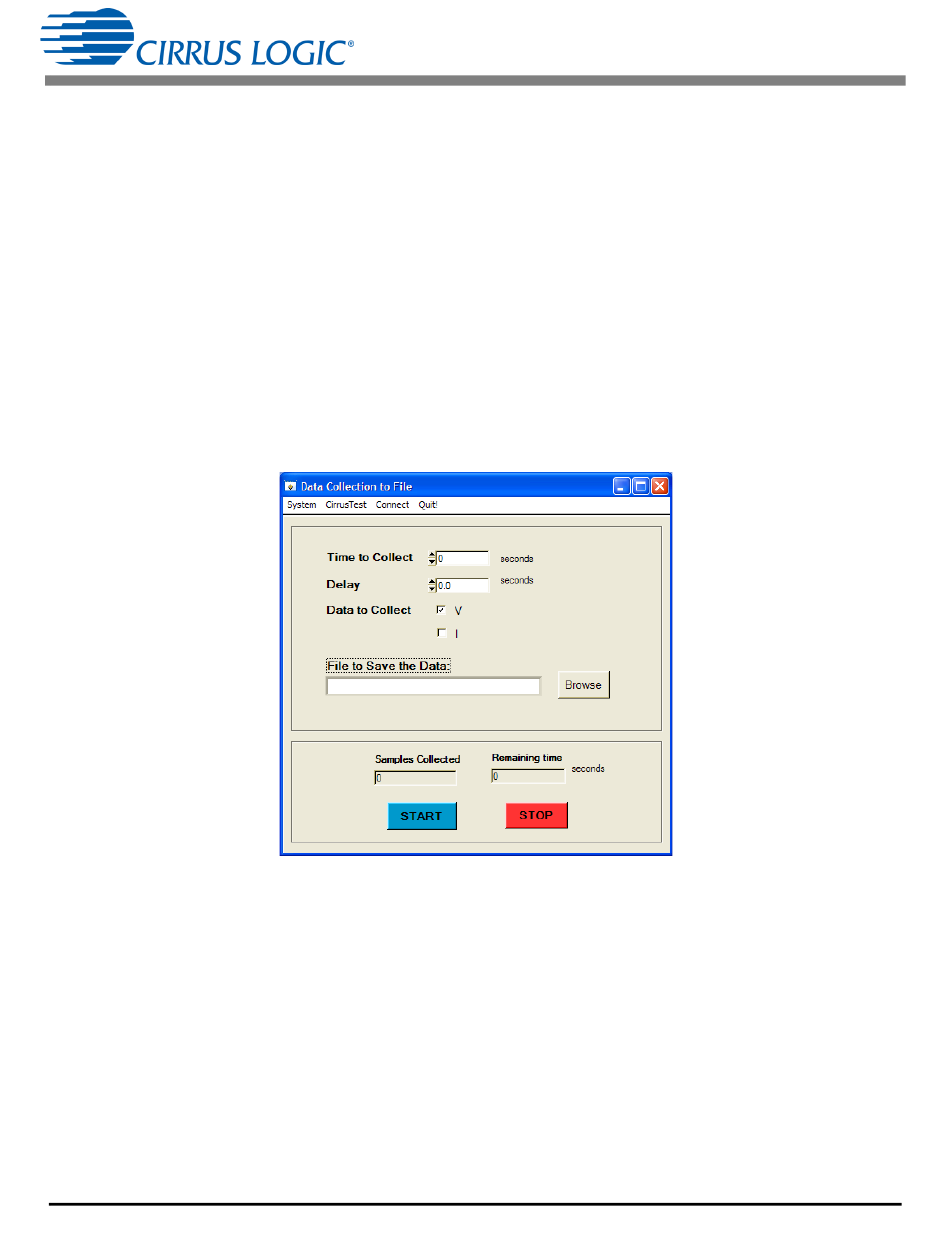

Figure 29. Data Collection to File Window
