2.8.1.13 Time Domain Information
The following controls and indicators are associated with time domain analysis. Time Domain data can be
plotted in the Data Collection window by setting the analysis type selector to Time Domain (see
Figure 28). The Time Domain plot includes:
• COUNT: Displays current x-position of the cursor on the time domain display.
• MAGNITUDE: Displays current y-position of the cursor on the time domain display.
• MAXIMUM: Indicates the maximum value of the collected data set.
• MINIMUM: Indicates the minimum value of the collected data set.
34

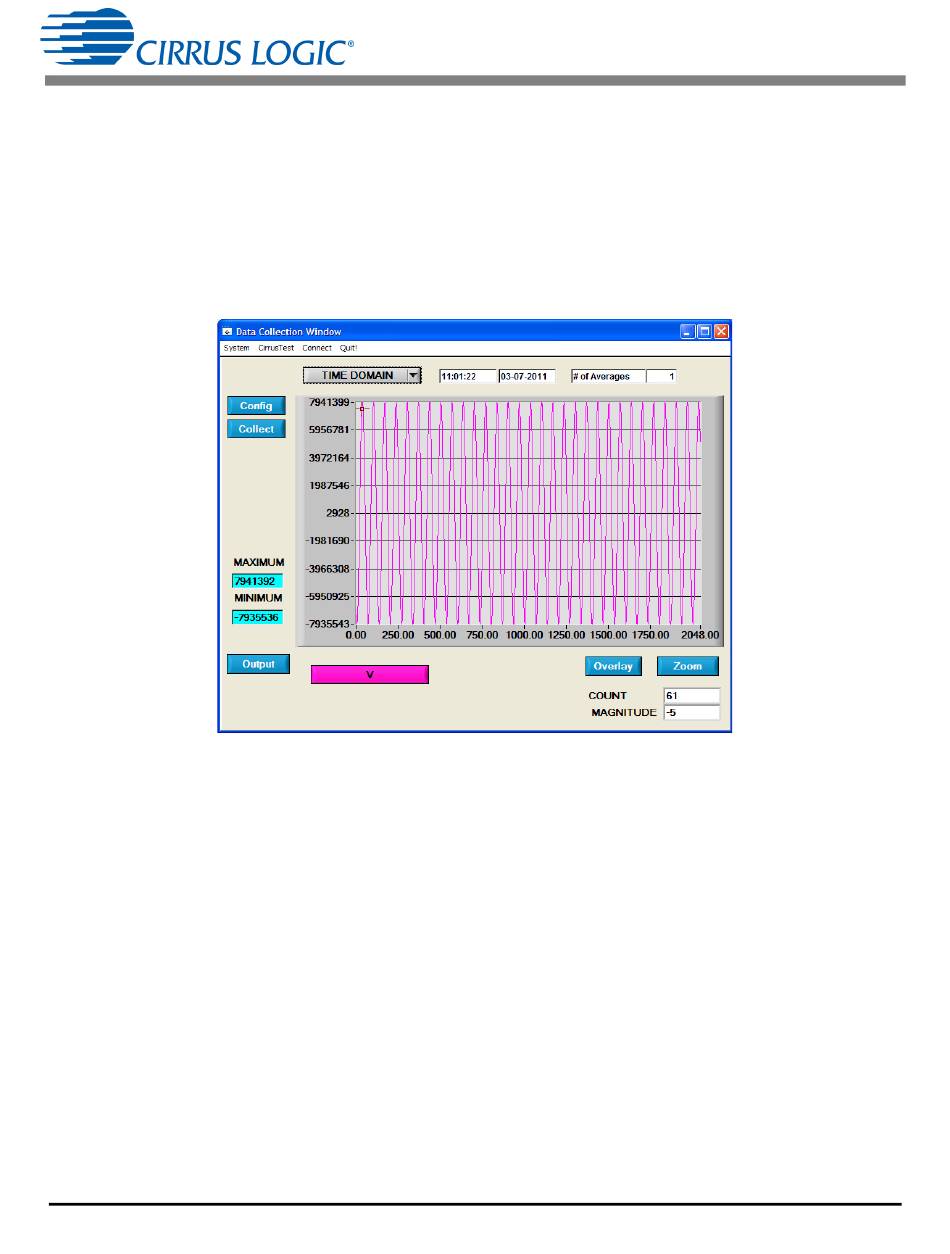

Figure 28. Data Collection Window - Time Domain Analysis
