Chore-Time PIGTEK PT5048 User Manual page 5

Installation and Operators Instruction Manual

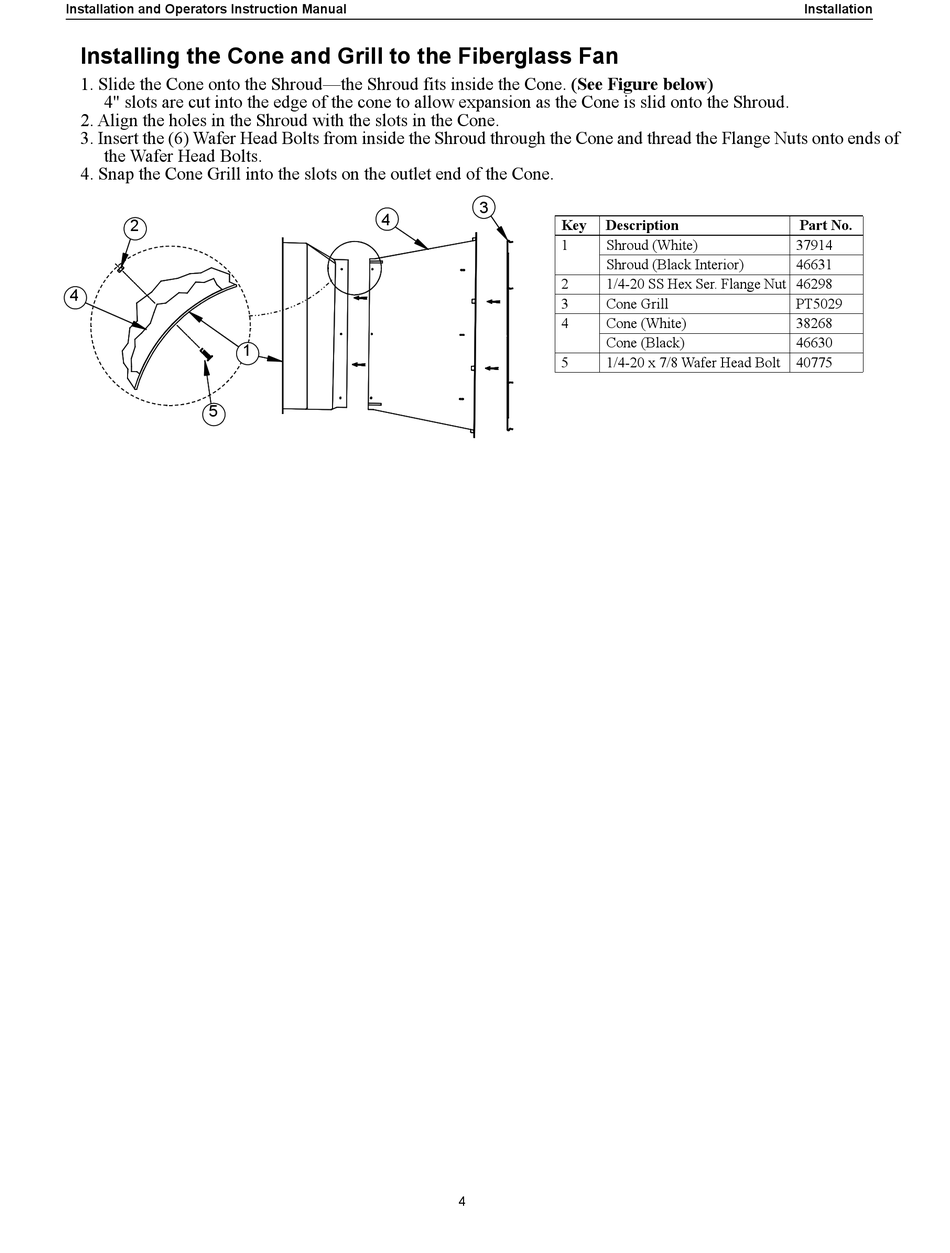

Installing the Cone and Grill to the Fiberglass Fan
1. Slide the Cone onto the Shroud—the Shroud fits inside the Cone. (See Figure below) 
4" slots are cut into the edge of the cone to allow expansion as the Cone is slid onto the Shroud.
2. Align the holes in the Shroud with the slots in the Cone.
3. Insert the (6) Wafer Head Bolts from inside the Shroud through the Cone and thread the Flange Nuts onto ends of
the Wafer Head Bolts.
4. Snap the Cone Grill into the slots on the outlet end of the Cone.
2
4
5
4
1
3
Key Description
1 Shroud (White)
Shroud (Black Interior)
2 1/4-20 SS Hex Ser. Flange Nut 46298
3 Cone Grill
4 Cone (White)
Cone (Black)
5 1/4-20 x 7/8 Wafer Head Bolt
4
Installation
Part No.
37914
46631
PT5029
38268
46630
40775
