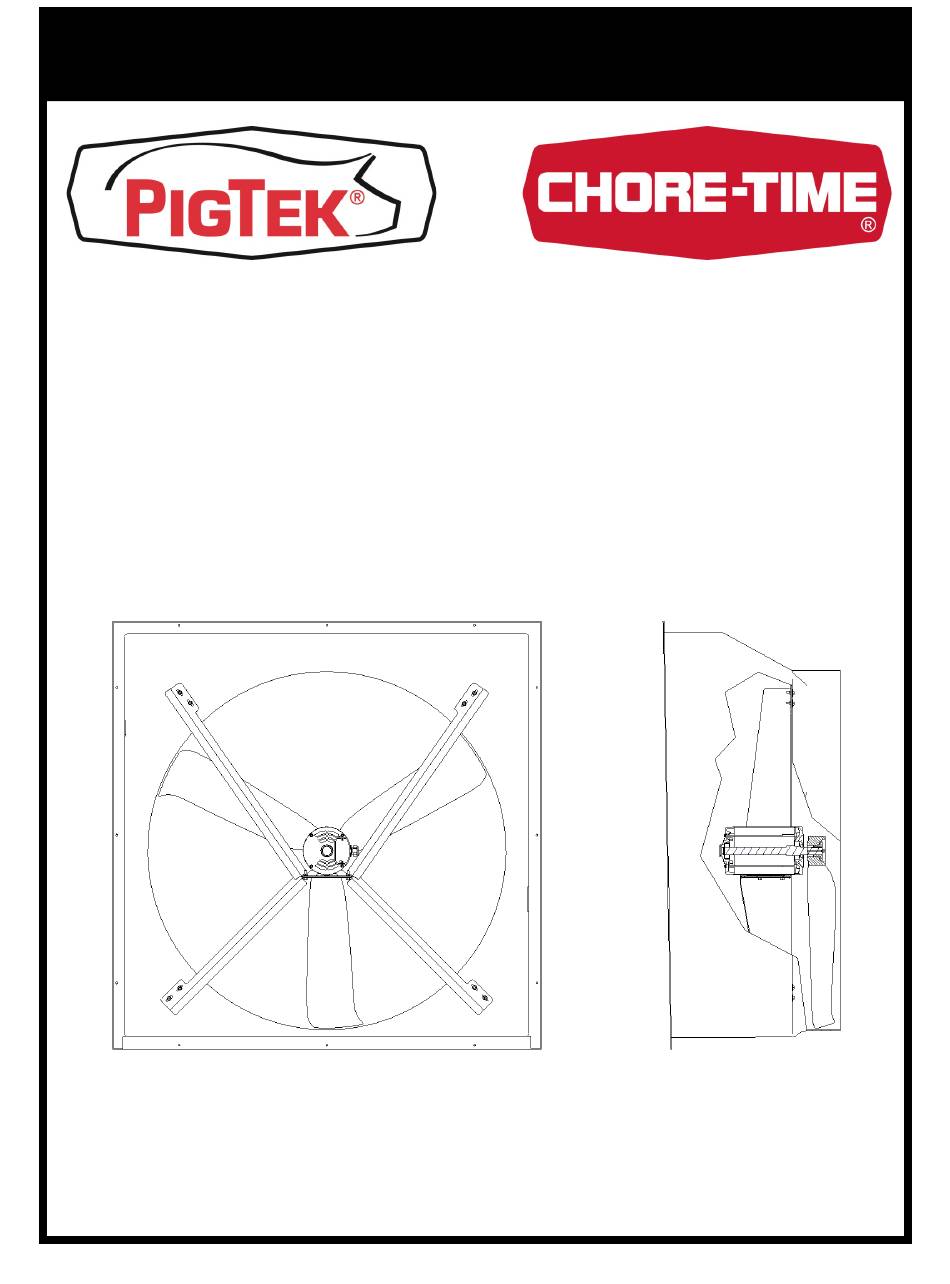

- Page 1 USER MANUAL PIGTEK® 48” DIRECT DRIVE PT5048 PTM015...
-
Page 2: Disclaimer Of Liability
Compliance with federal, state and local rules which apply to the location, installation and use of the Product are the responsibility of the Purchaser. Chore-Time will not be liable for any damages which result from non-compliance with such rules. PigTek Americas, A division of CTB, Inc. - Page 3 Installation and Operators Instruction Manual Safety Safety Carefully read all safety messages in this manual and on your equipment safety signs. Follow recommended precautions and safe operating practices. Keep safety signs in good condition. Replace missing or damaged safety signs. Decal Descriptions Danger: Electrocution Hazard Disconnect electrical power before inspecting or servicing equipment unless...
-
Page 4: Installation
Installation Installation and Operators Instruction Manual Installation Insert the Fan Assembly in the wall opening and secure using the (12) 1/4 x 1-3/4 Lag Screws, (6) Shutter Clips, and (6) Nylon Washers provided. The Shroud is pre-drilled. The hardware must be installed as shown in the Figure below. - Page 5 Installation and Operators Instruction Manual Installation Installing the Cone and Grill to the Fiberglass Fan 1. Slide the Cone onto the Shroud—the Shroud fits inside the Cone. (See Figure below) 4" slots are cut into the edge of the cone to allow expansion as the Cone is slid onto the Shroud. 2.
- Page 6 Shutter Installation/Cord Routing and Wiring Installation and Operators Instruction Manual Shutter Installation/Cord Routing and Wiring 1.See Wiring diagram on Motor for Motor electrical connections. Follow local, state, and national electrical codes for wiring 2.Install an electrical disconnect within reach of each Fan. 3.Route the motor cord (not supplied) toward the upper left corner of the Fan and attach the cord to the Motor Mount using the three Cable Ties—included in the hardware package.
- Page 7 REV. A: Changed part number in title, removed drive wiring instructions 34869 1, 5-6 PTM015...
