Hpsdrbootloader V2.0 - Apache Labs ANAN-7000DLE MKII User Manual

HPSDRBootloader v2.0

Download the HPSDRBootloader installer for Windows HERE.
Install the HPSDRBootloader software.
Connect the radio to your computer network using an ethernet cable. Place the radio into bootloader mode
using the slide switch on the bottom panel. Power the radio ON. Having a direct ethernet connection between
the radio and computer is highly recommended and in some cases will be required.

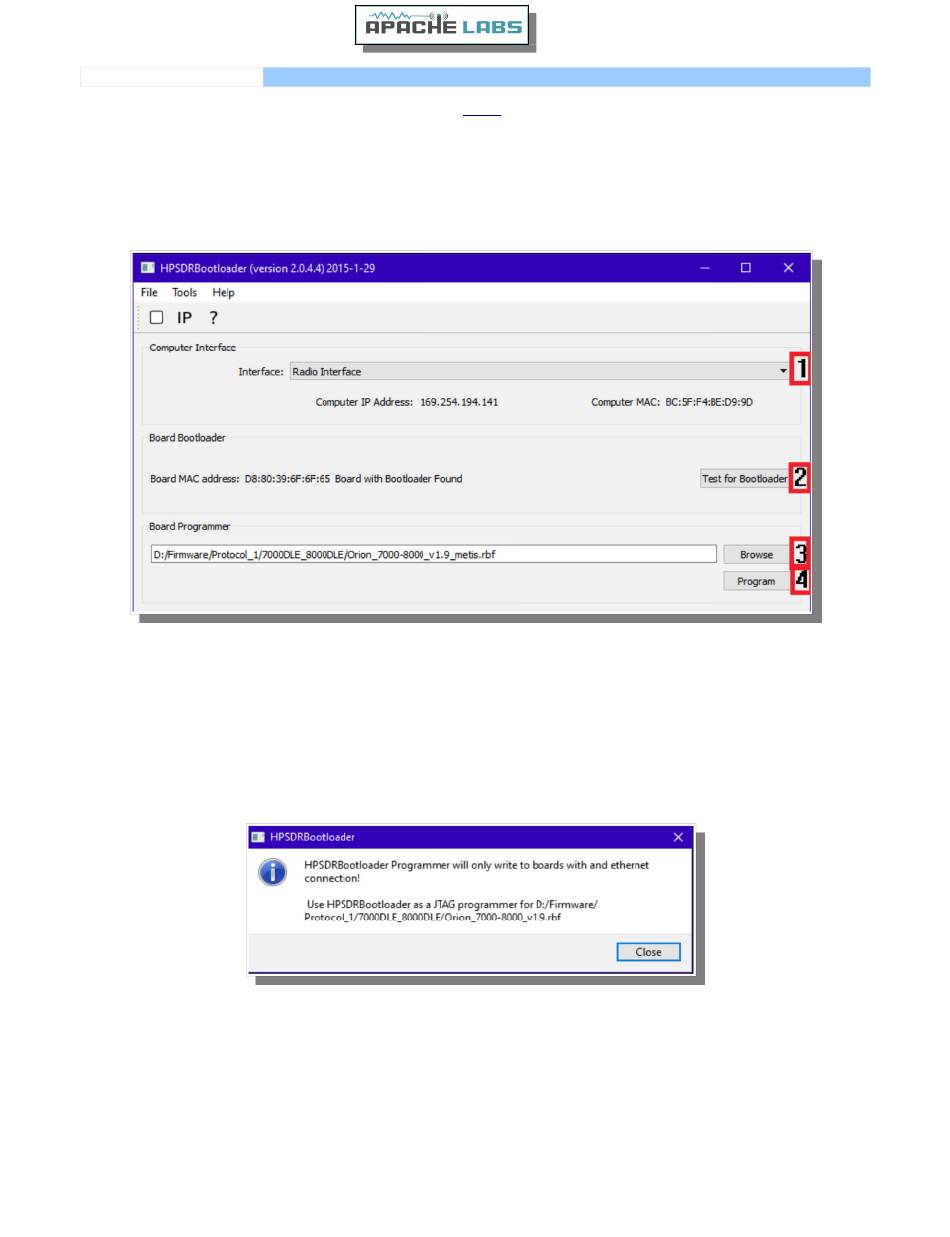

Run the HPSDRBootloader software.
1 – Choose the Computer Interface that the radio is connected to using the pull-down menu.
2 – Click on Test for Bootloader. Wait until the information is updated in the Board Bootloader field.
3 – Browse to the location of the firmware file you will be using to update the radio.
4 – Click on Program to flash the firmware.
Firmware files are available for download from HERE.
If you receive this error message, rename the rbf file adding the word metis to the file name. In my example I
added it to the end.
Copyright Apache Labs © page 60 26 February 2019
