Powersdr Mrx Ps Setup Menu - Apache Labs ANAN-7000DLE MKII User Manual

Run PowerSDR then press the Power button.
Click on the Setup menu.

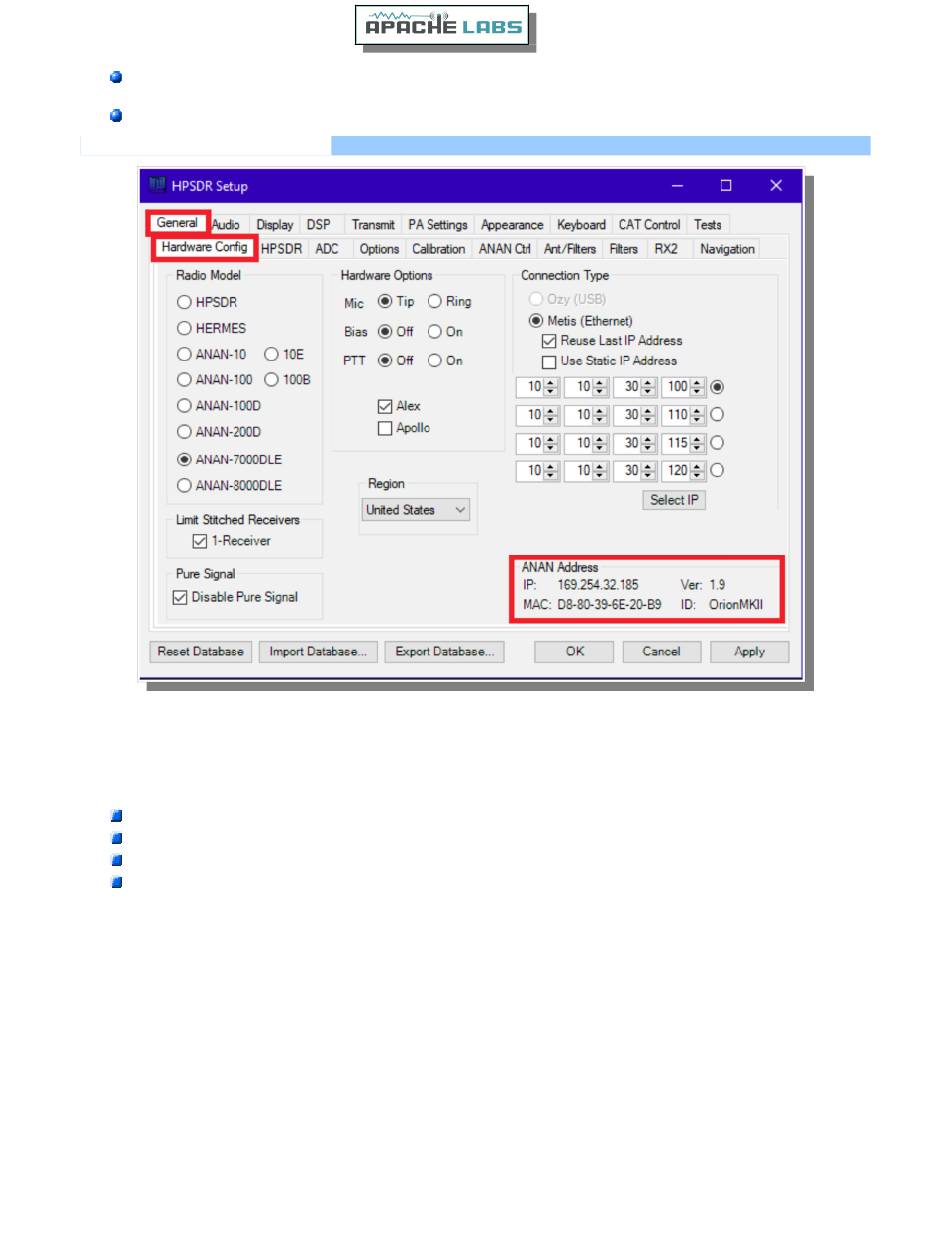

PowerSDR mRX PS Setup Menu

Go to → GENERAL → Hardware Configuration tab and note the IP Address and MAC address that are read from
the radio's flash memory.
Note: if the IP ADDRESS is 0.0.0.0 then the software is not communicating with the Transceiver
check your LAN connection.
PowerSDR has not been started.
Power button on the rig has not been activated.
The RJ-45 LAN connector has two LED indicator lights. Check your LAN connector to insure that the
Link Light on the RIGHT side of the LAN connector is illuminated. The DATA Light on the LEFT side
of the LAN connector will blink as data is transferred to/from the PC.
Copyright Apache Labs © page 23 26 February 2019
