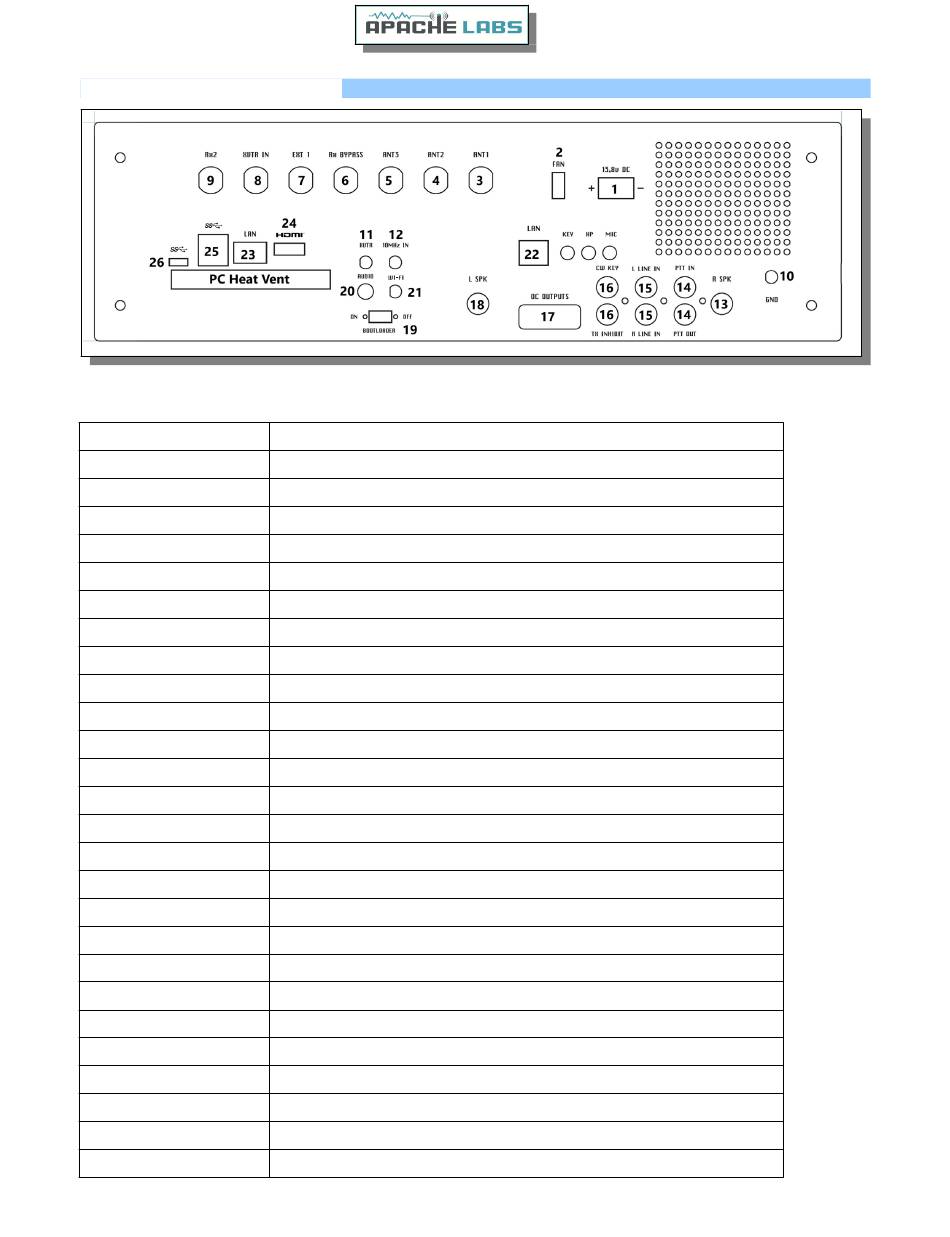

ANAN-7000DLE MKII Back Panel

Connector Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Copyright Apache Labs ©
ANAN-7000DLE MKII back panel details
PowerPole ® 13.8vdc 30A Power Supply connection
External Fan connector (optional) mating plug TE#158619-2
ANT-1
ANT-2
ANT-3
Rx Bypass
EXT1
XVTR IN
Rx 2
GND
XVTR OUT
10Mhz IN
Right Speaker 1/4" jack
PTT IN and PTT OUT
Right (Audio) Line IN, Left (Audio) Line IN (only Left Audio is used)
Digital IN 1, Digital IN 2 (transmit inhibit, straight key)
Open Collector 9 pin connector
Left Speaker 1/4" jack
Bootloader Switch
PC Audio
PC Wi-Fi Antenna
SDR LAN
PC LAN
HDMI Port
USB Ports
USB C Port
page 15
Connector Detail
