Setting up PowerSDR for Phone Operation

With the rig powered on and PowerSDR software running, you should hear great audio from your speakers or
headphones connected to the front panel "headphone" jack.

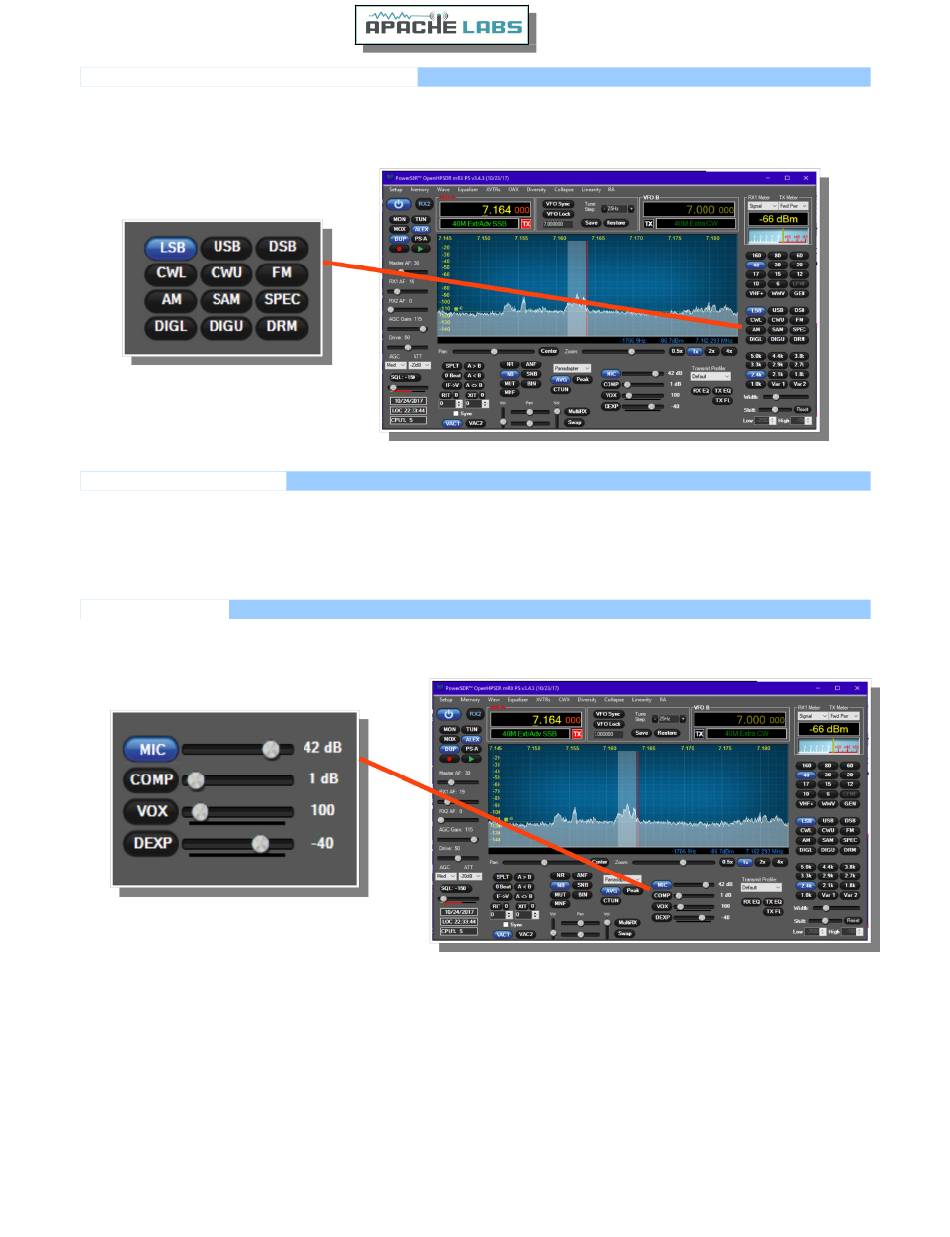

Select modulation mode of USB or LSB at the right and center of the console.

Selecting Transmit Profile

The "Profiles" drop down menu allows you select various transmit profiles. The default profile is "Default". You
can modify profile settings on this tab and save them to a profile name you select, or you can just modify the
included profiles to your liking. You can recall saved profiles at a later time.

Adjusting mic gain

You should make all microphone adjustments using a Dummy Load with proper PA Calibration.
Select Setup –-> Transmit, the default Source is "Mic In".
Locate the "MIC" gain control slider. It is located at lower right, below the panadapter. The present mic gain
setting is shown just to the right of the MIC gain slider.
On the console, use the "TX meter" [Upper right corner] drop-down box to select "Mic".
Press your Mic PTT button, keyboard space bar, or click the "MOX" button on the console to key the radio. With
the radio keyed and while speaking into the mic in a normal voice adjust mic gain for peaks
0db.
To enable or disable COMPRESSION click on the COMP button. We recommend that you set COMPRESSION to
no more than 6dB.
