5. CW Operation

Sample Rate

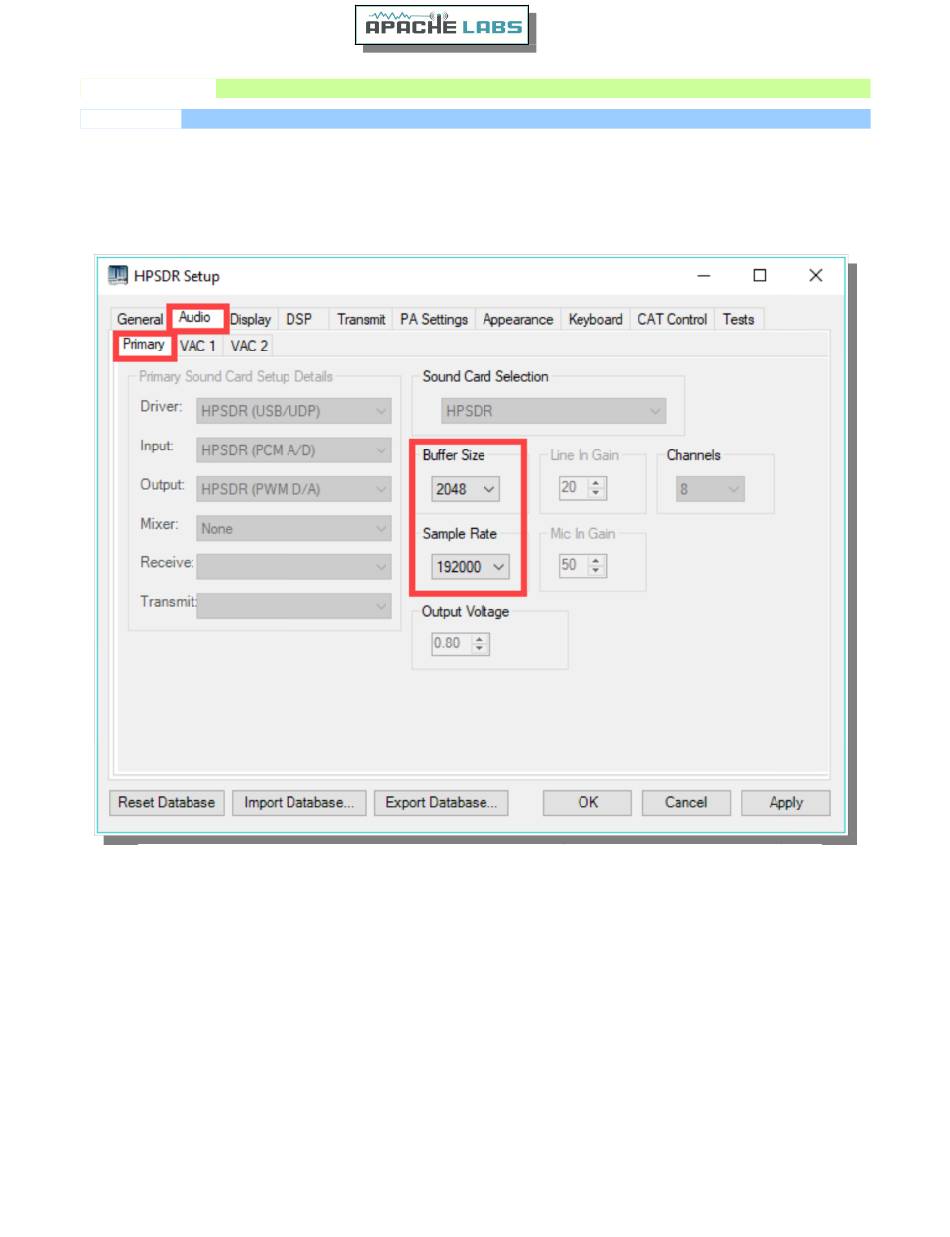

Select a SAMPLE RATE best suited to your CW tuning style from the Settings → AUDIO menu
(although this shows the AUDIO menu, it is an historical reference to the original Flex SDR-1000
Audio Sound Cards as the interface for Digital Signal Processing. In all modern Apache Transceivers, the
architecture is digital with Direct Down Conversion. Sample Rates are handled by the high speed FPGA (Field
Programmable Gate Array) chip inside the radio on the Transceiver board)
The appearance of the Panadapter can be adjusted with the ZOOM settings, Sample Rate, and
SETUP –-> DISPLAY –-> RX1 [or RX2] –-> Fast Fourier Transform Size [min to max] Bin width.
