Antenna Control menu

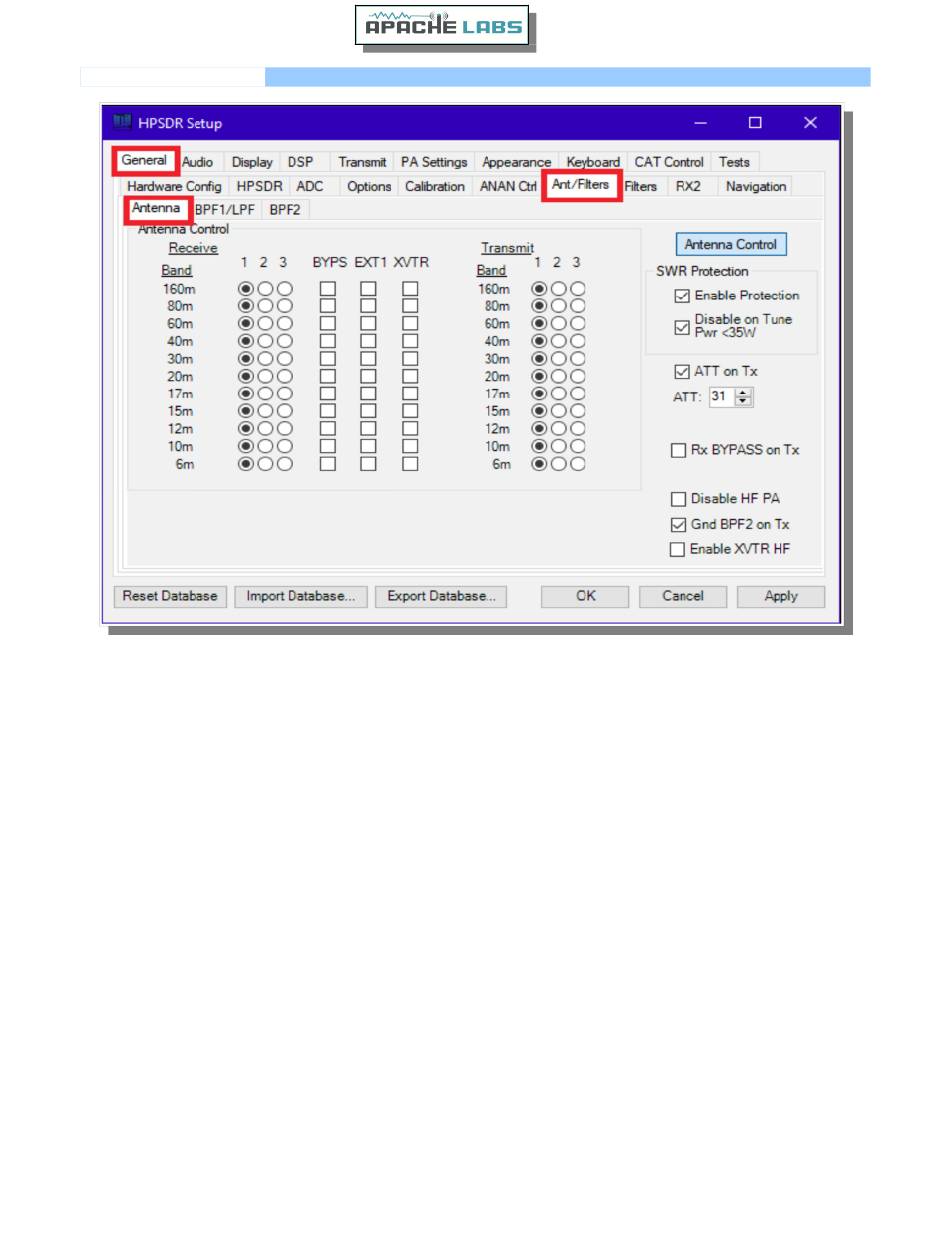

Separate receive and transmit antennas can be selected by use of the 1,2,3 radio buttons. This corresponds to
the ANT1, ANT2, and ANT3 ports on the rear panel. Receive only antennas can be connected to the 'Rx BYPASS'
or 'EXT1' ports on the rear panel. The 'Rx BYPASS' port does not have a BPF in the receive chain. The 'XVTR'
port is for use with a transverter. When the box is checked the 'XVTR' port will only be switched when a VHF
band is active.
Enable Protection will reduce power output when high SWR levels are detected above 2:1.
Disable on Tune Pwr <35W will disable SWR protection when the Tune power level is less than 35 watts.
The Tune power level can be set on the Setup, Transmit tab.
Rx BYPASS on Tx option connects the 'Rx BYPASS' port to ADC1 during transmit. This can be used for
connecting to an external coupler for PureSignal.
ATT on TX option inserts attenuation in the receiver chain when transmitting. This can prevent or reduce ADC
overload warnings during transmit. PureSignal can adjust this setting automatically.
Disable HF PA disables the PA on HF bands. There is a separate Disable PA selection on the XVTR Form for
use with a transverter.
Gnd BPF2 on Tx forces the input to ADC2/BPF2 to be grounded when transmitting.
