SOFTWARE INSTALLATION
1.
Before starting the software installation, make sure that the
ADP5020 adapter board is not connected to the PC USB port.
2.
The application software is a compiled LabVIEW™ program
requiring the LabVIEW 8.5 run-time engine to be installed
on the PC. Download the LabVIEW run-time engine from
National Instruments.
3.
After installation, reboot the PC to complete the operation
if necessary. Note that if the PC already has LabVIEW
installed, this step is not needed.
4.
Launch the file Setup.exe. When the dialog box shown in
Figure 2 appears, click Next > to continue.

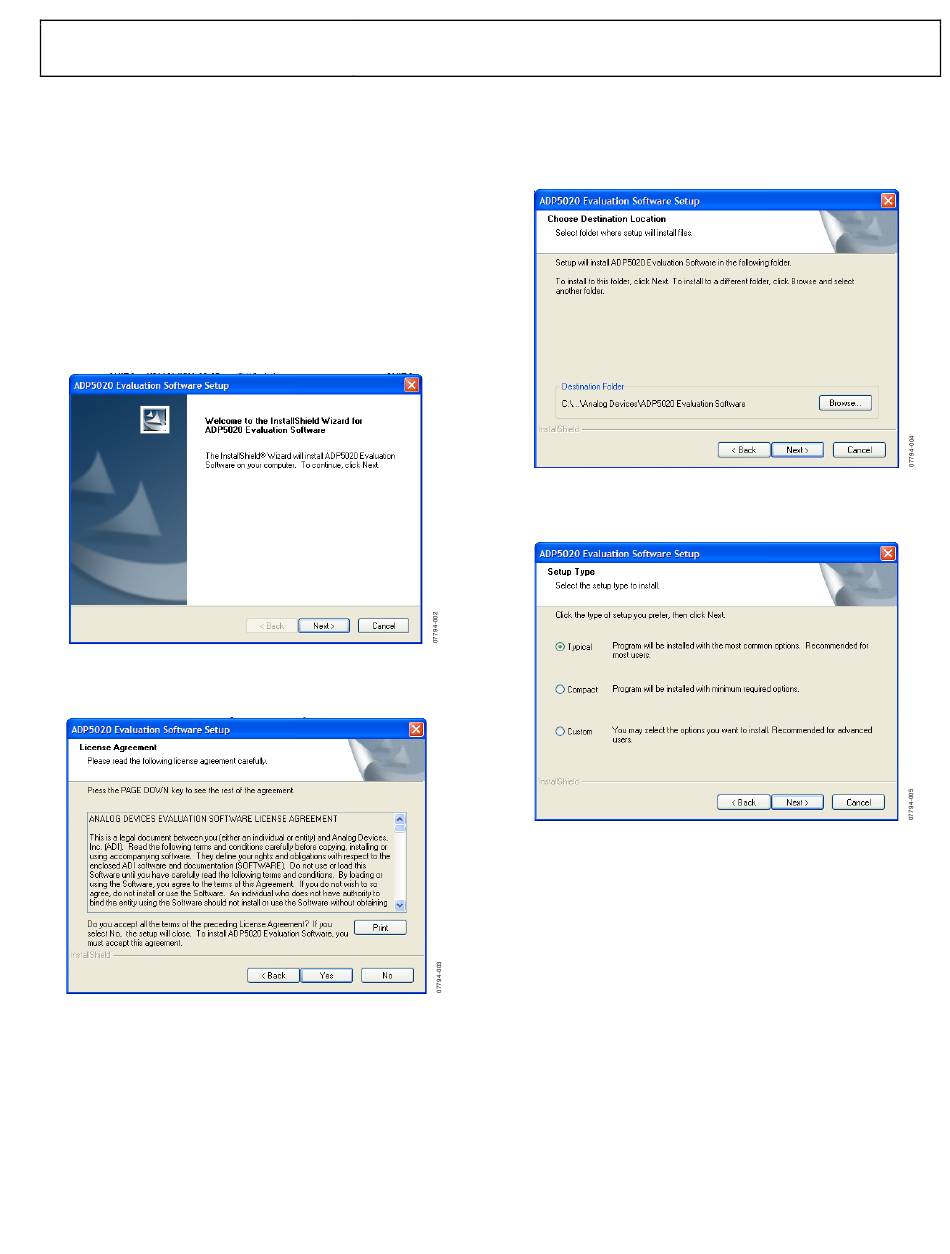

Figure 2. ADP5020 Evaluation Software Setup
5.
Click Yes to accept the license agreement.
Figure 3. License Agreement
6.
Click Next > to install the files to the default destination
folder or click Browse... to choose a different file.
7.
Click Next > to continue with the installation.
Rev. 0 | Page 3 of 24
EVAL-ADP5020
Figure 4. Choose Destination Location
Figure 5. Setup Type
