Daughterboard - Analog Devices EVAL-ADP5020 Manual

EVAL-ADP5020

DAUGHTERBOARD

The ADP5020 evaluation daughterboard is designed to quickly
evaluate key parameters of the ADP5020 IC. The board layout
footprint is extended so that parts can be exchanged easily, and
headers are available to measure currents using a current probe
or ammeter.
I/OS SIGNALS
AND KELVIN
MEASUREMENTS
IF JP1 IS IN INT
POSITION JP4
SELECTS EN/GPIO
TO VDDIO OR GND
EN/GPIO SELECTION
FORCED INTERNALLY REMOVE FILTER
OR EXT. ON VDDA
VDD3 INPUT SELECTION AND
CURRENT MEASUREMENT

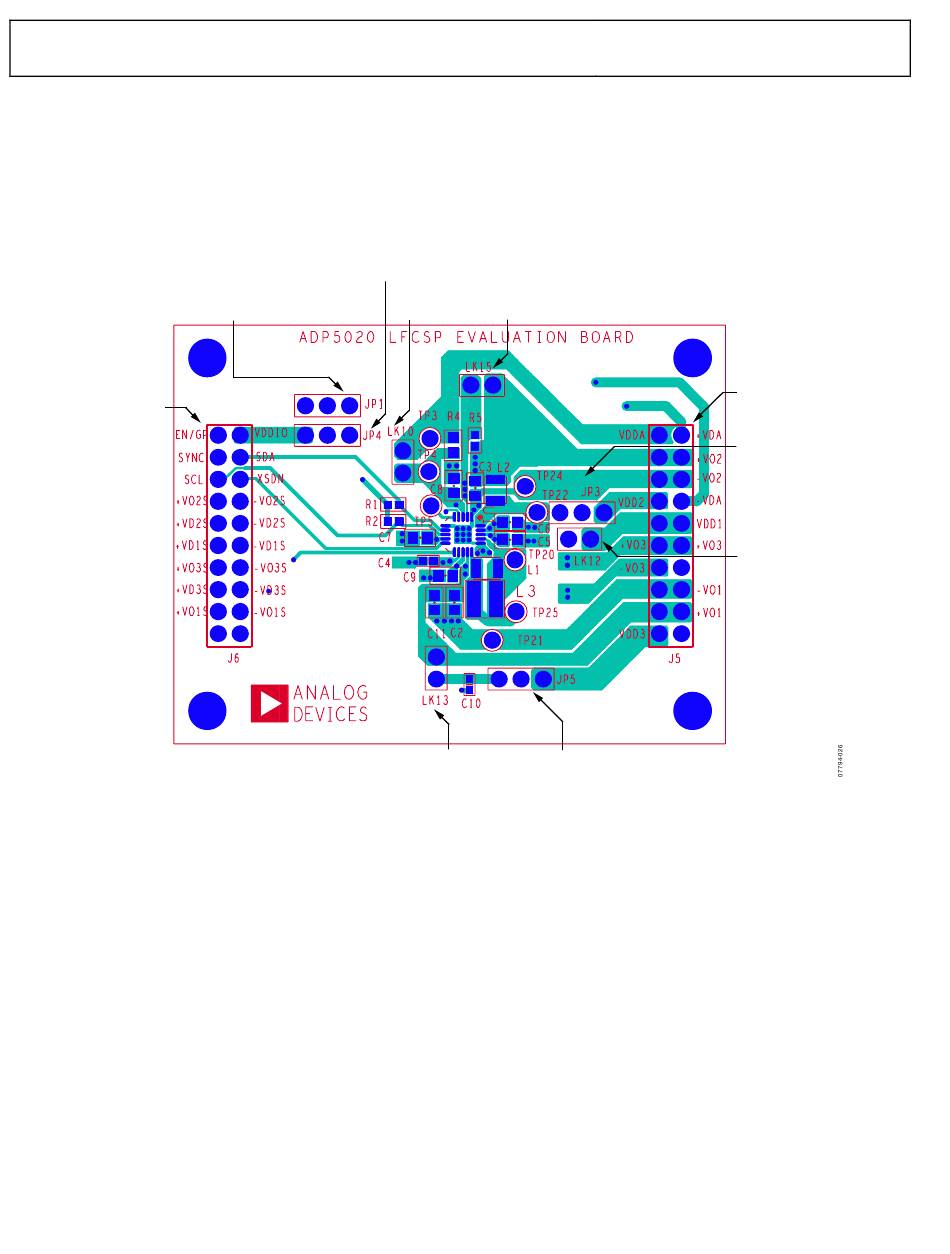

Figure 24. Daughterboard
Rev. 0 | Page 14 of 24
Connect a power supply or Li-Ion battery with 2 A capability
to VBATT. Up to 1.8 A (nominal) can be drawn from the
battery; therefore, short thick cables are recommended to
minimize the IR drops. A high current can cause a big IR drop,
and VBATT can be low enough to put the part into UVLO.
LOOP
MEASUREMENT PORT
VDD3 INPUT SOURCE
SELECTION (EXT VDD3 OR +VO1)
INPUT SUPPLIES
AND REGULATORS
OUTPUTS
VDD2 INPUT
SELECTION
AND CURRENT
MEASUREMENT
VDD1 INPUT
CURRENT
MEASUREMENT
