H3C SecPath NSQ1FAB04B0 switching fabric module
1 Module view
The NSQ1FAB04B0 switching fabric module uses product code NSQM1FAB04B0.

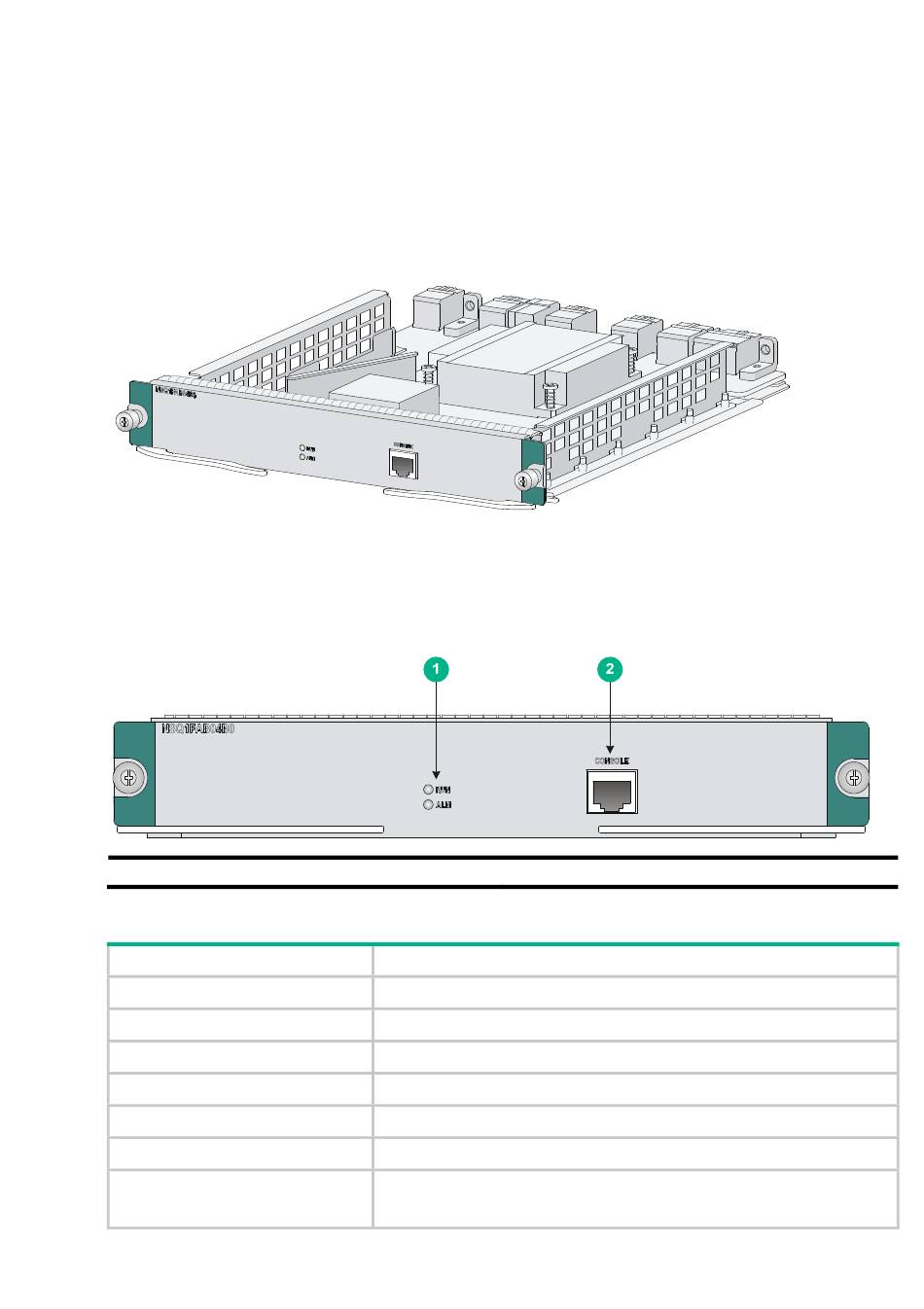

Figure 1 NSQ1FAB04B0 switching fabric module
2 Specifications
Figure 2 Front panel
(1) Status LEDs
Table 1 Module specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Ports
Ambient temperature
(2) Console port (CONSOLE)
Specification
40 × 256 × 298 mm (1.57 × 10.08 × 11.73 in)
48 W to 65 W
1.71 kg (3.77 lb)
Supported
RJ-45
1 × console port
Operating: 0°C to 45°C (32°F to 113°F)
Storage: –40°C to +70°C (–40°F to +158°F)
i
BOM: 3123A0R3
