H3C SecPath M9000-AI NSQM5MBSHA1 Manual

Manual version: APW100-20190606
H3C SecPath M9000-AI NSQM5MBSHA1 interface
1 Identifier
The module identifier NSQM5MBSHA1 is in the upper right corner of the front panel.
2 About the module
The NSQM5MBSHA1 interface switch module is developed for H3C SecPath M9000-AI multiservice
security gateways. It provides two subcard slots. Working in conjunction with an M9000-AI interface
switch module, it meets 100G network requirements and can greatly enhance the security capability
of the device.
3 Specifications

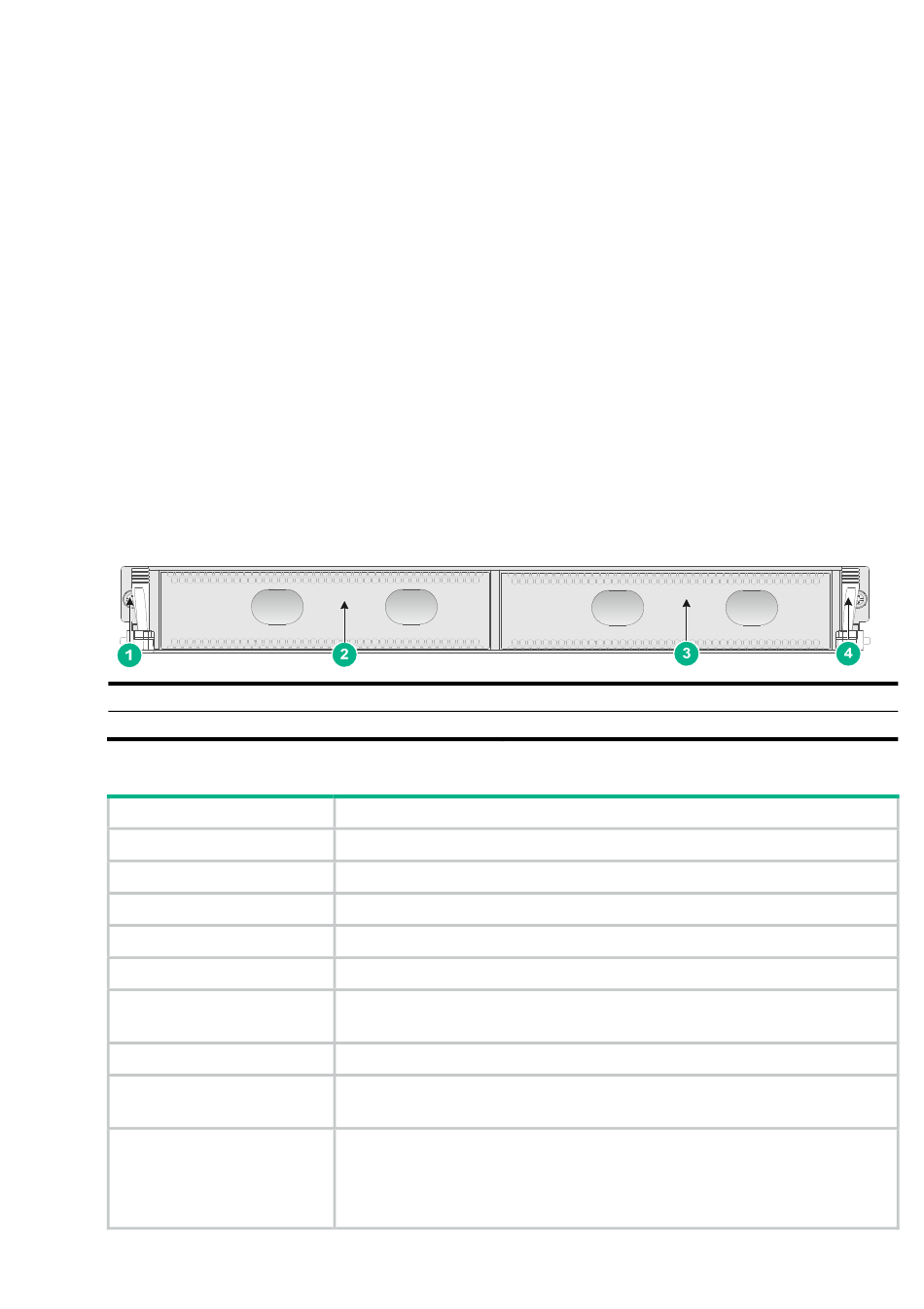

Figure 1 Front panel
(1) Captive screw
(3) Subcard slot 2
Table 1 Module specifications
Item
Dimensions (H × W × D)
SDRAM (DDR3)
Power consumption
Net weight
Hot swapping
Ambient temperature
Ambient humidity
Compatible device models
Compatible interface
modules
switch module
(2) Subcard slot 1
(4) Ejector lever
Specifications
50 × 432.6 × 521.3 mm (1.97 × 17.03 × 20.52 in)
2 GB
79 W to 89 W
5.9 kg (13.01 lb)
Supported
•
Operating: 0°C to 45°C (32°F to 113°F)
•
Storage: –40°C to +70°C (–40°F to +158°F)
5% RH to 95% RH, noncondensing
•
M9000-AI-E8 multiservice security gateway
•
M9000-AI-E16 multiservice security gateway
•
NS-C300-CGQ2TG16A1
•
NS-C300-QG4TG16A1
•
NS-C300-TG24A1
•
NS-C600-CGQ6A1
i
BOM: 3123A1T7
