H3C SecPath M9000 NSQM1FWDFGC1 firewall
1 Identifier
The module identifier NSQM1FWDFGC1 is at the upper right corner of the front panel.
2 About the module
The NSQM1FWDFGC1 firewall module is developed for H3C SecPath M9000 security gateways.
The module provides features including firewall, VPN, content filtering, and NAT. By using this
module on an M9000 gateway, you can enhance network security capabilities without changing the
network topology.
3 Specifications
The module has one console port, one USB port, one GE copper port, and a hard disk slot.

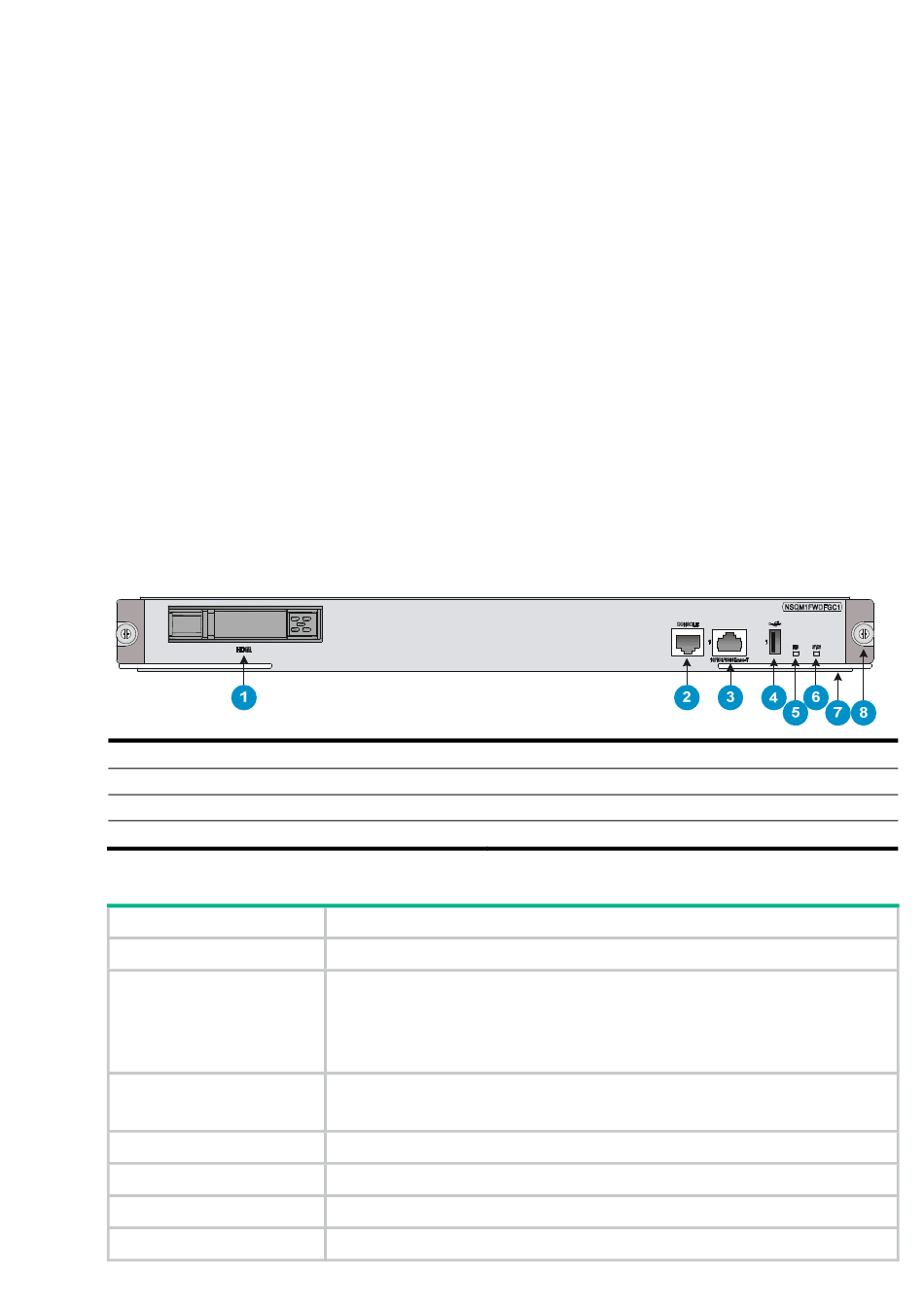

Figure 1 Front panel
(1) Hard disk slot
(3) GE copper port (10/100/1000BASE-T)
(5) Hard disk LED (HD)
(7) Ejector lever
Table 1 Module specifications
Item
Flash
Memory
Micro SD card
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
module
(2) Console port (CONSOLE)
(4) USB port (reserved)
(6) System status LED (SYS)
(8) Captive screw
Specification
8 MB Nor Flash
Four memory slots
Standard configuration: 32 GB (four 8-GB VLP RDIMMs)
You must install the DDR3 SDRAMs in pairs and each pair must have the
same specifications.
One built-in Micro SD card slot
Standard configuration: 8 GB
40 ×399 × 352 mm (1.57 × 15.71 × 13.86 in)
180 W to 260 W
4.8 kg (10.58 lb)
Supported
i
BOM: 3123A1BU
