Manual Version: 6PW104-20170414

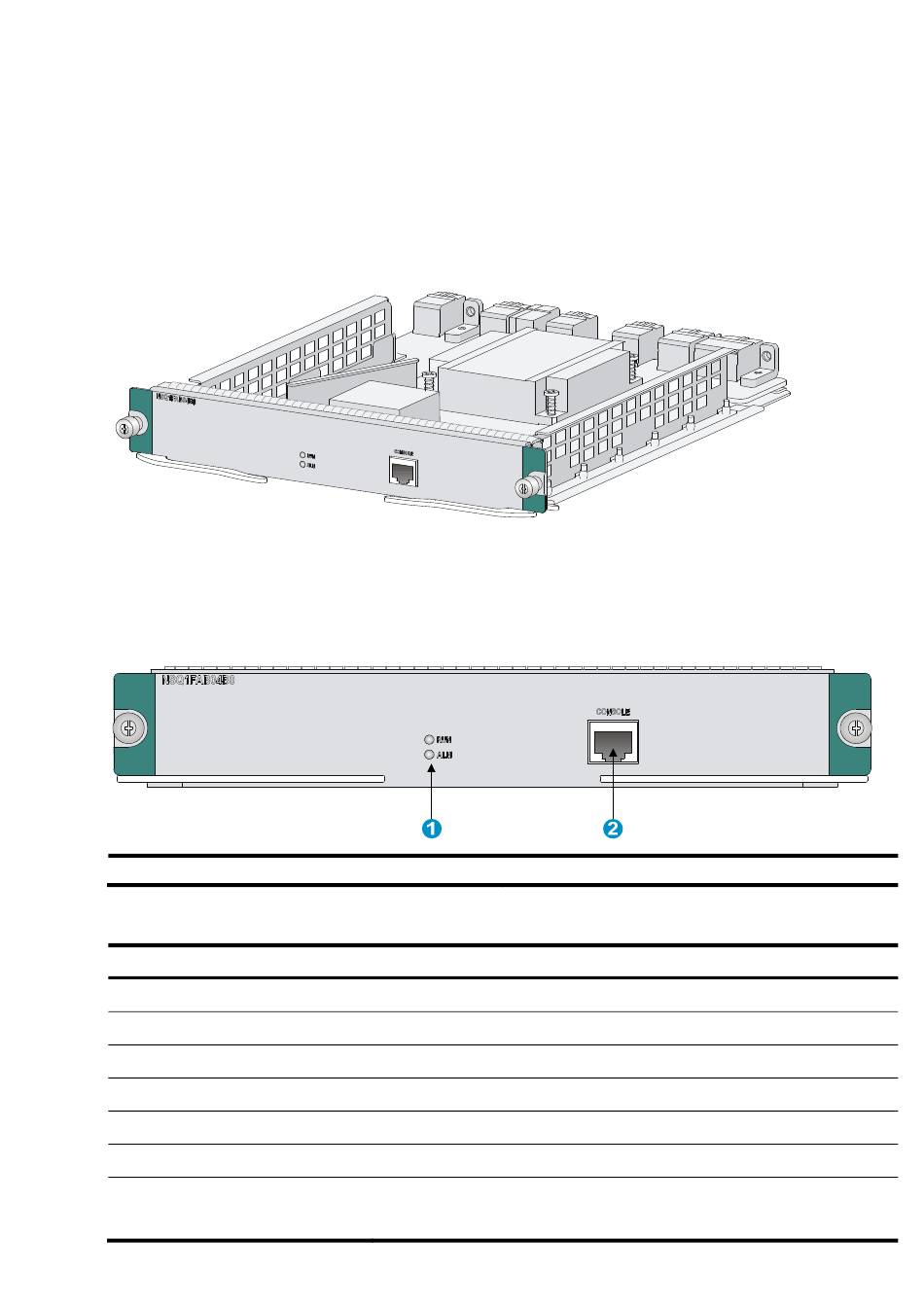

1 Card view
Figure 1 NSQ1FAB04B0 switching fabric module
2 Specifications
Figure 2 Front panel of the NSQ1FAB04B0
(1) Switching fabric module status LED
Table 1 Switching fabric module specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Interfaces
Ambient temperature
H3C NSQ1FAB04B0 switching fabric
module manual
(2) Console port (CONSOLE)
Specification
40 × 256 × 298 mm (1.57 × 10.08 × 11.73 in)
48 W to 65 W
1.71 kg (3.77 lb)
Supported
RJ-45
1 console port
Operating: 0°C to 45°C (32°F to 113°F)
Storage: –40°C to +70°C (–40°F to +158°F)
i
BOM: 3123A0R3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for H3C NSQ1FAB04B0
Summary of Contents for H3C NSQ1FAB04B0
-
Page 1: Specifications
H3C NSQ1FAB04B0 switching fabric module manual 1 Card view Figure 1 NSQ1FAB04B0 switching fabric module 2 Specifications Figure 2 Front panel of the NSQ1FAB04B0 (1) Switching fabric module status LED (2) Console port (CONSOLE) Table 1 Switching fabric module specifications Item Specification Dimensions (H ×... - Page 2 M9006 gateway (slot 6 to slot 9) Compatible device model and slot T9006 IPS (slot 6 to slot 9) 3 LEDs The NSQ1FAB04B0 provides LEDs to show the operating status of the switching fabric module. Table 2 LED description RUN LED ALM LED Description Flashing (0.5 Hz)
- Page 3 If no new switching fabric module is to be installed, install a filler panel to prevent dust and ensure good ventilation in the device. 5 Obtaining documentation To access the most up-to-date H3C product documentation on the H3C website at www.h3c.com.hk: Go to http://www.h3c.com.hk/Technical_Documents. Choose the desired product category and model.
