H3C SecPath NSQM2GP24TSSC0 Manual

Manual version: 6PW105-20190725
H3C SecPath NSQM2GP24TSSC0 interface module
1 Identifier
The module identifier NSQM2GP24TSSC0 is in the upper right corner of the front panel.
2 About the module
The NSQM2GP24TSSC0 interface module provides twenty-four 1000BASE-X SFP fiber ports and
four 10GBASE-R SFP+ fiber ports. By using this module with high-performance service modules,
the device is capable of providing security for 100G networks.
3 Specifications

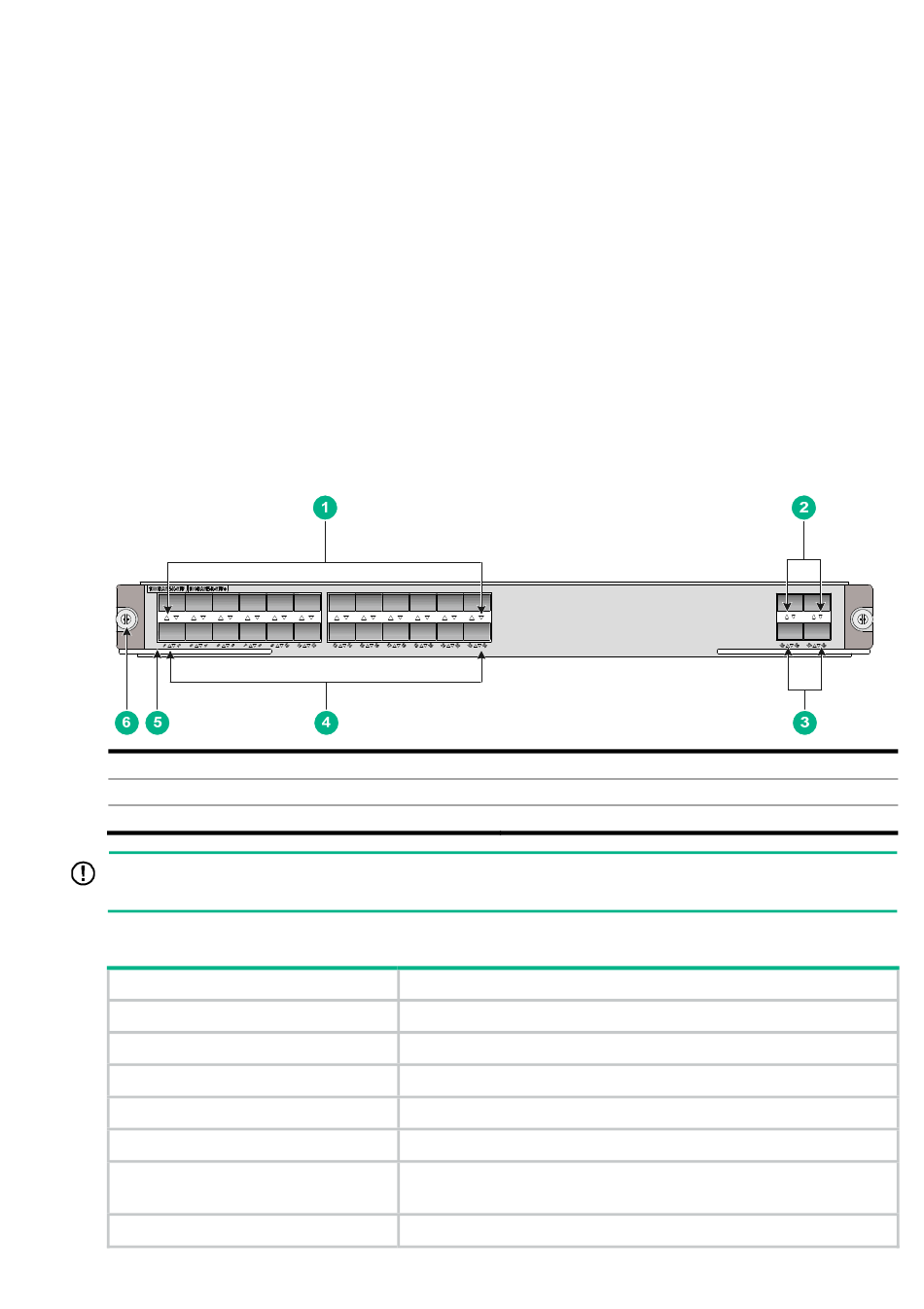

Figure 1 Front panel
(1) 1000BASE-X SFP fiber port LEDs
(3) 10GBASE-R SFP+ fiber ports
(5) Ejector lever
IMPORTANT:
Before installing the module, you must remove the protection cover from the module.
Table 1 Module specifications
Item
Dimensions (H × W × D)
SDRAM (DDR3)
Power consumption
Net weight
Hot swapping
Ports
Connector type
(2) 10GBASE-R SFP+ fiber port LEDs
(4) 1000BASE-X SFP fiber ports
(6) Captive screw
Specification
40.1 × 399.2 × 354.8 mm (1.58 × 15.72 × 13.97 in)
1 GB
27 W to 52 W
2.85 kg (6.28 lb)
Supported
•
24 × 1000BASE-X SFP fiber ports
•
4 × 10GBASE-R SFP+ fiber ports
LC
i
BOM: 3123A1M0
