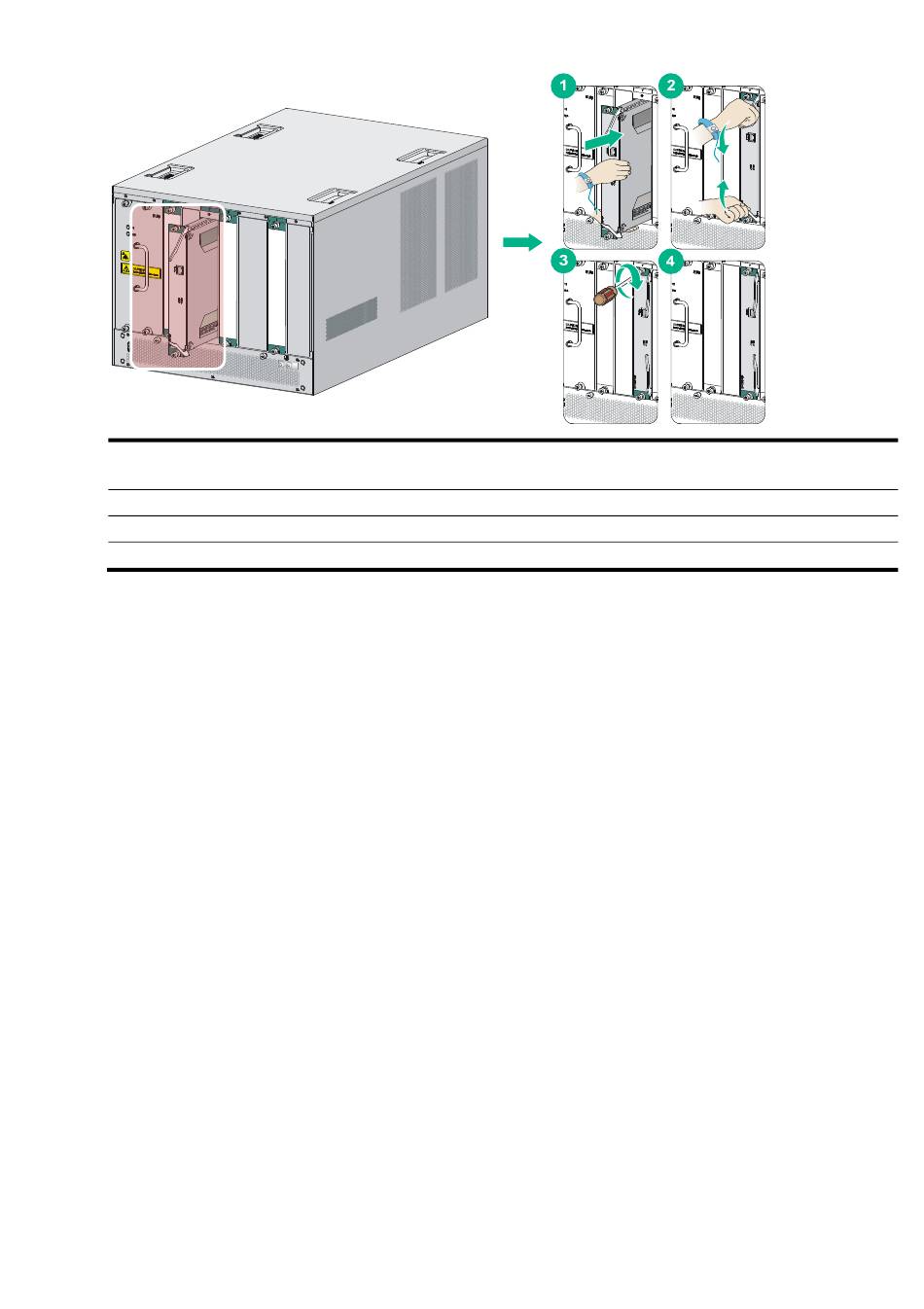

Figure 3 Installing the module
(1) Gently push the module into the slot along the guide rails until the module is in close contact with the
backplane.
(2) Close the ejector levers.
(3) Use a Phillips screwdriver to fasten the captive screws.
(4) Installation is finished.
Removing the module
4.2
1.
Use a Phillips screwdriver to loosen the captive screws on the module until all pressure is
released.
2.
Simultaneously open the ejector levers on the module to separate the module from the
backplane, and pull the module slowly out of the chassis along the guide rails.
3.
Place the module on an anti-static workbench or put it in an anti-static bag, with the component
side facing up.
If you are not to install a new module, install a filler panel in the slot to prevent dust and ensure
good ventilation in the device.
