H3C SecPath NSQ1FAB08D0 Quick Start Manual

Manual version: 6PW107-20210319
H3C SecPath NSQ1FAB08D0 switching fabric module
1 Module view
The NSQ1FAB08D0 switching fabric module uses product code NSQM1FAB08D0.

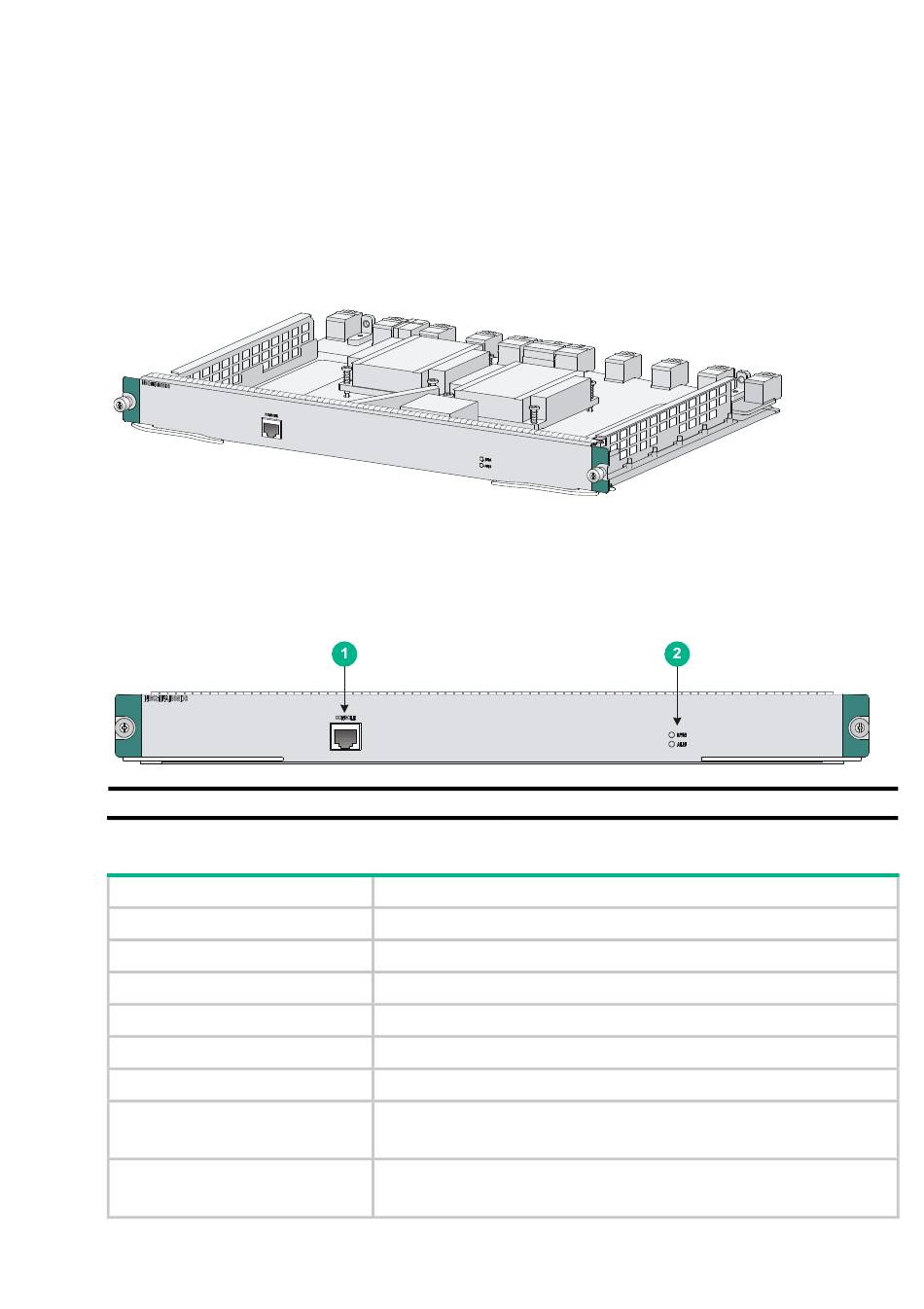

Figure 1 NSQ1FAB08D0 switching fabric module
2 Specifications
Figure 2 Front panel
(1) Console port (CONSOLE)
Table 1 Module specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Ports
Ambient temperature
Ambient humidity
(2) Status LEDs
Specification
40 × 426 × 298 mm (1.57 × 16.77 × 11.73 in)
101 W to 135 W
2.77 kg (6.11 lb)
Supported
RJ-45
1 × console port
Operating: 0°C to 45°C (32°F to 113°F)
Storage: –40°C to +70°C (–40°F to +158°F)
Operating: 10% RH to 95% RH, noncondensing
Storage: 5% RH to 95% RH, noncondensing
i
BOM: 3123A0R2
