H3C NSQ1TGS32SF0 interface module
1 Module view

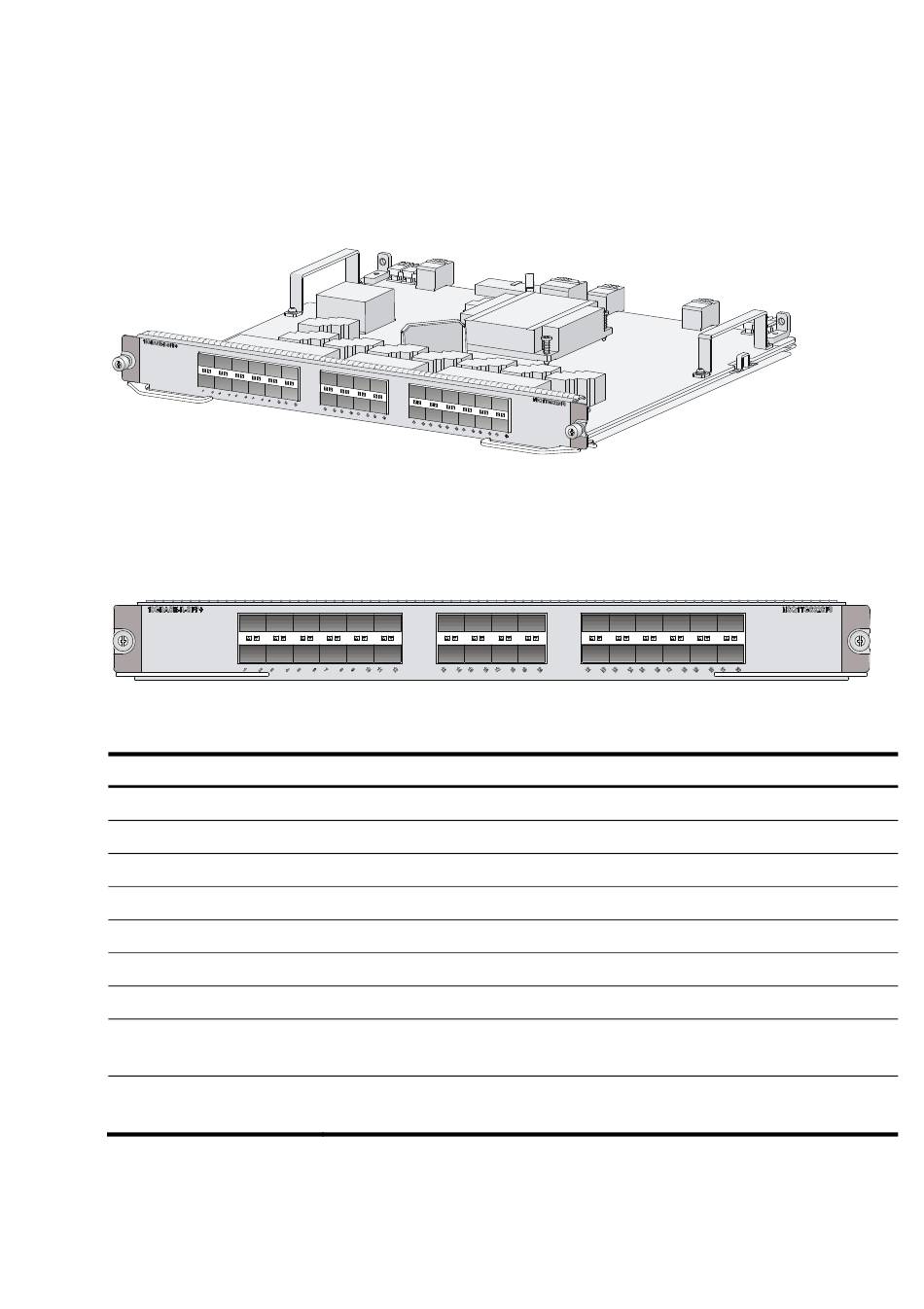

Figure 1 NSQ1TGS32SF0 interface module
2 Specifications
Figure 2 Front panel
Table 1 Module specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Interfaces
Interface transmission rate
Ambient temperature
Ambient humidity
Specification
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)
126 W to 170 W
3.45 kg (7.61 lb)
Supported
LC
32 10-GE-SFP+ ports
10/1 Gbps
•
Operating: 0°C to 45°C (32°F to 1 13°F)
•
Storage: –40°C to +70°C (–40°F to +158°F)
•
Operating: 10% RH to 95% RH, noncondensing
•
Storage: 5% RH to 95% RH, noncondensing
i
BOM:3123A0R9
Advertisement
Table of Contents
Related Manuals for H3C NSQ1TGS32SF0
Summary of Contents for H3C NSQ1TGS32SF0
- Page 1 Manual version: 6PW105-20190725 BOM:3123A0R9 H3C NSQ1TGS32SF0 interface module 1 Module view Figure 1 NSQ1TGS32SF0 interface module 2 Specifications Figure 2 Front panel Table 1 Module specifications Item Specification Dimensions (H × W × D) 40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)
- Page 2 Manual version: 6PW105-20190725 BOM:3123A0R9 Item Specification • M9006 gateway (slot 2 to slot 5) • M9010 gateway (slot 0 to slot 3 and slot 6 to slot 9) • M9014 gateway (slot 0 to slot 5 and slot 8 to slot 13) Compatible device models and slots •...
- Page 3 Manual version: 6PW105-20190725 BOM:3123A0R9 4 Installing and removing the module CAUTION: Wear a reliably-grounded ESD wrist strap when installing or removing the module. • Do not touch the components on the module. • 4.1 Installing the module Face the front panel of the device. Identify the slot to install the module, and remove the filler panel from the slot.
- Page 4 If you are not to install a new module, install a filler panel in the slot to prevent dust and ensure good ventilation in the device. Copyright © 2019 New H3C Technologies Co., Ltd. The information in this document is subject to change without notice.
